Islip Flow Controls (IFC) products

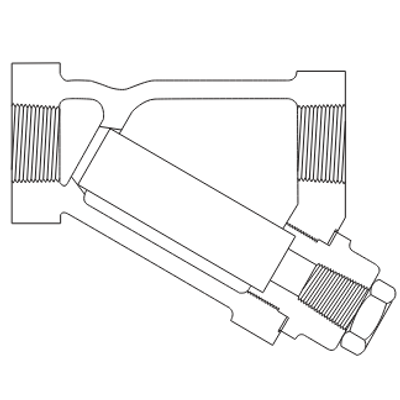

Cast Y Strainers - Cast Iron Threaded

IFC - Model Y250TIT - Cast Iron Threaded Strainer

Strainers are equipped with threaded (N.P.T.) inlet/outlet connections. Strainer body meets ASME B16.4. IFC series Y250TIT strainers equipped with threaded cover cap that utilize a flat gasket seal. IFC series Y250TIB strainers equipped with bolted cover flange that utilize a flat gasket seal. Upper and lower machined seats. 304 SS mesh screens are standard. Perforated plate screens are optional. Drain/Blow-off connection furnished with plug as standard. Generous screen area and properly proportioned straining chamber to minimize initial pressure drop while maximizing time between cleanings.

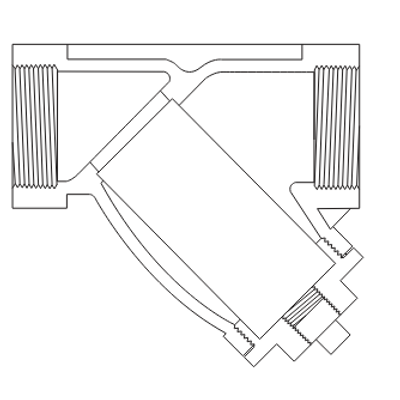

Cast Y Strainers - Cast Bronze Threaded and Sweat

IFC - Model Y125TBT - Cast Bronze Threaded and Sweat Strainer

Design Features: Strainers are available with threaded (N.P.T.) or sweat (Class 125 Lb.Only) inlet/outlet connections. Strainer body meets ASME B16.15. Strainers equipped with threaded cover cap that utilize a flat gasket seal. Upper and lower machined seats. 304 SS mesh screens are standard. Perforated plate screens are optional. Drain/Blow-off connection furnished with plug as standard. Generous screen area and properly proportioned straining chamber to minimize initial pressure drop while maximizing time between cleanings.

IFC - Model Y125SBT - Cast Bronze Threaded and Sweat Strainer

IFC - Model Y250TBT - Cast Bronze Threaded and Sweat Strainer

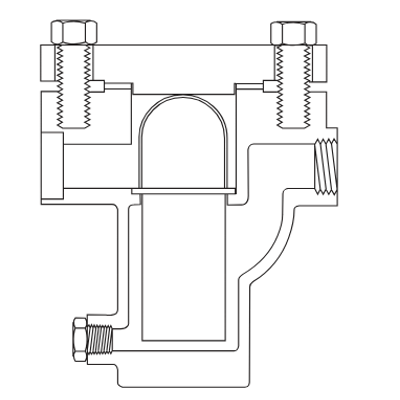

Cast Basket Strainers - Threaded and Socket Weld

IFC - Model B125TIR2 - Threaded and Socket Weld Strainer

Design Features: Strainers are equipped with threaded (NPT) or socket weld inlet/outlet connections. Strainer body meets applicable ASME Standard. IFC series B300 strainers equipped with bolted cover flanges that utilize a flat gasket seal. IFC series B125 strainers equipped with a rotating cover that utilizes an O-Ring seal. Strainer cover flanges are designed in accordance with ASME Section VIII, Div. 1 Appendix II and/or ASME B16.5.

IFC - Model B300TSB2 - Threaded and Socket Weld Strainer

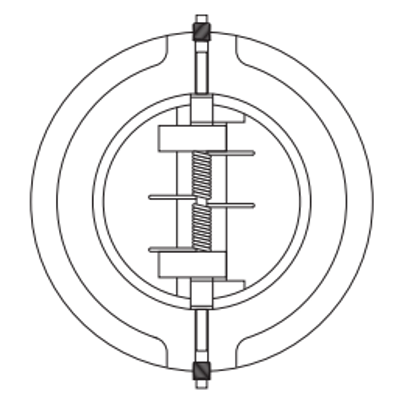

Dual Disc Check Valves - Cast Iron Dual Disc

IFC - Model DC125WIBB - Cast Iron Dual Disc Valve

Design Features: Available in wafer body style. Suitable for installation between FF or RF flanges. Valve sizes 6” and larger are complete with a valve lifting lug tap. Teflon thrust washers are standard. Available with resilient (Buna-N or EPDM) seats. Seat design lifts then swings discs to minimize seat wear. Body meets ASME B16.1, space API 594. Testing is performed in accordance with API 598. All valves are equipped with independent springs that optimize the closing rates of each valve plate, while minimizing spring stress.

Dual Disc Check Valves - Retainerless Dual Disc

IFC - Model DR - Retainerless Dual Disc Valves

Design Features: Retainerless design meets industry fugitive emissions control requirements. This design eliminates the potential leak path to atmosphere associated with competitors’ valves with threaded retaining plugs. Available in wafer, lug and double flanged body styles. Suitable for installation between RF or RTJ (Optional) flanges. Valve sizes 6” and larger are supplied with a valve lifting lug. Upper and lower stainless steel thrust washers are standard. Available with resilient or metal-to-metal seats. Seat design lifts then swings disc to minimize seat wear. Discs are equipped with shock bumpers to minimize stress in hinge pins. Body meets ASME B16.34 and API 598.

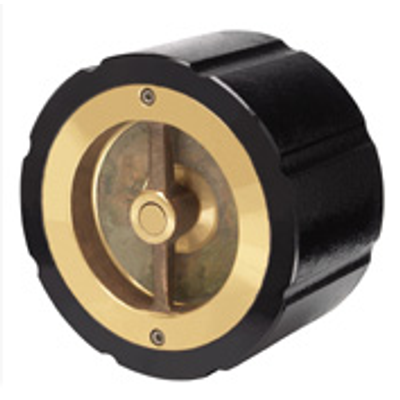

Silent Non-Slam Check Valves - Cast Iron Silent Wafer

IFC - Model SC125WIBM - Cast Iron Silent Wafer Valve

Design Features: Available in wafer body style. Suitable for installation between FF flanges only. May be installed between ANSI Class 125/250 and 150/300 flanges. (Sizes 8” and smaller only). Available with aluminum bronze or 316 SS trim. Standard metal to metal seating. Optional resilient seats. Body meets ASME B16.1. Testing is performed in accordance with API 598.
