isoplus Piping Systems A/S products

isowell® consists of a flexible, spiral corrugated HYDRA stainless-steel tube, longitudinal seam-welded, Material No. 1.4404. Technical delivery conditions and material according to EN 10028-7.

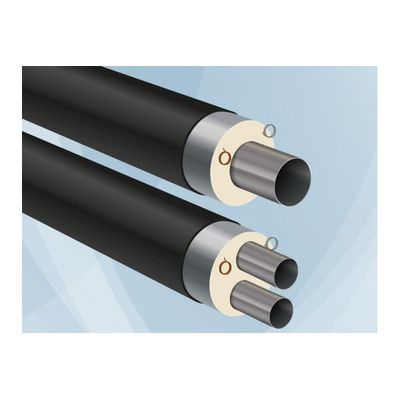

Pre-insulated steel pipe is a solid and efficient solution for district heating and cooling as well as industrial applications that require high temperature and pressure resistant pipes.

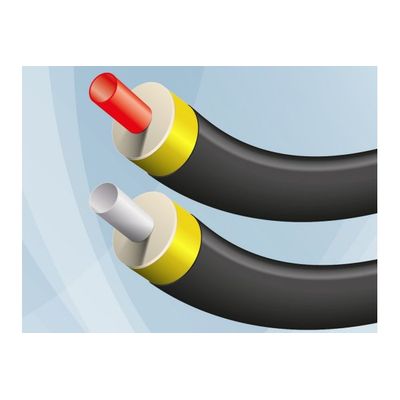

isopex pipe is a fixed sandwich structure that consists of pex carrier pipe, flexible polyurethane insulation and a PE-LLD jacket pipe. Polyurethane insulation and PE-LLD jacket pipe provide maximum flexibility, low installation costs and smooth installation without major requirements to the fitter. isopex is available for district heating (max 6 or 10 bar operating pressure) and internal domestic pipe mains (max 10 bar operating pressure).

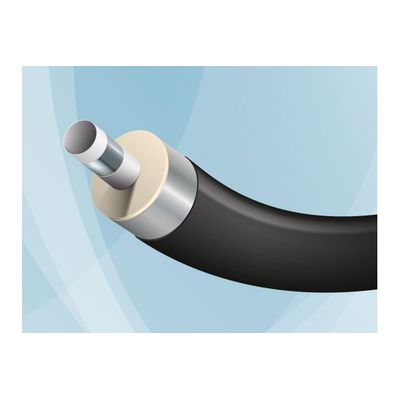

Pre-insulated isoalupex is a bonded piping system. The pipe consists of a multi-layer pex-alupex carrier pipe and a PE-LLD jacket pipe. A flexible layer of polyurethane foam bonds them together into a fixed sandwich structure. The flexible insulation and the PE-LLD jacket pipe provide maximum flexibility, while the multi-layer pipe is dimensionally stable during installation. The pipe is therefore easily adaptable during installation of branch lines, making installation fast and efficient. The carrier pipe is protected against oxygen and water diffusion. The integrated aluminium diffusion barrier between jacket pipe and polyurethane foam ensures optimal insulation and low heat loss throughout the service life of the system with lambda values 0.0225 W/m°C.

Pre-insulated isoalupex is a bonded piping system. The pipe consists of a multi-layer pex-alupex carrier pipe and a PE-LLD jacket pipe. A flexible layer of polyurethane foam bonds them together into a fixed sandwich structure. The flexible insulation and the PE-LLD jacket pipe provide maximum flexibility, while the multi-layer pipe is dimensionally stable during installation. The pipe is therefore easily adaptable during installation of branch lines, making installation fast and efficient. The carrier pipe is protected against oxygen and water diffusion. The integrated aluminium diffusion barrier between jacket pipe and polyurethane foam ensures optimal insulation and low heat loss throughout the service life of the system with lambda values 0.0225 W/m°C.
