Italmanometri s.r.l. products

Pressure gauges for all non-corrosive fluids at temperatures between -20 and +80 °C, compatible with copper and its alloys (always indicate the utilized fluid). Precision amplifer movement in brass. Dial in stove-enamelled aluminium.Pressure gauge parts: – Bourdon tube in copper alloy for pressure ratings from -1 to 40 bar. – spiral tube in copper alloy for pressure ratings from 50 to 1,000 bar.Welds in tin alloy. Protection degree Ip 32. Particularly suitable for compressors, pressure reducers, pumps and any other use in the plant and industrial air-operating sector.

Thermometers completely in stainless steel for any kind of industrial applications; they are suitable for chemical, pharmaceutical and food industry and in any hard conditions with corrosive substances. They are formed by a stailess steel tube in which there is a bimetal helical spiral that gets deformed under temperature variations. DIAL SIZE (DS): mm 80 – 100 – 150. CASE AND RING: AISI 304 stainless steel with bayonet clutch Range: from – 50/50 to 0/500 °C.

The bimetal thermometers are suitable where ambient corrosion is a major concern and can be used in food, beverage, pharmaceutical, chemical industries. Suitable for the outside installation thanks to the stainless steel case. They are available as: Ø60mm; Ø80mm; Ø100mm; Ø150mm. Ø200mm.

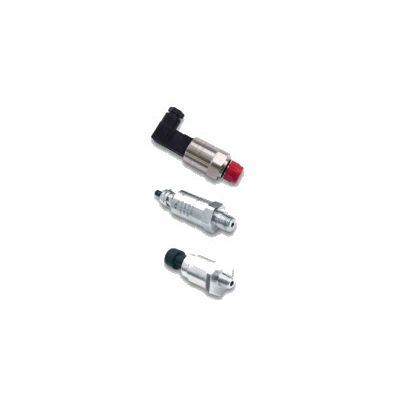

MERIDIAN PT1200 series of pressure transmitters feature high quality, high stability, small size, low weight, compact structure, low cost and mass production. The products are widely used to measure pressure of air compressors, auto engines, air conditioning equipment, hydraulic equipment. Stainless   steel   housing   are   ideal for  industrial environment. Pressure sensing elements are selected from well known international brands. The   products   have   been   approved   with   CE, intrinsically safe, and explosion-proof certificates. Non-polar two-wire current and three-wire voltage output are provided.

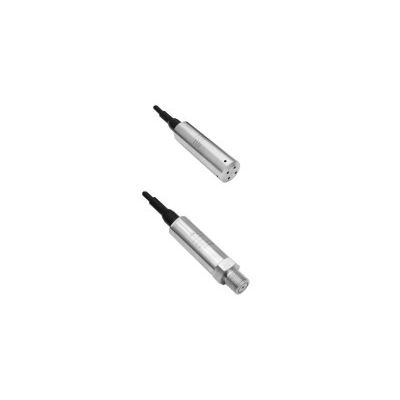

CS-PT400L series of level transmitter feature reliable and highly accurate liquid level measurement for water, diesel and gasoline and mild corrosive liquid. This series adopt stainless steel housing, high performance sensor, and ASIC to ensure a wide range of applications.
Vented inside cable are provided as air pressure reference. The products have been approved with intrinsic safety certificate, explosion proof certificate and CE certificate.

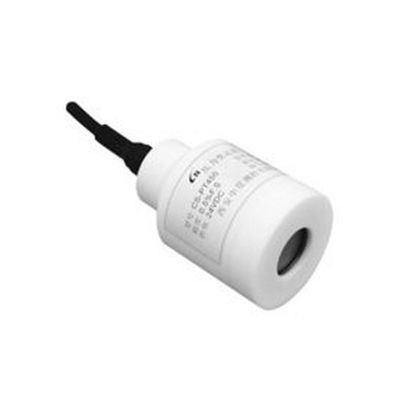

For sea water, dirty water, oil, solvents. CS-PT400-WH are level sensors with special structures for specific applications. The characteristics of the products are: high precision, small size, stability, resistance to abrasion, oil, acids and alkalis.

For corrosive liquids and high temperatures. It is a highly reliable product of high stability and precision. It is equipped with titanium and Teflon case and ceramic capacitive sensor, Asic and ventilated cable resistant to abrasion, oils, acids, alkalis and other corrosive chemical elements.

The T100 Series temperature transducers, based on high quality thermal resistances, are characterized by their high stability and precision and can be easily installed to record, control and display the real-time temperature value for gaseous fluids, liquids and solid substances.

2 Pcs full bore ball valve construction: stainless steel cf 8m s (316). Investment casting. Gas threaded ends din 2999. Seats and seals: ptfe + 15% gf o´ring stem: viton. Pn 63. Temp. -25ºc + 180ºc. Manually operated by handle with locking system.
