I.VA.CO. S.R.L. products

The construction of SC blowers is based on the side channel principle. These blowers can operate either as exhauster or compressor fans and are designed for continuous service. Their full die-cast aluminium construction grants maximum robustness and flexible operation. No lubrication is needed since there is no contact between the stator and the rotating parts. SC blowers are equipped with NSK bearings, which are permanently pre-lubricated. Specific silencers help reduce the noise.

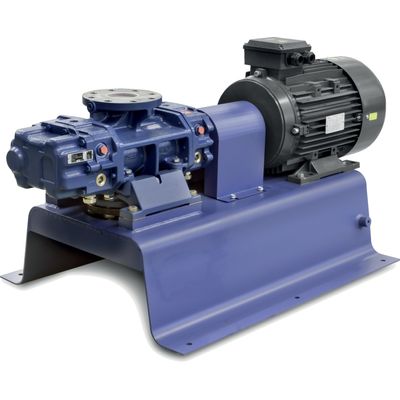

Compressors belonging to RL series are volumetric machines of robust construction having rotors designed with tri-lobe profile to gain the highest efficiency but also reduce the discharge pulsations. Suitable for any application that requires the handling of large air flow, it is possible to achieve either 1 bar max. overpressure or 500 mbar max. in vacuum. Thanks to the V-belt drive, these machines can provide a very wide operating range therefore can be selected to offer the highest effi ciency at the duty point. All units can be equipped with accessories but also with special noise enclosures to comply with the standards and the environment.

OL series oil-lubricated vacuum pumps with oil recirculation are of the blade rotary type, with a rotor supported by bearings and a flanged motor. They are automatically lubricated. Their main features are their heavy construction design, their high performance, reliability and easy maintenance. These pumps can achieve the end vacuum of 2 or 0.5 mbar absolute depending on pump model.

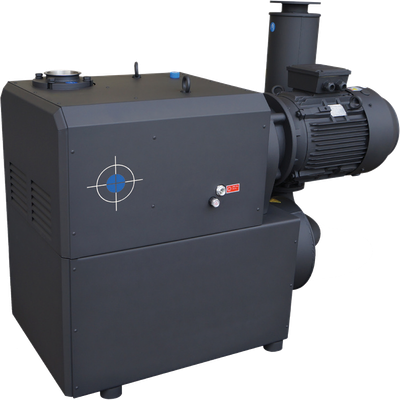

The ICV-ICP series pumps are dry contactless vacuum and compressor pumps with modular constructions consisting of compartments. Pumping and gear chambers are separated by labyrinth seals. When the two claws rotate in opposite direction  the air is sucked into the pumping chamber, compressed and discharged under pressure. In the gear chamber two gears with appropriate oil lubrication are placed for synchronizing the claws rotation. To synchronize the claws’ rotation. A built-in anti-suck back valve installed in the inlet flange will prevent the air from flowing back into the vacuum chamber when the pump is shut down. The pumps are directly driven by a flanged motor through a coupling.

Dry rotary vane vacuum pumps belonging to the DR series are of the blade rotary type, with a rotor supported by bearings, a flanged motor and air cooling. They are suitable to operate without any lubrication. Their main features are their heavy construction design, their easy maintenance and the absence of any oil-fog on the discharge. These pumps can be used in any applications where no deep vacuum is required.

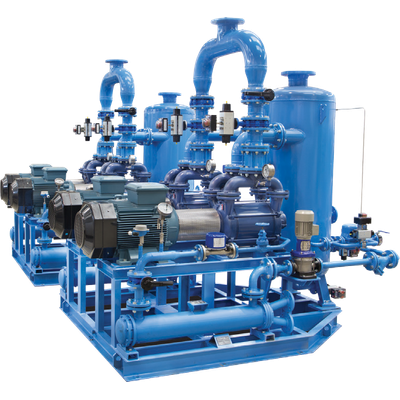

Designed and manufactured to be used in the most critical applications, their main feature is that they are suitable to suck contaminated gas mixtures, aggressive gases and vapors, explosive gases and vapors of any nature down to a conventional end vacuum of 33 mbar absolute. Produced according to the highest quality standards, liquid ring vacuum pumps belonging to the AL series are available in different materials to withstand the various process conditions. The product line offers three solutions: monoblock for those who need compact constructions, with intermediate supporting lantern and bareshaft. The last two version can also meet ATEX requirements.

Designed and manufactured to be used in the most critical applications, their main feature is that they are suitable to suck contaminated gas mixtures, aggressive gases and vapors, explosive gases and vapors of any nature down to a conventional end vacuum of 33 mbar absolute. Produced according to the highest quality standards, liquid ring vacuum pumps belonging to the AL series are available in different materials to withstand the various process conditions. The product line offers three solutions: monoblock  for those who need compact constructions, with intermediate supporting lantern and bareshaft. The last two version can also meet ATEX requirements.

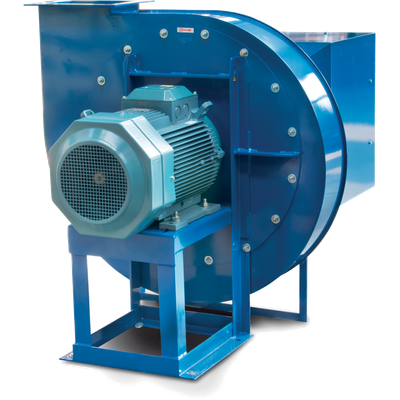

I.VA.CO. fans division consists of a team of qualified technicians with wide and relevant experience, who can design special industrial fans using the most updated technologies. Heavy industrial production. Fans attained with modern equipment.

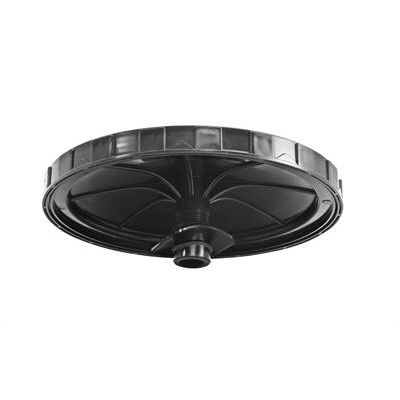

I.VA.CO. membrane diffusers have a rubber surface with micro holes that act like a valve: they dilate to let the air flow out and close back up once the flow is interrupted, preventing water from entering.

I.VA.CO. membrane diffusers have a rubber surface with micro holes that act like a valve: they dilate to let the air flow out and close back up once the flow is interrupted, preventing water from entering.
