Ivarssons i Metsjo AB products

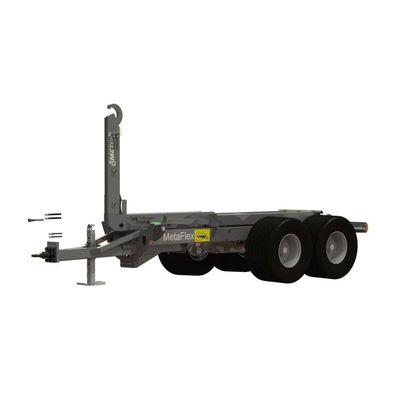

Item number 128439. Container standards SIS 3021, Hook height 1450mm. Container lengths 4000mm - 4500 mm. Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle. Flange width 1850 mm. Coated according to KTL-method, black. Rim connection 161x205x6 open nuts. Hydraulic brakes: on all drums, According VVFS 2003:20. Manually adjusted brake arms. Maximum hydraulic pressure 110 bar. Cover sheets stop dirt entering the brake drums. Hydraulic outlets needed on tractor: 2 DA + free return+ brakes, el. system 12 Volt.

Item number 137166. Container standards SIS 3021, Hook height 1450mm. Container lengths 4000mm - 4500 mm. Crane atachment type Moheda M50. Supporting legs with a double-acting hydraulic function with a hydraulic lock. Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle. Flange width 1850 mm. Coated according to KTL-method, black. Rim connection 161x205x6 open nuts. Hydraulic brakes: on all drums, According VVFS 2003:20. Manually adjusted brake arms. Maximum hydraulic pressure 110 bar. Cover sheets stop dirt entering the brake drums. Hydraulic outlets needed on tractor: 2 DA + free return+ brakes, el. system 12 Volt.

Hook height 1450mm, Contanier standard SIS 3021. Heavy duty Steel 450 Brinell: Container bed 3,2 mm and sides 2 mm. The bed sides are flanged 2x45". Automatic tailgate - opens automatically when the body is tipped. The opening can be delayed. Removable upper part of the front wall 450 mm. Height = loading area 2 500mm (with tires diameter 1400 total H of the trailer is 4m). Conical body 100mm.

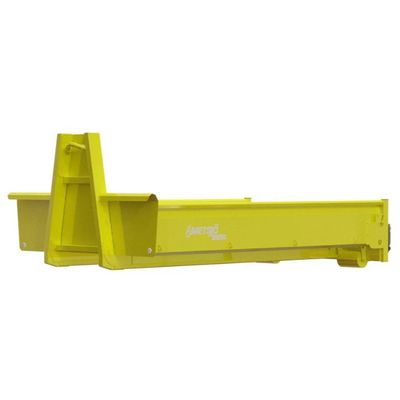

Hook height 1450mm, Contanier standard SIS 3021. The bed sides are flanged 2x45". Heavy duty Steel 450 Brinell: Container bed 3,2 mm and sides 3,2 mm. Purpose: Sand. Hydraulic earth and gravel tailgate H 300 mm. Hooks for load securing 1,5 tons inside/outside. The hoses are mounted on the hook (requiers a DA hydr.outlet on the hook-lifts hook). Consols for mounting different tailgates. Consols for mounting extensions for grain transport. Colour yellow, painted according Metsjö standards. Weight 920 kg.

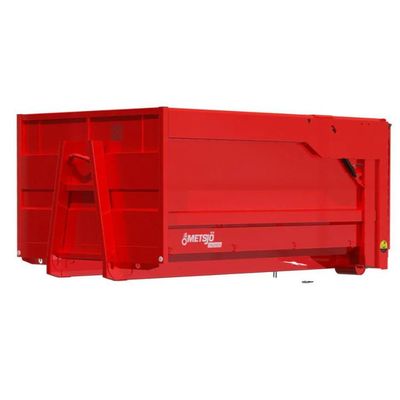

Hook height 1450mm, Contanier standard SIS 3021. Heavy duty Steel 450 Brinell: Container bed 3,2 mm and sides 2 mm. Hydraulic tailgate H1750, high opening angle 130". Drop-proof. Perforated sight window 500x2000 with cover plate. Hooks for load securing - outside. The hoses are mounted on the hook (requiers a DA hydr.outlet on the hook-lifts hook). Colour red, painted according Metsjö standards. Weight 1 840 kg.
