J. K. Foundry Engineers (JKFE) products

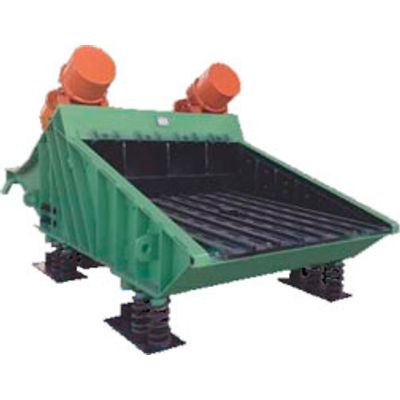

JKFE LHV Range with integral shakeout from 1-3 TPH. Vibraclaim series silicate co2 reclaim system is developed for re use the sand and cut down new sand cost. JKFE range of mechanical attrition units are available with inbuilt sand classifier for small units 3 - 6 TPH units. for bigger unit sand classifier is a separate module integrated with sand cooler

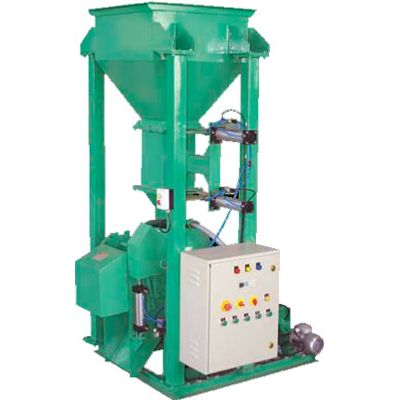

JKFE CHV Range with integral Shakeout from 6-10 tph. Vibraclaim series silicate co2 reclaim system is developed for re use the sand and cut down new sand cost. JKFE range of mechanical attrition units are available with inbuilt sand classifier for small units 3 - 6 TPH units. for bigger unit sand classifier is a separate module integrated with sand cooler.

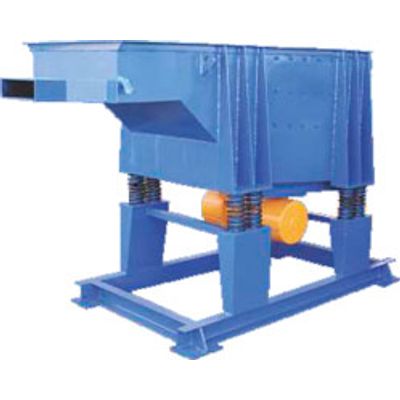

Low deck LD - CR Model: Range from 1 - 3 tph.

Low deck LLD Model: Range from 6 - 12 tph. Replaceable Wear Plates Allows Easy Maintenance.

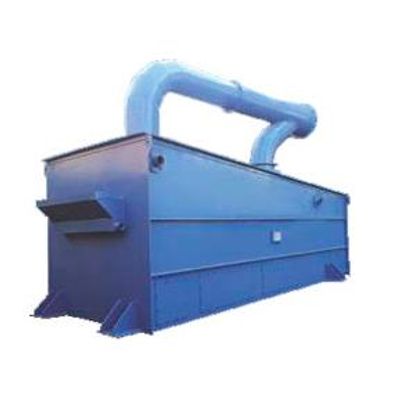

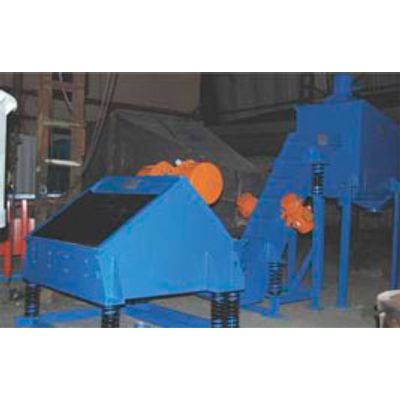

High level reclamation system is supplied with separate shake out machine, lump reducer, belt conveyor, fluidized bed cooler /classifier and other conveying equipments.  Up to 24 TPH throughput capabilities.

FTL is the UK’s leading manufacturer of high intensity green sand mixers, typified by the 2000 Series. These PLC controlled mixers employ a combination of rotating pan, low speed stirrer and high speed agitator to thoroughly mix the sand, water, clay and other additions. The pan and walls are fitted with removable bonded rubber wear resistant liners. Other features include a central hydraulically operated bottom-discharge door, with rapid discharge plough to empty the mixer, minimising cycle times. Automatic centralised lubrications ensure even distribution of lubricant to all parts of the mixer. A wide range of sizes are available with the FTL 2000 Series, from 10 to 100 tph.
