Jay R. Smith Mfg. Co. products

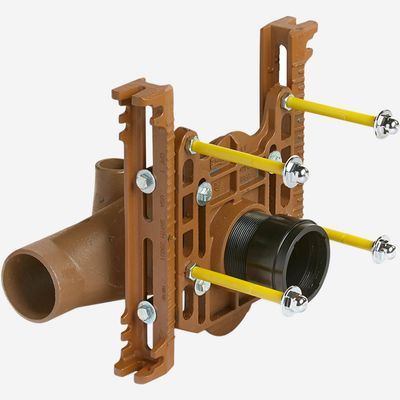

The Quarterback Water Closet Support from Jay R. Smith Mfg. Co. is designed for a better fit in less chase area. Newly designed legs provide easy access to the securing bolts of the faceplate allowing for height adjustment even with adjacent wall framing. The legs also have four additional securing slots, which can accommodate accessories to aid in installation, especially for pre-fabrication.

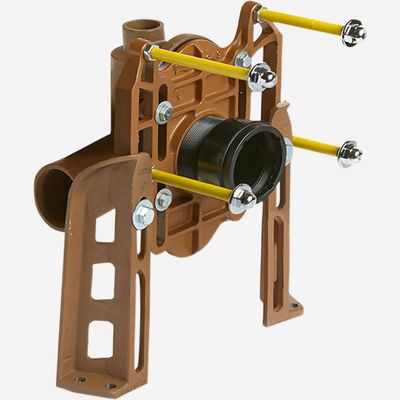

Deep rough-in, adjustable fixture supports for elevated siphon jet water closets for wheelchair users featuring horizontal fittings. Smith No. 0200 series adjustable shallow rough-in support for one-pour floor construction.Where two-pour floor construction is required, Smith No. 0100 series adjustable deep rough-in support may be used. Where furred wall space is not sufficient for the adjustable series, Smith “compact” No. 0400 series may be used.

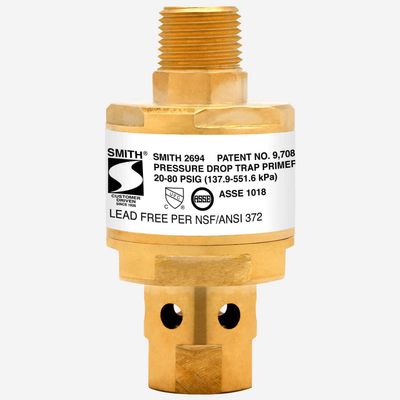

Trap-Defender is a pressure drop-activated automatic trap primer designed to be connected to any potable cold water line. It is automatically activated when a pressure drop as low as 3 PSI occurs. The control valve releases water into the floor drain’s P-trap to maintain a seal.

Our floor mounted (Pro-Set) high back lavatory supports are fabricated with epoxy coated heavy gauge steel uprights welded to pre-drilled steel bases. Adjustable coated cast iron sleeves are tightened around the uprights when height specifications are met. These sleeves are internally threaded to accept horizontal adjustment of the threaded arms and arm lock nuts. To ensure that the lavatory is solidly affixed to the concealed support arms, our Sure-set locking device easily adjusts from underneath the lavatory to grip the lavatory`s inner wall while leveling screws ensure a precise installation.

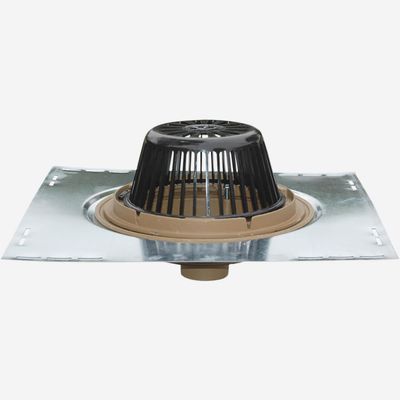

Installed entirely from above deck on flat roofs of any construction, our labor-saving roof drain simplifies installation, saving steps and the need for a second technician. This 15-1/4" (390) Duco coated cast iron drain will quickly clear large runoff accumulations. The combined flashing clamp and gravel stop protects drain lines from debris and securely grips flashing and roofing materials without puncturing for a leak proof installation. The drain is protected by a low profile, polyethylene dome strainer.

Duco Cast Iron Body with attached Deck Plate with Securing Holes, combined Flashing Clamp and Gravel Stop with Polyethylene Dome.

Designed for installation in showers, kitchens and other light traffic areas, this versatile floor drain is available in several materials and a variety of round and square strainer heads. Strainers easily adjust from above to the level of adjacent floors to prevent trip or laceration hazards. This drain joins to plumbing through no hub or Speedi-Set® connections.

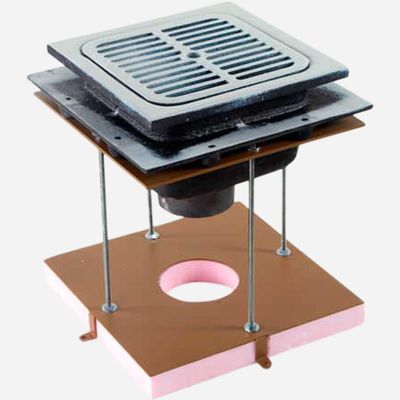

This 12" (305 mm) square floor sink was developed to save contractor installation time and speed construction. The assembly comprises the cast iron sink, acid-resistant coating, a removable foam form, and a carriage. This sink is topped with a nickel bronze cover and protects drain lines with its aluminum dome bottom strainer.

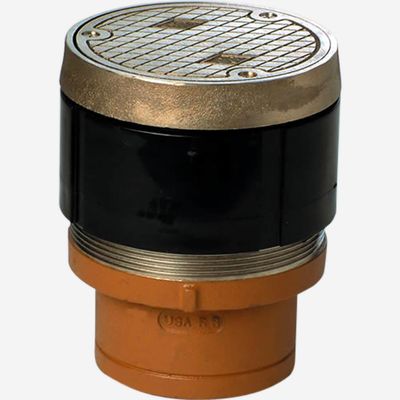

This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings are installed. It is constructed of Duco coated cast iron with a secured 5-3/4” (145) diam. nickel bronze top for finished floors bearing foot and medium load wheeled traffic.

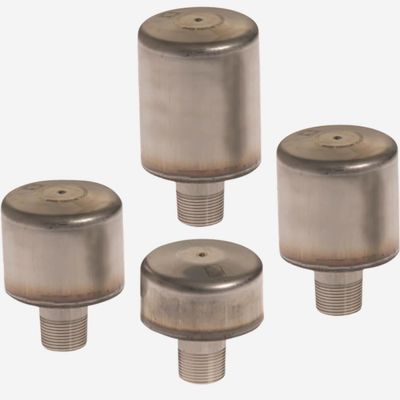

Available in 3/4" and 1" connection sizes and multiple capacities, these water hammer arrestors control the destructive shock of water hammer and reduce pressure in the piping system to safe levels. These Hydrotols arrestors are designed for installation in an upright position. Correctly sized units can be placed at specific locations throughout the water piping system. Hydrotrols are pre-charged with nitrogen and permanently sealed at the factory. All hydrotrols are constructed entirely of stainless steel.
