The SuperBlower filter is an under- and over-pressure filter designed to run in constant operation. Constructed as a self-supporting sheet metal construction in high tensile steel modules. Process air is passed into a filter chamber, where the larger particles settle to the bottom of the filter, from where the air is passed through filter bags which retain the residual particles. The modular SuperBlower filter is a flexible design which can be adapted to any given task in terms of capacity and function. In terms of capacity, dimensioning of filter height and the number of filter bags; in terms of function, the choice between different types of inlet, cleaning systems and discharge systems.

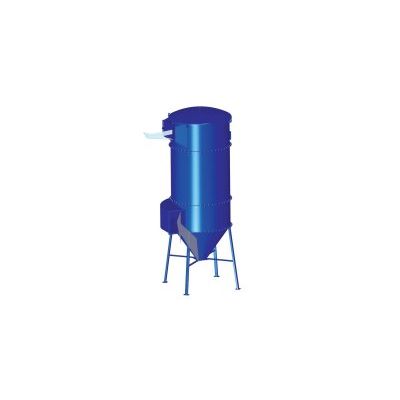

The DustStorm filter is an under- and over-pressure filter, designed for continuous operation. Constructed as a self-supporting sheet metal construction. The round design ensures great strength combined with low weight.

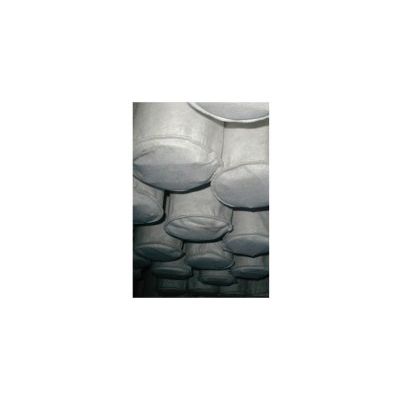

JKF’s modular dust filters are bag filters. Modular filters can have up to 30 single or double modules, and with various discharge systems: silo, blow through, bag emptying, rotary valve, screw or chain. They are made of 1.25 and 2 mm galvanised sheet metal. The standard filter medium is PE40/PE25 bags. The filters are available with different bag lengths, depending on requirements.

Silo filter type PL and PLD is a bag filter. The filter is used on a flat silo top so that the contaminated air flows directly against the underside of the bag bottom and up through the bags for separation.

Blow through filter types L and LD are bag filters. They are used for extraction from minor applications, max. 4 HDL modules. The filter has automatic emptying. Emptying is achieved using a secondary fan which extracts the material. The secondary fan represents a suction force of approx. 25% of the primary fan`s air volume

Rotary valves type JK-S/JK-EXS are fitted with a 6-bladed rotor with hard-wearing rubber blades bolted to the rotor shaft plate profiles.

Type JK-PS separators are designed to separate solids from carrier air in over- or under-pressure systems. The separator design ensures low pressure loss and unpressurised material separation, making it possible to install the separator directly connected to other equipment, such as compressors and containers. They are able to separate particles greater than 3 mm, but the max. size is governed by the dimensions of the rotor chamber. Rotor blades are fitted with vulkolan rubber blades to ensure a seal between rotor and rotor housing. Operating temperature max. +60°C and min. -10°C.

Type JK-2 JC and JK-3 JC cutters are designed for continuous cutting of plastic and paper strips in cut or endless rolls from edge cutters and roller cutter machines. The cutter chops strips into small pieces, which are easier to transport than long strips, ensuring smooth transport to a collection point or processing.

Combination valve helps reduce extraction plant energy consumption. The valve is fitted after the filter clean air discharge. Return air from the filter can either be fed back to the production area or outdoors via the combination valve.

JKF can supply filters for most industry sectors where manufacturing processes generate dust, chips and dirt to be extracted and filtered. Examples: Woodworking, Iron and metal industries, Surface treatment, Sandblasting, Corn, seed and feeds, Cement and concrete, Power generation, Insulation manufacturing, Packaging manufacturing, Recycling industries.
