Bale Size: 24" x 16" x Variable. Bale Weight: 100#/200#. Cylinder: 4" x 36" - 2.5" Rod. Motor: 5 HP Three. 3/16" Thick Sidewall Construction.

Bale Size: 60" x 30" x 48". Bale Weight: 800 lbs. - OCC. Cylinder: 6" Bore, 3" Rod. Motor: 10 HP TEFC Motor, 208/230/460 Three Phase. 3/16" Thick Sidewall Construction. Manual Bale Eject.

Bale Size: 60" x 30" x 48". Bale Weight: 800 lbs. - 1,000 lbs. - OCC. Cylinder: 6" Bore, 3" Rod. Motor: 10 HP TEFC Motor, 208/230/460, Three Phase. 1/4" Thick Sidewall Construction. Bale Eject Cylinder.

Bale Size: 60" x 30" x 48". Bale Weight: 800 - 1,000 Lbs. - OCC. Cylinder: Twin, 4" Bore, x 36" - 2.5" Rod. Motor: 10 HP TEFC Motor, 208/230/460 Volt, 3 Phase. 1/4" Thick Sidewall Construction.

Bale Size: 60" x 30" x 48". Bale Weight: 800 lbs. - 1,000 lbs. - OCC. Cylinder: 6" Bore, 3" Rod. Motor: 10 HP TEFC Motor, 208/230/460 Three Phase. 1/4" Thick Sidewall Construction.

Bale Size: 60" x 30" x 48". Bale Weight: 800 lbs. - 1,000 lbs. - OCC. Cylinder: Full Penetration, 7" Bore, 4" Rod. Motor: 10 HP TEFC Motor, 208/230/460, Three Phase. 1/4" Thick Sidewall Construction.

Bale Size: 72" x 30" x 48". Bale Weight: 800 - 1,000 lbs. - OCC. Cylinder: 6" Bore, 3" Rod. Motor: 10 HP TEFC Motor, 208/230/460, Three Phase. 1/4" Thick Sidewall Construction.

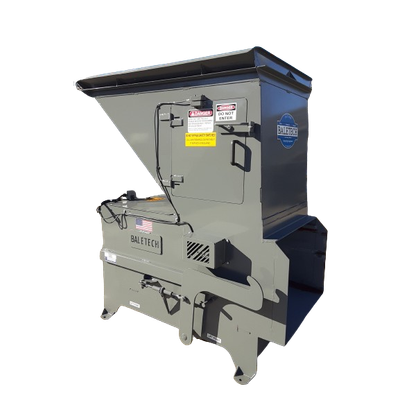

Closed Door Baler. 6" x 3" Rod Main Cylinder. 4" Door Cylinder. 50"L x 42"W Feed Opening. 25 HP TEFC Motor, Standard Voltage. 208/440, 60 Hertz, 3 Phase. 25 Gallon Pump. Cycle Time: 30 Seconds. PLC Logic Controlled. Automatic Bale Full/Fault Indicator Light. Automatic Cycle Eye Operation. Replaceable Wear Liners. 80 Gallon Oil Reservoir, Oil Included. Standard Feed Hopper. Replaceable Shear Blade. 4 Wire Bale Tie. Rear Mounted Power Unit. Air to Oil Heat Exchanger. UL Approved Panel. Color: BALETECH Gray.

Heavy Duty Construction. Dual Level Photo Eye Automatic Operation. Full Penetration Bale Chamber. Low Maintenance Cost. Serrated Shear System. Stroke-Saver Time Cycle Feature. Full Sheet Construction. Large Feed Opening.

Charge Box Capacity: 0.5. Dual 3" Cylinders. Motor: 5 HP TEFC 3-phase.
