Process Analytical Techniques (PAT) have recently achieved great importance in pharmaceutical industries. Most important aims of PAT are to increase productivity, to improve safety as well as to learn about processes.J&M Analytik AG provides individual PAT solutions based
on optical spectroscopy in the UV-, Vis- and NIR-range (190 – 2500 nm). Take advantage today of our 20 years experience in process analytical techniques.

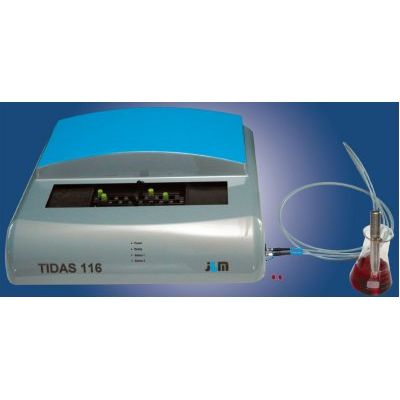

The TIDAS 100/116 fi ber optic spectrometer succeeds of the TIDAS II from J&M. Its innovative technology in combination with a diode array detector enables the adaption of external fi ber optic probes (immersion probes, fl ow cells and so on) and calibration or validation using the built in cuvette holder. The instrument is available with a 16 cuvette changer as TIDAS 116. The data acquisition and control of
the TIDAS 100/116 is achieved by ethernet connection. The TIDAS 100/116 is ideal for the use in process analysis and laborartory applications.

The TIDAS MSP 200 instrument was developed especially for needs in petrography and geochemistry. Depending on the chosen configuration of the instrument you can do reflection as well as fluorescence or polarization analysis on various samples. The J&M MSP 200 is working according the DIN/ISO standard in the data acquisition procedure as well as in the analysis mode. Final histograms display the results in quantitative columns and relative shares. J&M´s MSP 200 systems are used in steel production, petrographic or geochemical laboratories all over the world.

The Q-MACS Trace is a portable system for high sensitive trace gas measurements using different optical  long path cells which depend on the sensitivity required. It bases on the Q-MACS Basic and uses infrared absorption spectroscopy to measure absolute molecular concentrations.

The SIR-2600 Scanning Spectrometer collects spectral data from 0.9 mm to 2.6 pm wavelength range. The SIR2600`s fiber-based system uses a unique design that allows rapid spectral scans over its entire range. It can also provide real-time data from several discrete wavelengths. The compact design allows you to integrate the SIR-2600 easily into OEM applications and online process environments.

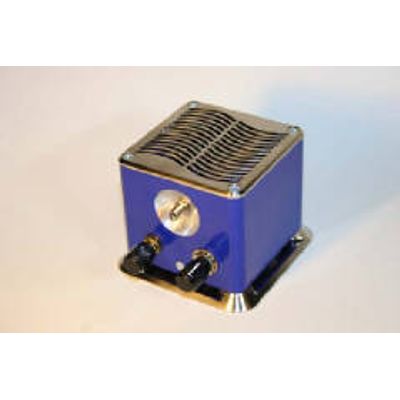

The MODIR is designed to fill the need of light sources for infrared fiber based spectroscopy. The MODIR accomplishes this by a unique optical and thermal design that couples light energy from a silicone Nitride emitter glowing at 1500 °Kelvin. This light source offers many unique features and an ergonomic design. For systems that require optical modulation, an integrated optical shutter can be modulated at frequencies of up to 200hz. The shutter can be driven externally through a 15 pin digital interface. If no external drive is available, the shutter can be driven internally by an integrated adjustable square wave generator. The frequency can be continually adjusted through the control knob on the front panel from .5hz to 200hz.. The digital output for this signal can be taken from the same 15 pin interface and used to synchronize other devices.
