K-Flow Engineering Co., Ltd. products

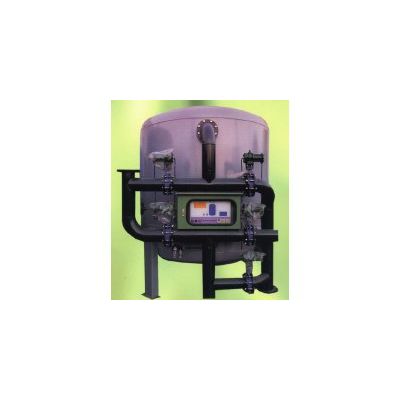

The most efficient and unique designed filtration system for the removal of large quantities of particuate material from water are media filters. To remove debris, algae, sand, and silt from large volumes of water at low pressure loss. Service is minimal for there are no
moving parts. Back-flushing is a quick and efficient method of cleaning.

This is achieved by tapering the element to make a wide fluid path adjacent to the downstream outlet where reat of flow is large, and make a narrow path for fluid which flows in the opposite direction and exits via the outlet at which flow rate is small. Thus, optimum use is made of the downstream side of the casing. Also pressure losses are smaller and the filtering cycle is larger.

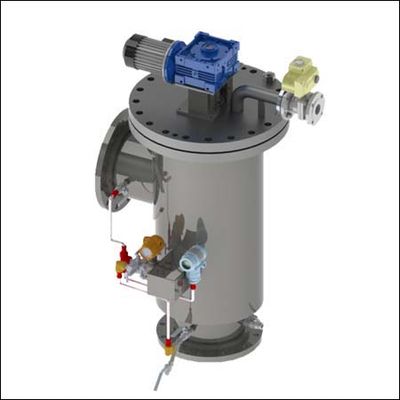

The ABF-L filter is a heavy duty filter which has built-in automatic self-cleaning feature .The filter is designed to achieve filtration in the range of 3500 micron to 200 micron. The ABF-L filter is designed for a maximum flow rate of 700 m3/h ; for a single filter unit,in standard sizes from 3” to 14” .

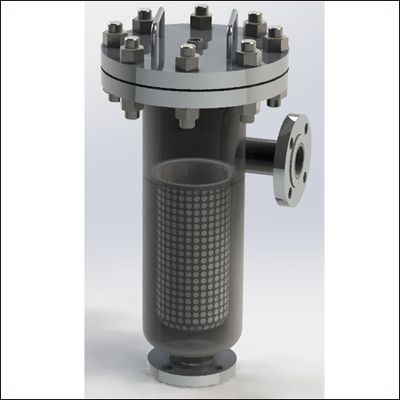

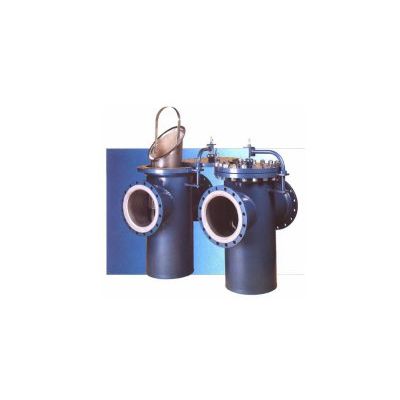

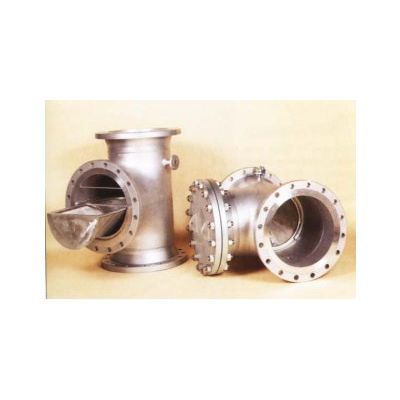

A range of fabricated single basket strainers designed to complement the cast simplex filters for larger pipe sizes.The welded construction allows units to be designed for any application with respect to flow, pressure, materials,design code etc.Vessel configuration and closure can be arranged to suit client preference but a range of standard designs are available as illustrated below.

Size: 1-1/2” ~ 24”. Type: FT1, FT2 & FT3. Material: Carbon Steel, Stainless Steel 304, 316. Pressure / Temperature Rating: ANSI Class 150 ~2500 LB.

ASME Sec. VIII code design, Casted and fabricated. Size: 2” ~ 24”. Material: Carbon steel, stainless steel, alloy steel, Teflon lining, FRP, etc. Pressure / Temperature Rating: ANSI 150 ~ 600 LB. Special material & sizes upon request.

ASME code design with or without stamp. Single or multi-bags type. Material: Housing-Carbon steel, stainless steel 304 / 316 / 316L. Bags- polyester, propylene, Nomex, nylon, cleanable stainless steel, pleated  etc. Size : 3/4” ~ 12” Pressure / Temperature rating – ANSI 150- 300 LB. Special material, pressure / temperature rating, accessories, upon request.

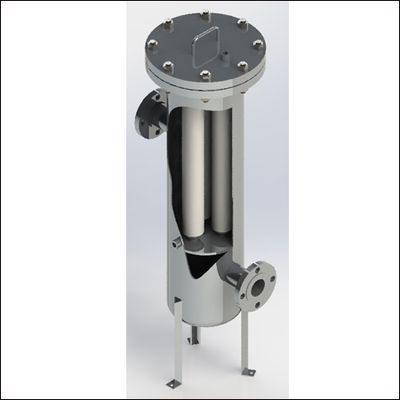

These cartridge filters offer a wide range of flow capacities and contaminant holding capabilities. The housings can accommodate from 1 to 205 cartridges around. All housings can be supplied with ASME code with or without stamp.

For high-efficiency separation of both solid and liquid contaminants. Build to ASME code with stamp. Remove solids larger than 0.5~3 microns. 99% and liquid particles 100% of 8 microns and 99% of 0.5~3 microns. Metering & regulation stations, compressor stations, natural gas plants, Gas distribution systems, etc.

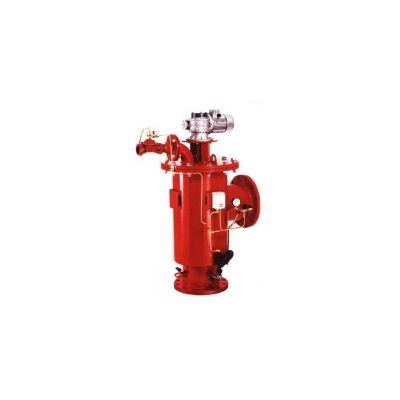

ABF Self-cleaning filter is designed with wedge ( V ) wire screen and self-cleaning by the rotating brush to remove debris on the surface of the screen. It works continuous without interruption and no maintenance and running parts required.
