Kademe Waste Management Technologies Co products

Second hand compact sweeper and truck mounted sweeper, reconstructed under warranty of our company and served to industry. We are currently updating our reconstructed sweeper list for sales would be seen on our page soon.

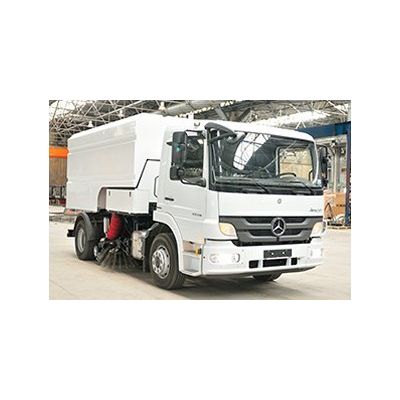

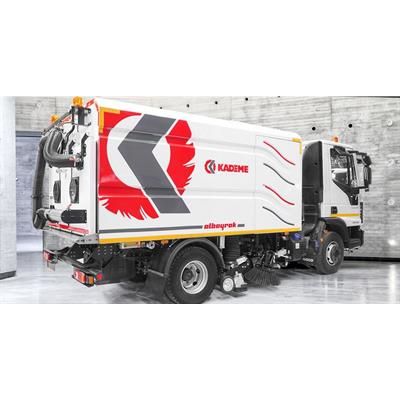

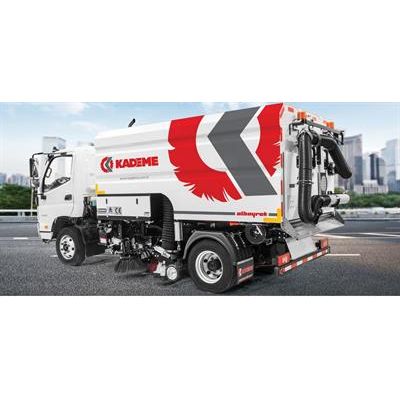

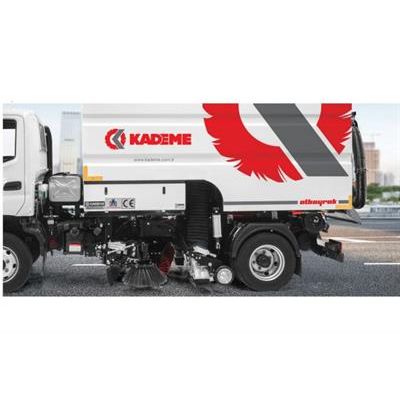

General features of KDM series Vacuum type road sweeper machines with gearbox actuating fan system; Different size of vacuum type road sweepers from 3,5 cubic meters to 9,5 cubic meters can install to suitable truck chassis. Standard 115 Hp Auxiliary Engine generate enough power for vacuuming. 115 Hp Engine can generate necessary power with the optimum rpm with low noise level and fuel saving. A stainless steel water tank with a 10% slope at the bottom of the hopper gives great advantage to slip away garbage. Fiber doors on both size give easy access to the auxiliary engine in case of maintenance or break down. Easy to understand and user friendly control panel give advantage to the operator to control whole system.

General features of KDM series Vacuum type road sweeper machines with gearbox actuating fan system; Different size of vacuum type road sweepers from 3,5 cubic meters to 9,5 cubic meters can install to suitable truck chassis. Standard 115 Hp Auxiliary Engine generate enough power for vacuuming. 115 Hp Engine can generate necessary power with the optimum rpm with low noise level and fuel saving. A stainless steel water tank with a 10% slope at the bottom of the hopper gives great advantage to slip away garbage. Fiber doors on both size give easy access to the auxiliary engine in case of maintenance or break down. Easy to understand and user friendly control panel give advantage to the operator to control whole system.

General features of KDM series Vacuum type road sweeper machines with gearbox actuating fan system; Different size of vacuum type road sweepers from 3,5 cubic meters to 9,5 cubic meters can install to suitable truck chassis. Standard 115 Hp Auxiliary Engine generate enough power for vacuuming. 115 Hp Engine can generate necessary power with the optimum rpm with low noise level and fuel saving. A stainless steel water tank with a 10% slope at the bottom of the hopper gives great advantage to slip away garbage. Fiber doors on both size give easy access to the auxiliary engine in case of maintenance or break down. Easy to understand and user friendly control panel give advantage to the operator to control whole system.

Hopper Volume 4,5m³.  Payload Volume 3,5m³. Payload Capacity 2,0-3,0 Ton Tonnes(Chassis Dependent). Hydraulic Tank 60 LT. Water Tank 1100lt (Stainless Steel AISI304) Integrated with hopper.

Hopper Volume 5,5m³. Payload Volume 5m³. Payload Capacity 2,0-3,0 Ton Tonnes(Chassis Dependent). Hydraulic Tank 60 LT. Water Tank Ø250mm 1300lt (Stainless Steel AISI304) Integrated with hopper.

Capacity: Hopper Volume: 7,5m3. Payload Volume: 7m3. Payload Capacity: 6 Ton/Tonnes(Chassis Dependent). Hydraulic Tank: 60 LT. Water Tank: 1800lt (Stainless Steel AISI304) Integrated with hopper.

Capacity: Hopper Volume: 9,5m3. Payload Volume: 9m3. Payload Capacity: Tonnes(Chassis Dependent). Hydraulic Tank: 60 LT. Water Tank: 2200lt (Stainless Steel AISI304) Integrated with hopper.

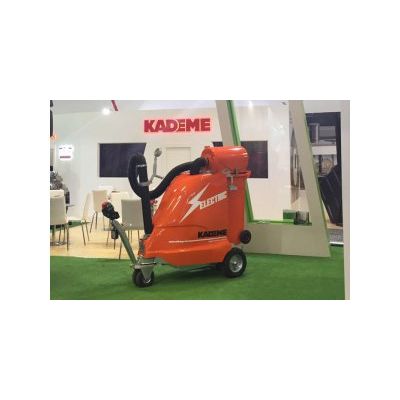

Hopper Volume 240LT Standard Waste Container. Battery 4*6 volt jel Battery / 6*6volt jel Battery (Opsinol). Truction speed Forward: 0-6km/hour - Reverse:0-3km/hour. Weight 230Kg. Charging/Operation Duration Charging 6-8 hours/Operation Duration with full Charged 8-12 hours. Filter Mesh Area 18 m². Impeller Motor 1,5kW. Traction Motor 1,5kW. Power/Kg 6,52 Watts/Kg. Sound Level 55dB (A) at 4mt During Operation

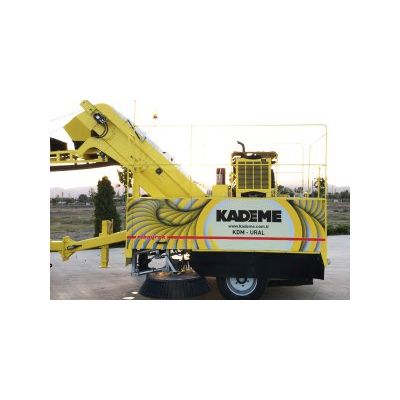

Technical Details: KDM-URAL model is designed for heavy works. It is truck towed type road sweeping machine. It has own engine, hydraulic system and powered by auxiliary engine 74 Kw. Waste Loading Capacity 1,2 ton/min. Adjustable conveyor speed. Discharge Height 3300 – 3500mm. Water tank 1250lt. Sweeping width 3000 – 3500mm. Water pump 20 l / min. 100 bar.
