KATE PMO AG products

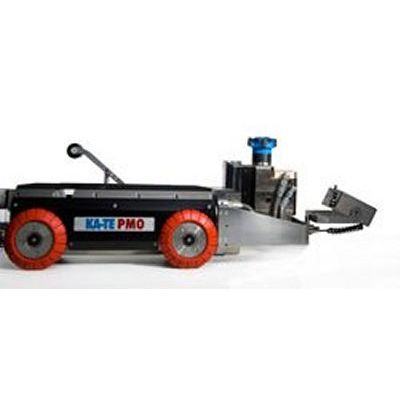

Pipe diameter: 140-300 mm. Length without camera: 750 mm. Grinding power: 3.2 kW. Extension of the milling head: 60 mm. Weight: 40 kg. Pressure rollers for sewers up to DN 250.

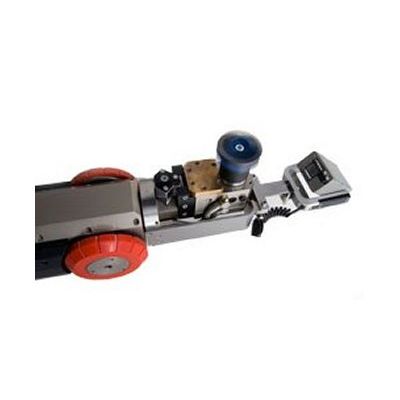

Pipe diameter: 250-800 mm. Length: 865 mm. Grinding power: 5 kW. Extension of the milling head: 110 mm. Weight: 78 kg. Pressure rollers for sewers up to DN 450.

Damage and connections in sewers from DN 150 to 300 can be repaired permanently using the robust and fl exible KA-TE fi ller robot 150/300. Epoxy resin is pressed into pre-ground point using the robot in a replaceable cartridge to create a permanent, positive type connection/repair.

Pipe diameter: 178-300 mm. Length with cartridge: 1030 mm. Cartridge capacity: 1.8 Liter. Rotation of filler head: 670°. Extension of the slides: 80 mm. Weight: 34 kg.

Pipe diameter: 250-800 mm. Length with cartridge: 980 mm. Cartridge capacity: 2.75 Liter. Rotation of filler head: 560°. Extension of the slides: 88 mm. Weight: 54 kg.

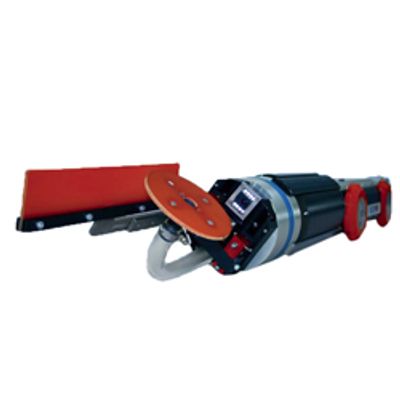

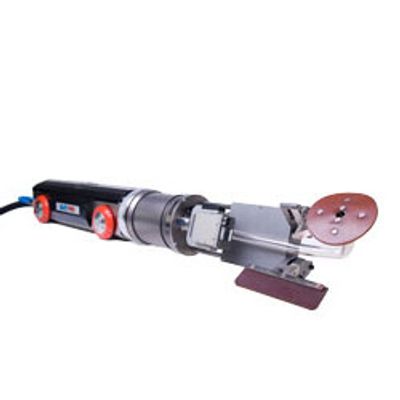

For pipe diameters of: 200-300 mm. Length: 610 mm. Length with robot: 1160 mm. Drive of the shield placing motors: 24V AC. Weight: 11 kg.

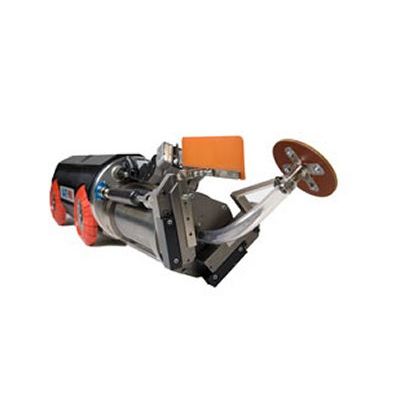

Pipe diameter: 250-800 mm. Length: 560 mm. Length with robot: 1170 mm. Drive of the shield placing motors: 24V AC. Weight: 8 kg.

Shuttering hole diameters 100 mm / 120 mm / 150 mm, Shuttering without holeSocket shuttering for 200-300.

The KA-TE PMO mini tilting camera makes it possible to precisely monitor the work carried out by the KA-TE PMO robot, even in the smallest dimensions. Just like the large tilting camera, this model is equipped with an integrated wiper that cleans the lens and illumination unit.

The water-proof KA-TE PMO tilting camera makes a dependable video transfer possible even during the toughest milling jobs. Throughout the swivelling rang of 200°, all relevant camera positions relevant for driving through and rehabilitating the sewer can be set. The integrated wiper makes the simultaneous cleaning of the lens and the illumination unit possible.
