Kaydon Filtration products

The KP10-2-S-V636 and KP30-001-V636 oil filtration systems support long-term equipment operation by reducing the probability of oil-related failures or unscheduled maintenance due to contaminated oil.

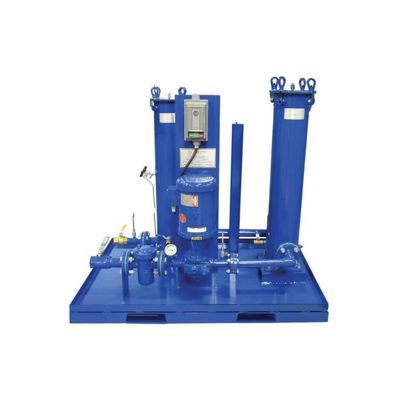

Kaydon 858 series of vacuum dehydration oil conditioning systems keep oils free of water and particulate contamination to achieve long-term, predictable and profitable performance. Separation of water from oil by removing it in the form of water vapor, rather than removing it in the liquid state, is the principle used in Kaydon‘s distillation technology. In this way, water can be removed from oil without regard to the degree of emulsification. This technology allows for water removal in a number of liquids and applications that cannot be addressed through coalescing. Even the most stubborn, stable oil/water emulsions can be separated.

Model 929-300 is different than other dehydration processes as it takes water from the liquid state and transforms it into water vapor so it can easily be removed. In the distillation process, as water is vaporized from oil, oily water foam forms and is drawn into the vacuum pump. As the foam is transported through the condenser by the suction of the vacuum pump, the foam coats the inside of the condenser, reducing heat transfer. In addition, the oily foam releases through the system waste water discharge, requiring further wastewater treatment. Unlike other vacuum systems that do not provide effective foam control and must be constantly monitored,

Kaydon Filtration Vacuum Distillation Systems and Ion Charge Bonding Technology controls acid number.  Acid Number is the most important parameter to use when evaluating the condition of phosphate ester oil. A high Acid Number drastically decreases the fluid’s specific resistance value and this can contribute to wear on your industrial equipment.Our elements work with the 858 Vacuum Distillation System to purity and remove water from oils, thus controlling the acid number and increasing your energy!   By using these elements you will remove water, sediment, and gases with the quality and reliability you deserve.  Learn more specifics about our 858 Vacuum Distillation Elements:

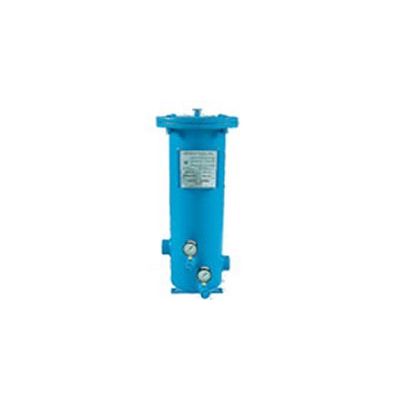

The VKS-2 filtration vessel is all carbon steel construction and designed to the latest edition of the ASME pressure vessel code.  The VKS-2 is designed for in-line flow applications where a heavy-duty design, rugged construction, and long term durability are required. Operating conditions such as repeated shock and vibration do not affect the filtration element or its secure seating. Contact Kaydon with your application information to determine if the VKS-2 is the filtration solution for your application.

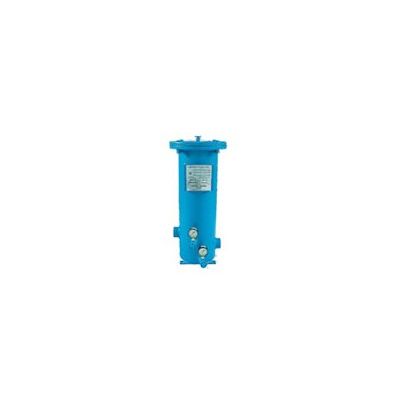

The VKS-6 filtration vessel is all carbon steel construction and designed to the latest edition of the ASME pressure vessel code.  The VKS-6 is designed for in-line flow applications where heavy-duty rugged construction and long term durability are required. Operating conditions such as repeated shock and vibration do not affect the filtration element or its secure seating. Contact Kaydon Filtration with your application information to determine if the VKS-6 is the filtration solution for your application.

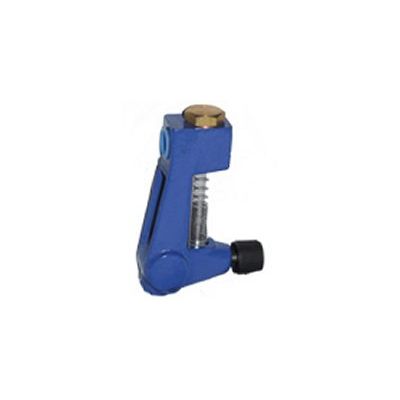

Oil Flow Indicator (Pressure Oiler), Flow Range = .25 - 1 pints/minute

The Kaydon Filtration Model 825 Overflow Sights are designed for convenient observation of liquid flow and are extremely practical for maintaining a desired or fixed level of liquid circulating in a system.

The Kaydon Filtration Model 825 Overflow Sights are designed for convenient observation of liquid flow and are extremely practical for maintaining a desired or fixed level of liquid circulating in a system.
