KC-Denmark A/S products

Antenna: manufactured from 2 meter Ø28mm stainless steel tube, mounted on a floatation rack with 3 pcs of powerful springs, manufactured from AISI 316 stainless steel 316. 2 pcs/each.

The frame can be designed specifically for your purpose or based on our tripodal standard vehicle. Manufacturing in aluminium, steel, AISI 316 stainless steel and titanium is routine at our workshop. Floatation can be either glass spheres or foam. We offer exact weight calculations and recommend minimum buoyancy for your vehicle.

Antenna for radio or satellite beacons. The flash and radar reflector are manufactured from reinforced fibre glass with a bend restrictor at the base The autonomous vehicles can be equipped with units for: water column profiling, chamber incubation, micro profiling over the sediment-water interface, sediment core catching, water sampling or injecting in chambers or in sediment cores.

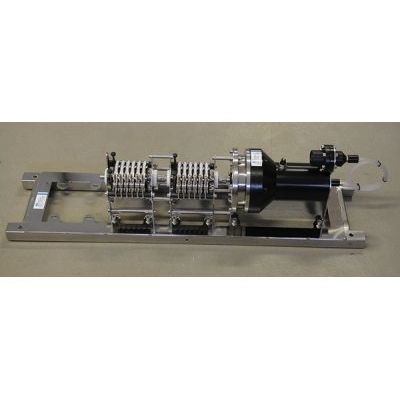

General: Peristaltic pump with 6 or 12 channels, extendable up to 18 channels. Pressure compensated for 6000 m depth.

Antenna; manufactured from 2 meter Ø28mm stainless steel tube, mounted on a floatation rack with 3 pcs of powerful springs, manufactured from AISI 316 stainless steel 316. 2 pcs/each.

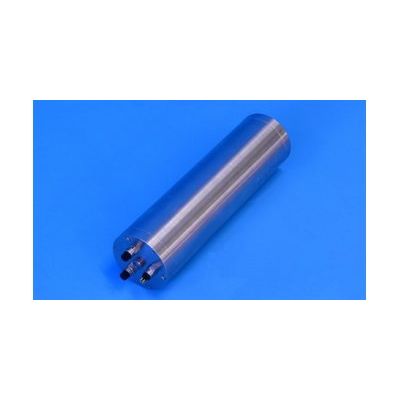

Application: Battery box 100.217 rated for 6000 m depth. With room for programmable timer (USB or RS-485 interface) and pressure transmitter (optional) which can be used for Niskin rosette racks, sediment trap stations, plankton pumps, small multi water sampler station and lander systems.

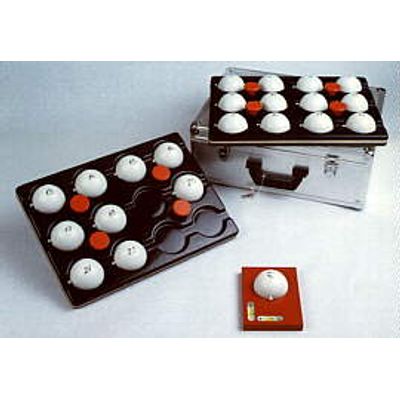

The hemisphere method describes near-bottom flow conditions in watercourse. The method is based on a simple concept: Which weight of a hemisphere exposed to a flow is moved by a given current from a reform plate. The set of hemispheres consists of 21 identical hemispheres with different specific gravity.

The rack is for use with SEBA and OTT current meters (9 mm o.d. pins) during flow measurements in streams and rivers. The rack consist of a movable part with a stirrup for holding the current meter and a fixed part with a foot and a centimeter graduated scale (5 cm indications). By operating the spring loaded handle, the current meter can be positioned at any height above the sediment and the position read at the scale. The CURRENT METER RACK can be supplied with SEBA or OTT current meter.

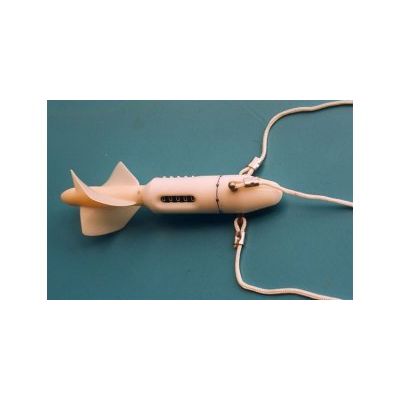

For determining the amount of water passing through a plankton net. For vertical pull only. For a horizontal pull you can also use flow meter 23.090. Diameter of propeller/counter body: 70/32 mm, length 185 mm, 5-digit counter; easy installation by a triple point connection of the nosepiece. With back-run stop for vertical operation.

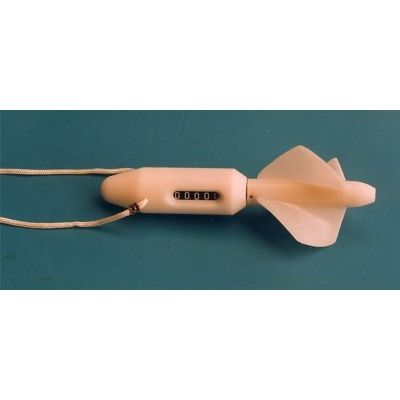

Short description: For determining the amount of water passing through a plankton net. For horizontal pull only. Diameter of propeller/counter body: 70/32 mm, length 185 mm, 5-digit counter; easy installation by a two-point connection of the nose piece. Can be used for full oceanographic depth. (6000 m).
