KEB Automation KG products

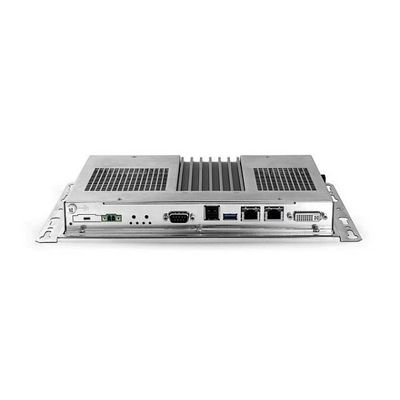

The high-performance fanless C6 E22 Box IPC offers all the functionality of the Intel® Bay Trail™ platform with quad-core processor at an excellent price point. The E22 is the Box IPC of choice for applications that demand top-of-the-line performance in motion control.

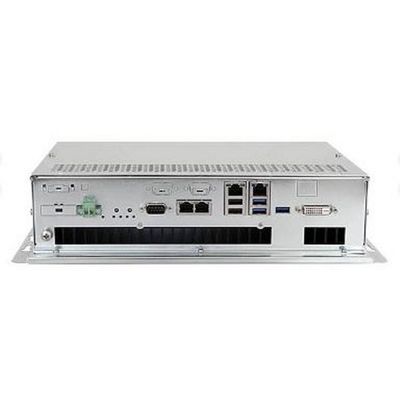

With the C6 P34, KEB has a fanless Box-IPC in its portfolio that uses the Intel Skylake platform, as well as the sixth generation of Core i5 processors.

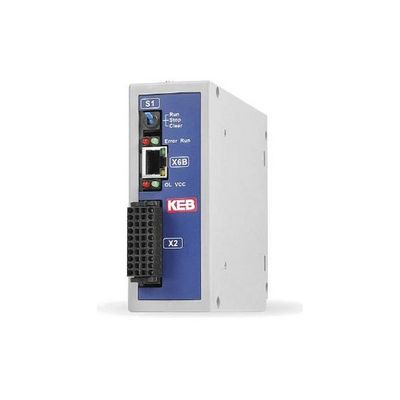

KEB`s C6 Compact embedded controller combines economy with flexibility and excellent performance. In addition to the real-time EtherCAT-Master, there are a number of slave interface options available (CANOpen, Profibus, Profinet RT, Interbus, EtherCAT, Powerlink) as well as a CAN-Master.

The high-performance fanless C6 E22 IPC offers all of the functionalities of the Intel® Bay Trail™ platform with quad-core processor at an excellent price point. In applications with a high demand for display and visualization the E22 is the panel of choice.

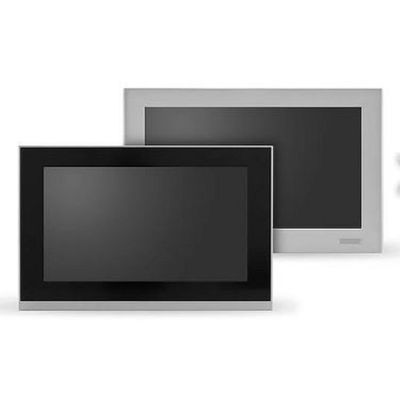

The C6 P34 IPC panel from KEB uses the Intel® Ivy Bridge platform along with the 6th generation Core i5 processors. It’s the most powerful panel IPC in our current line of automation products, with an impressive maximum computing capacity for motion control. The all-in-one motherboard includes Ethernet, serial RS232, and USB interfaces, as well as an EtherCAT master. Additional optional fieldbus interfaces enable connection to higher ranking controls and can be configured based on installation space and location. All of KEB’s Panel IPCs are available in a wide range of display formats and sizes, and users can select either resistive or capacitive touch technology.

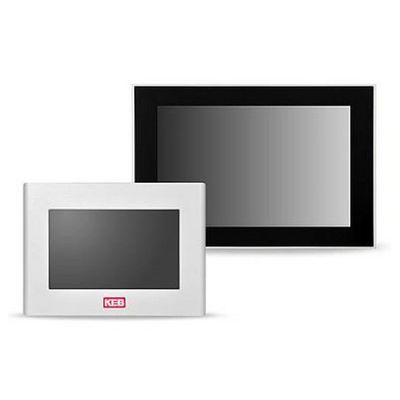

The C6 HMI LC is an ARM-based panel PAC (Programmable Automation Controller) system, combining visualization, control and remote maintenance in a single unit. An integrated micro-UPS enables non-volatile data to be securely saved in the event of power failure. The logic controller can handle a range of SPS and HMI functions depending on the version of runtime used by the application. Every panel has an aluminum frame with an IP66 protection rating. The top-of-the-line touch screens have brilliant displays with 16 million colors. A range of display formats are available.

The C6 S14 product family uniquely combines visualization, control and remote maintenance functions, the scope of which depends on the runtime version used. This logic panel is already a true all-rounder and builds the bridge between embedded and IPC technology.

Today’s modular machine designs require decentralized architecture. Conventional automation modules have begun to migrate from the conventional control cabinet directly into the installation. The new generation of KEB DIN rail IPCs is design precisely for this type of installation.

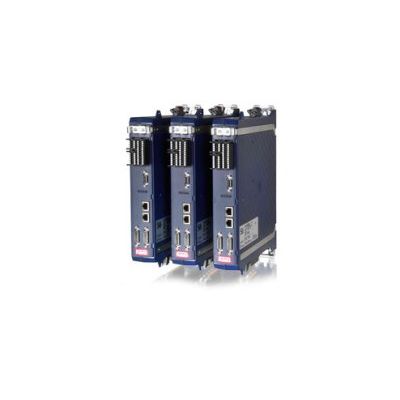

The COMBIVERT S6 is a modern, compact but flexible servo-amplifier for performance levels from 0.75kW to 5.5kW or electrical currents from 2.6A to 12A. Also, the drive controller provides optimum performance in torque-, speed and position control.

In an increasing number of electronic systems, EMC loads and EMC compatibility are becoming factors of growing importance in the operational safety of machines and installations. European standards and regulations require manufacturers and operators to configure applications in compliance with established limit values.
