KELLER Pressure products

The pressure transducers of the 10L series have a robust housing made of stainless steel, giving them optimum long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive  pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.

The pressure transducers  of the 9L series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive  pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.

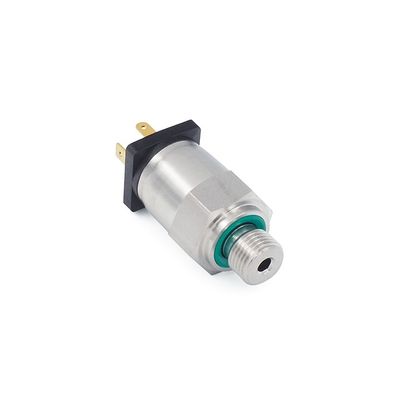

The pressure transmitters of the 21C series with ratiometric 0,5...4,5V output combine chip-in-oil measuring cells with conventional electrical connections and pressure connections, making them ideal for industrial use. The transmitters are extremely resistant to environmental influences and deliver accurate measurement results over a temperature range of -40 °C to 125 °C.

The pressure transmitters of the 21Y series have no internal seal and a high insulation voltage of 300 VDC, and are extremely resistant to environmental influences. The sophisticated compensation circuit makes it possible to specify a narrow total error band. A wide range of pressure connections and electrical connections are available to choose from.

In the high-precision level sensors of the 36XW series, the temperature dependence and nonlinearity are precisely compensated for in the microcontroller by means of a mathematical model. In addition to the RS485 interface, the measurement results can also be output via the integrated D/A converter as a rangeable analog signal. Extended lightning protection is also available as an option.

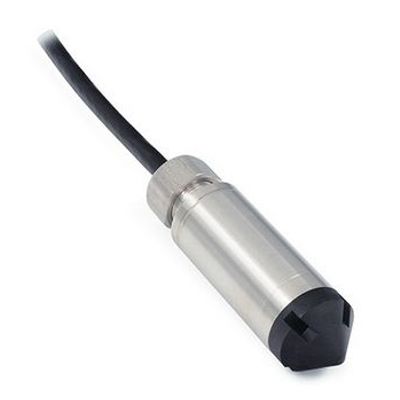

The level sensors of the 26Y series are budget-friendly, but still offer high accuracy and excellent long-term stability. They are available in versions for absolute or relative pressure. With a start-up time of just 5 ms, the Y line is ideally suited to data logger applications.

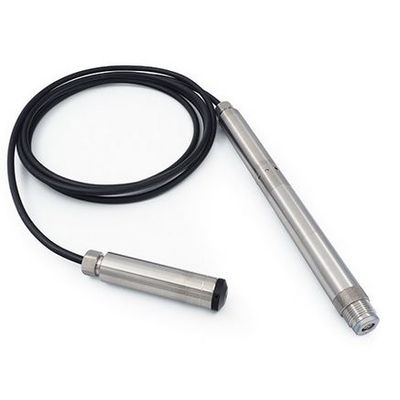

The DCX-22AA data loggers compensate for changes in air pressure by means of a separate, water-tight absolute pressure sensor with a stainless steel separating diaphragm. Unlike gauge pressure systems with a capillary tube, this system is completely resistant to moisture and can therefore be immersed. Thanks to their long-life battery, they can keep measuring the water level, water pressure and temperature for years (up to 10 years at a rate of one measurement per hour). The logger can be configured using the supplied software (measurement interval, incident management, delayed measurement start etc.) and data that has been read can be displayed in a graph or chart, corrected using air pressure values, converted into fill levels or other units, and exported.

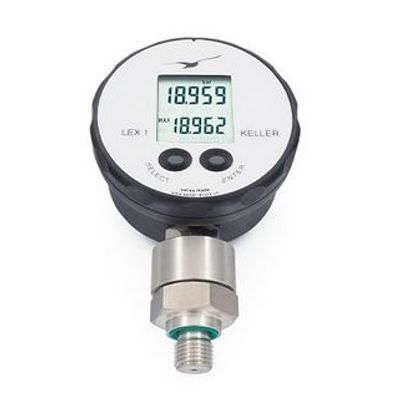

The high precision of the LEX1 digital manometers makes them ideally suited to calibration and test applications. The minimum or maximum value since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. Power is supplied by a conventional CR2430 coin cell battery (provided).

The remote data transmission unit ADT1-Tube is encased in a robust, stainless steel housing, which is ideally suited to installation in 2" monitoring pipes. The LoRa module, which can be configured on a country-specific basis, establishes a connection with the Internet and makes it possible to collect measurement data in a low-cost and energy-saving manner. These autonomous devices can be linked with digital level sensors and pressure transmitters in the KELLER D and X product lines. With three conventional, high-quality AA batteries, the system can operate autonomously for up to 5 years. The LoRaWAN provider can be selected freely or an in-house or open source infrastructure and associated services can be used. The easiest and most convenient way to access the collected data at the end of the transmission chain is via KOLIBRI Cloud from KELLER.
