Kelln Consulting Ltd. products

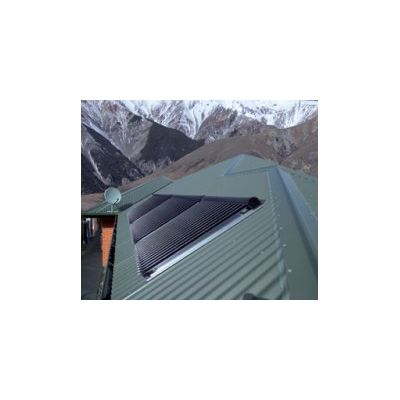

Key features of the TH-tube guarantee high performance Vacuum insulated double glass tube Degree of absorption > 94%
Degree of emission < 5%

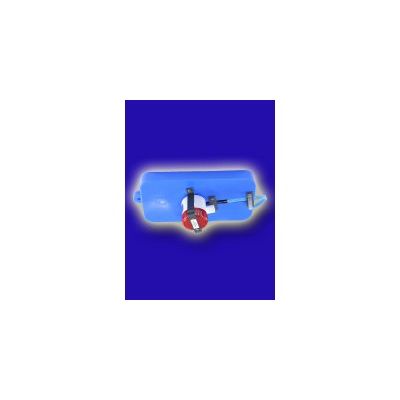

The K1 pump is a single stage continuous duty centrifugal unit which is an economical medium-output pump suitable for shallow-lift situations. The K1 is a portable unit which can easily be moved from one location to another. The pump drains back to the water line making it ideal for summer and late fall applications.

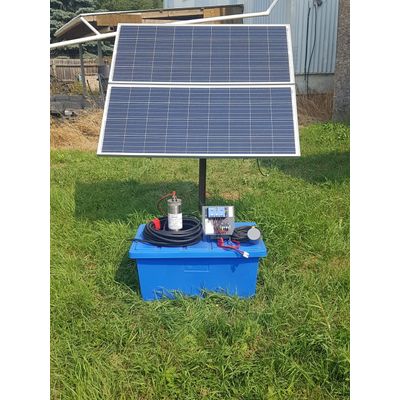

This 2-160 System will water 144 cow/calf pairs at 80` lift and 105 pairs  at 200` of lift. The SWP-4000 is a positive displacement, continuous duty, low output submersible pump. This pump is best suited for low output wells of moderate depth and for applications with small daily output requirements. It has unique-tight power connectors and can be repaired It can be used with an optional pressure tank to create pressurized line system. This pump fits in a 4" casing. It has an output of 1.5 GPM, and can lift up to 200 feet. It is recommended herds ranging in size from 60 to 160 cow/calf pairs. The system is plug and play, and includes an installation and operations manual to get it up and running as quickly as possible. Warranty - 1 Year.

The ETA HR series submersible is a positive displacement unit comprised of a helical rotor and stator type pump connected to a brushless continuous duty motor. This series comes in a variety of models suited for specific well depths and output requirements. It has a speed control, which can reduce output from it’s maximum -useful for low output wells. Typically used in a well, an HR Series pump can beequipped with an optional float for surface applications such as dugouts/reservoirs and because of it’s stainless steel interior, it is resistant to wear by abrasive material. Pumping can be controlled by a float switch or optionally, by using a pressure tank/switch to supply a pressurized pipeline. The ETA HR pump can also run Solar Direct (without batteries). The HR-04 is capable of lifting up to 400ft, and will provide an output of 1 GPM. Warranty - 2 years.

MAX LIFT 12ft. The K1 pump is a single stage continuous duty centrifugal unit which provides reliable and economical medium output service suitable for shallow-lift situations. The K1 is a portable unit which can easily be moved from one location to another. The centrifugal design means that when the pump shuts off it drains back to the water line, making it ideal for summer and fall applications including light freezing conditions.   The 1-160 will water 290 cow/calf pairs at 5 ft of lift, and 210 pairs at 12ft of lift. If that doesn`t work for you, give us a call and we`ll fit you into a system that does.   Warranty - 2 yr.

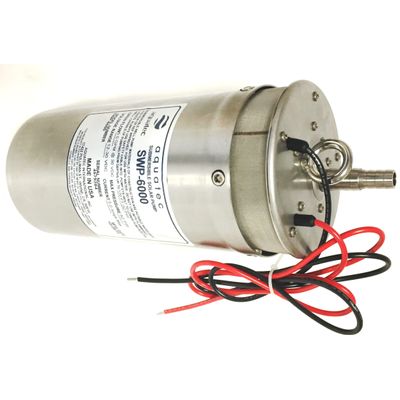

The SWP-6000 is a positive displacement, continuous duty, low output submersible pump. This pump is best suited for low output wells of moderate depth and for applications with small daily output requirements. It has unique-tight power connectors and can be repaired It can be used with an optional pressure tank to create pressurized line system. The SWP-6000 offers more flow (up to 3gpm) than the SWp-4000, but requires a 6" well casing and will provide 120` of lift The system is plug and play, making for easy installation to have your system running as soon as possible. Warranty - 1 Year.

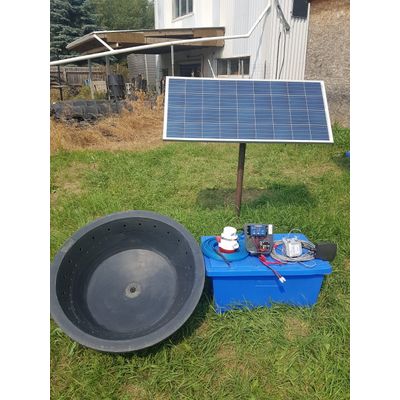

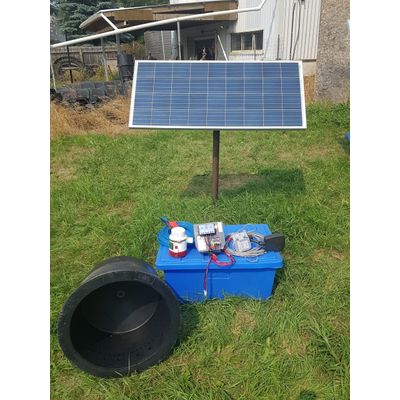

The Motion-Controlled Winter Watering System is the ultimate winter system because it is 100% freeze-proof when installed and maintained properly. It does not require an artificial heat source regardless of how few animals may be using the system. In the case of a solar powered system, the power required to operate the motion eye and the pump is supplied by deep cycle batteries which are recharged by the solar panels. This system is sized according to the number of animals it will be called upon to water. The heavy duty plastic bowl mounted on top of a vertical well casing, is filled by means of a submersible pump which operates only when animals are present.

The Motion-Controlled Winter Watering System is the ultimate winter system  because it is 100% freeze-proof when installed and maintained properly. It does not require an artificial heat source regardless of how few animals may be using the system. The heavy duty plastic bowl mounted on top of a vertical well casing, is filled by means of a submersible pump which operates only when animals are present. When the last animal leaves, the bowl drains dry thus preventing freeze-up. The water in the casing is maintained below the frost line, and is supplied either by gravity feed from a dugout/reservoir or by a pressurized line.

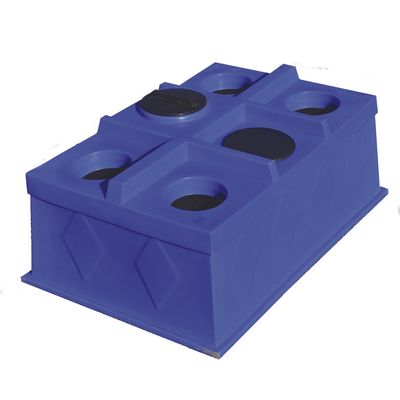

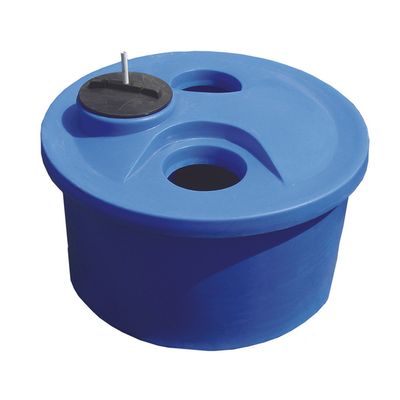

These highly insulated field-proven troughs provide dependable water access in extremely cold conditions without an external heat source. Tapered drink tubes (wider as they extend down towards the bottom of  the trough) allow for movement of the ice layer and prevent solid freeze-up. Water can be supplied by two means; a) overhead via a centrifugal pump, typically from a well with the pipe draining back to the source (or) b) underneath via a pressurized line buried below the frost line. Insulated troughs are ideal for for summer use also, as they moderate water temperatures and reduce sunlight access to the trough resulting in reduced algae growth.

These highly insulated field-proven troughs provide dependable water access in extremely cold conditions without an external heat source. Tapered drink tubes (wider as they extend down towards the bottom of the trough) allow for movement of the ice layer and prevent solid freezeup. Water can be supplied by two means; a) overhead via a centrifugal pump, typically from a well with the pipe draining back to the source (or) b) underneath via a pressurized line buried below the frost line. Insulated troughs are ideal for for summer use also, as they moderate water temperatures and reduce sunlight access to the trough resulting in reduced algae growth.
