KIN-TEK Analytical, Inc. products

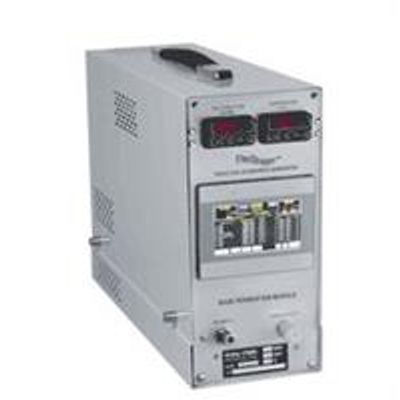

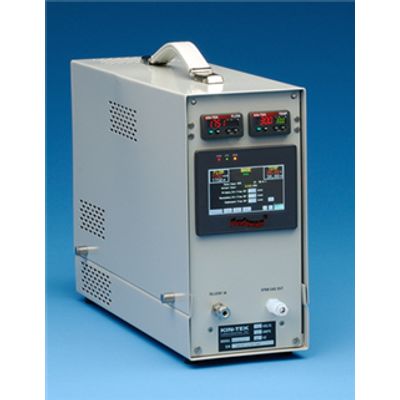

The KIN-TEK Analytical FlexStream System is ideally suited for creating trace concentration – ppm, ppb, and pptr – mixtures. The FlexStream uses KIN-TEK Trace Source disposable, refillable and diffusion permeation tubes for over 550 Supported Chemicals. Permeation tube oven with wide temperature range controlled to 0.01 °C. The FlexStream  Gas Standard Generator System is composed of one or more modules, depending on application requirements. Click here for more information about the FlexStream  Modules.

The “Base” module is required in every FlexStream™ system. This module provides:

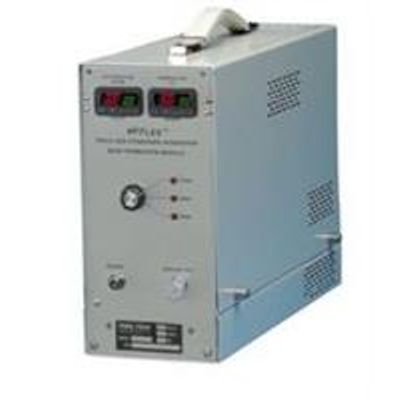

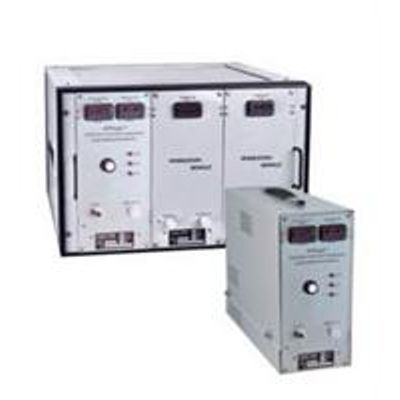

The KIN-TEK Analytical 491FLEX System is a manually operated, expandable, full capability permeation tube system for generating precision calibration gas mixtures.  The 491FLEX is ideally suited for creating trace concentration – ppm, ppb, and pptr – mixtures.  The system uses KIN-TEK Trace Source disposable, refillable and diffusion permeation tubes for over 550 Supported Chemicals. The 491Flex  Gas Standard Generator System is composed of one or more modules, depending on application requirements. Click here for more information about the 491Flex  Modules.

The “Base” module is required in every 491Flex™ system. This module provides:

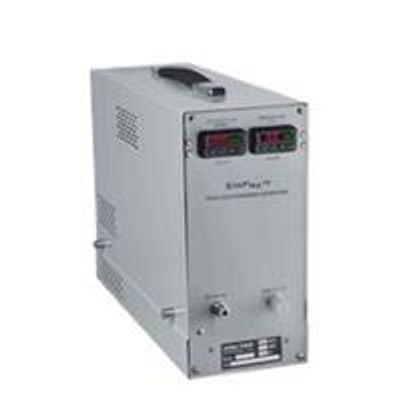

The EcoFlex Permeation System is designed for creating trace concentration gas mixtures. Mixtures are produced by diluting the minuscule flow of vapor emitted by Trace Source permeation (or diffusion) tubes with a much larger flow of inert matrix gas, typically nitrogen or zero air. Mixtures contact only suitably inert materials, Teflon^®, coated stainless steel, or glass.

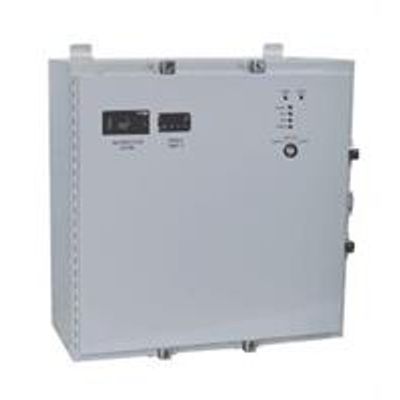

KIN-TEK Industrial Gas Standard Generators are used in industrial environments. These instrument systems use Trace Source permeation tubes to deliver calibration gas standards directly to your process GC, GC-MS, or any type of gas analyzer. KIN-TEK Gas Standard Generators provide the temperature controlled environment for equilibration of the permeation tubes and carrier gas control for generating the desired concentrations

Trace concentration moisture is an extremely important parameter in gases used in a wide range of processes. But there is no absolute analytical method that can be used in all applications. For most sensing methods, the response to moisture is affected by the background gas and most current methods are subject to “poisoning” by certain contaminants. Basically, all trace moisture sensing systems require calibration to external standards and they must be frequently challenged with standards to demonstrate continued accuracy.

Disposable Permeation Tubes are tubular devices about the size of a pencil with liquid component compound sealed inside. The component compound slowly permeates through the tubing wall creating a very small flow of component vapor. Disposable tubes have a finite operating life and are discarded at the end of that life. They are primarily used to make lower and medium concentration mixtures. Disposable Permeation Tubes are popular because they are small and convenient to use.

Refillable Permeation Tubes generally offer a broader range of concentration than disposable tubes. They are often recommended for long-term service and for applications requiring a broad range of calibration points. High emission tubes in gas service are refilled in-situ, using controls in various models of KIN-TEK Gas Standards Generators.

Requires use of KIN-TEK Gas Fed module and user supplied pure gas cylinder source.
