Kinetics Model SFH Vibration Isolation Hangers consist of freestanding, large diameter, laterally stabile steel springs in series with a precompressed molded fiberglass insert assembled into a stamped or welded hanger bracket. 1" and 2" hangers also feature Kinetics patented No-Short spring cap. To assure stability, the spring element has a minimum lateral spring stiffness of 1.0 times the rated vertical stiffness. Hangers will allow support rod misalignment through a 30° arc without short-circuiting.

Kinetics Model SRH Vibration Isolation Hangers consist of free-standing, large diameter, laterally stable steel springs in series with an elastomer-inshear insert, assembled into a stamped or welded hanger bracket. To assure stability, the spring element has a minimum lateral spring stiffness of 1.0 times the rated vertical stiffness. Springs are polyester powder coated, with a 1000-hour salt spray rating per ASTM B-117. SRH 1" and 2" hangers feature Kinetics patented No-Short spring cap. All SRH hangers incorporate a high deflection, color-coded spring element with load transfer plate and a 0.4" (10 mm) deflection elastomeric isolator complete with load transfer plate.

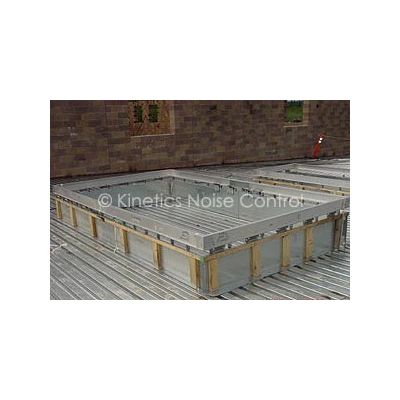

Affordable...easy to install...all-in-one roof curb AND vibration isolation for under 20-ton packaged rooftop units!

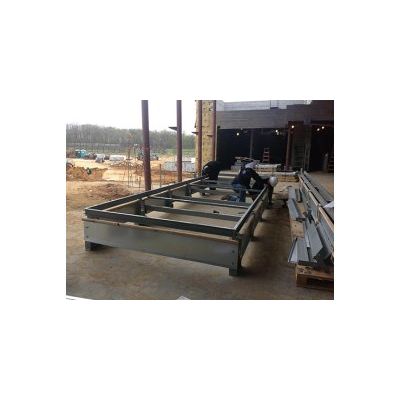

Heavy-duty, complete vibration isolation/seismic curb for, the BIG rooftop unit jobs.

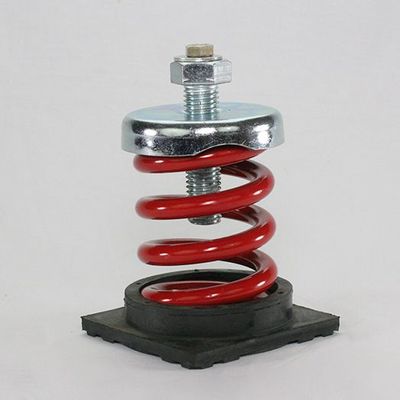

Kinetics FDS spring mounts are recommended for use in isolating floor mounted sources of noise and vibration located near critically quiet areas. FDS spring mounts are typically used to reduce the transmission of noise and vibration from low speed mechanical equipment into a building structure. Operating static deflections are available to 4" (102 mm) to compensate for long span floor structures. FDS spring mounts are used in a wide range of applications, some requiring Kinetics equipment bases in addition to spring isolators, and can be used to support and isolate the following equipment types: reciprocating air or refrigeration compressors, close coupled and base mounted pumps, packaged air handling and refrigeration equipment, centrifugal fans, internal combustion engines, and similar equipment. Kinetics FDS Isolators are for use on equipment that is not subject to lateral forces such as wind.

KCI Miami-Dade Approved Spring Isolators are compact, lightweight, restrained, spring isolators. A plated steel assembly limits lateral and vertical movement of the supported equipment during an earthquake or wind storm. An angle top plate or threaded bolt option are available for equipment attachment. KCI is recommended for restrained isolation of small to medium sized pieces of mechanical equipment near critically quiet areas when there is also need for wind or seismic restraint. Can also be used with strut to isolate equipment farms.

Kinetics Model SFB Welded Structural Frame Bases are individually engineered to support and add rigidity to a specific piece of mechanical equipment and to allow the use of selected vibration isolators. The bases provide a rigid frame to reduce motion on start-up and maintain belt or drive alignment. The bases are fabricated with channels, angles, or WF beams, and are complete with outboard heightsaving isolator brackets and prelocated equipment anchor bolts. Main steel members have section depths of 3" to 12" (76 mm to 305 mm), designed to be a minimum of 10% of the longest span between isolators.

Kinetics inline pump support hangers are fabricated from structural steel members that can be suspended to the building structure via threaded rod. KSIP features a rigid steel member that maintains the proper height and alignment during install of the piping and inline pump. Suspended inline pump supports are available in configurations to support pump sizes from 1-1/2" to 8.

Kinetics Model KNC Noise Control Curtains are modular, reinforced limp mass vinyl panels or vinyl and quilted fiberglass composites designed to contain noise or to act as a movable barrier between noisy and quiet areas. Kinetics Noise Control curtains incorporate a self-supporting track which allows the curtain to open for access at virtually any point along the enclosure.

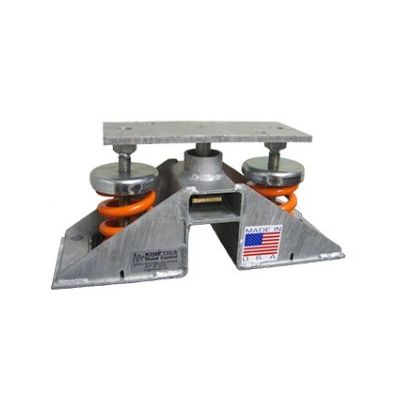

KINETICS TITAN Modular Seismic and Wind Restraint Vibration Isolator is comprised of two interfacing but independent elements; two or more high deflection, free-standing, housed, large diameter, laterally stable steel springs, and a seismically rated housing. The steel springs are replaceable without having to lift or otherwise remove the supported equipment. The seismically rated housing is available in three (3) housing sizes engineered to resist nominal restraint forces of 0.5G, 1.0G, and 2.0G based on the max load capacity of the isolator model.
