Kingston Valves
5 products found
Kingston Valves products
Kingston - KAV Pneumatically Actuated Angle Seat Valve
The Kingston KAV angle seat valve is a pneumatically actuated valve featuring a 2/2 way configuration, designed specifically for demanding applications. Its robust aluminum alloy actuator ensures durability, making it suitable for various general service applications. The unique angle seat valve design allows for high flow rates while minimizing pressure drop, enhancing its efficiency. Notable features include a high cycle-life, a visual indicator, a robust seat and stem, and a 360° rotating actuator head. This valve is versatile, adept for use in numerous applications such as steam sterilization, textile drying, air separation, and automotive assembly. With an integrated pneumatic actuator, it proves to be highly functional in processes ranging from pharmaceutical manufacturing to wastewater treatment, ensuring reliable performance in complex and challenging environments.KSV Soft Seat Safety Valves

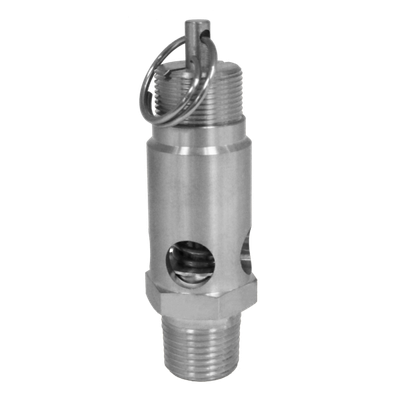

Kingston - Stainless Steel ASME Soft Seat Safety Valve
The KSV25CR Stainless Steel ASME Soft Seat Safety Valve is an industrial component designed to ensure safe pressure release in a wide range of applications. It features a stainless steel body, making it highly durable and resistant to corrosion. The valve is equipped with a soft seat, utilizing EPDM or FKM (fluoroelastomer) discs, which provide an effective seal and compatibility with various media. This valve is capable of handling pressures from 20 to 450 PSI and can operate within a temperature range of -20°F to 400°F. It is suitable for use in air compressors, automotive industries, food and beverage dispensing systems, and process control equipment. The valve also meets regulatory standards, including the Canadian Registration Number and National Board/ASME Section XIII, ensuring stringent quality and safety controls.
Kingston - Stainless Steel Safety Valve for Process Control
The KSV30CR is a robust stainless steel soft seat safety valve designed to handle a wide range of pressure applications, rated between 20 to 300 PSI. This valve is ideal for venting applications into the atmosphere and features a variety of disc options, including EPDM, FKM, and silicone, to meet specific operational needs. With threads available in BSPP and BSPT, it provides versatility for integration in various systems, especially within air compressors, the automotive industry, food and beverage dispensing, and broader process control equipment. The valve has a broad operational temperature range from -20°F to 400°F, making it suitable for various environmental conditions. Certified under National Board/ASME Section XIII, it meets stringent safety standards. Additionally, it carries a Canadian Registration Number (CRN) ensuring compliance across regions. This valve is critical for ensuring operational safety and reliability in industrial processes.Pressure and Safety Relief Valves

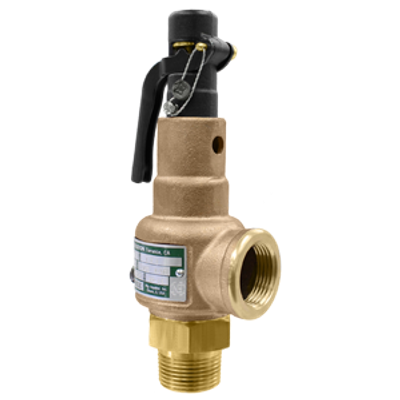

Kingston - ASME Code Safety Relief Valve for Industrial Applications
The KNG560 ASME Code Safety Relief Valve by Kingston is designed for industrial applications requiring precise pressure control, such as in air compressors, air dryers, boiler systems, nitrogen generators, and process control equipment. This safety relief valve, compliant with ASME standards, supports pressure settings ranging from 1 PSI to 250 PSI and operates effectively within a temperature range of -20°F to 406°F. Available in sizes from 1/2 inch to 2 1/2 inches, it is made of durable brass, suitable for handling steam-based systems. The valve adheres to rigorous certification requirements, including Canadian Registration Number (CRN), CE, and National Board/ASME Section I certifications. The inclusion of a captured exhaust feature ensures safe venting of excess pressure, making it suitable for a variety of pressure control tasks in complex industrial environments.
