Kingsview Optical Limited products

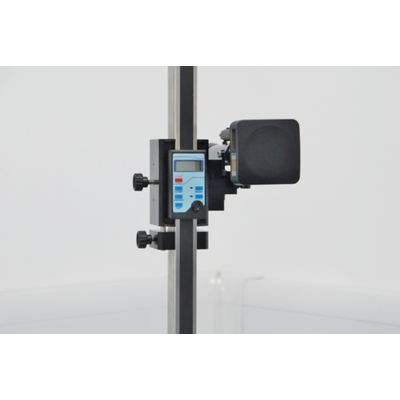

Model 2202D - Digital Cathetometer
Kingsview Optical manufactures the 2202D digital cathetometer to give repeatable non contact measurements of samples which are either far away or in harsh environments where it is not possible to get access to. The 2202D is fitted with a digital scale with a resolution of 10 micron. It has the option of having USB camera added as an extra should you require making documenting your results easier. The 2202D digital cathetometer consists of a telescope mounted on a carriage bar which runs on a stainless steel precision ground bar. The lower end of the bar is fitted with a sleeve which runs into an accurately ground gunmetal bush in the cast iron tripod base. The telescope has adjustable focus and with the aid of close up lenses can be used from 300mm to infinity but the customer will need to specify the working distance needed and we would supply a lens to suit. Should the customer want to use it at a range of working distances we could supply more lenses to suit as an extra.

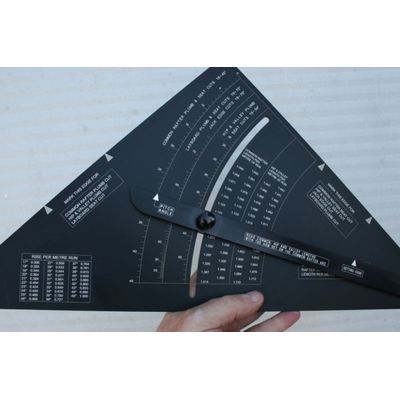

Roofmaster
OMI Cowley originally made this product (Red Version). Kingsview bought the instruments of the S.O.L group when they went into recievership & OMI Cowley was part of that group. The roofmaster has been designed to simplify the work of the carpenter on site. With this tool the skilled craftsmen should have no problem in constructing traditional roofs of complex design. The concept of the roofmaster is built on one main factor, the pitch angle of the roof to be constructed. This angle will be specified by the architect or designer and shown on the relevant drawings. When this figure has been determined, it is the only number required to set the tool for all roof members. The graduated arc is designated to each particular roof member. The required cutting angles for any given member is obtained by setting the adjustable arm to the pitch angle number on the selected arc.
Digital Microscopes

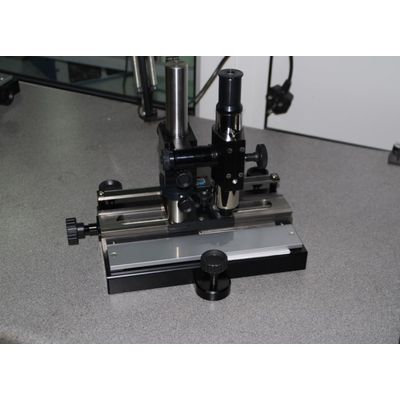

Measuring Microscope
The 2152D is a single axis measuring microscope manufactured from anodised aluminium and stainless steel to give a solid base for accurate measurements.

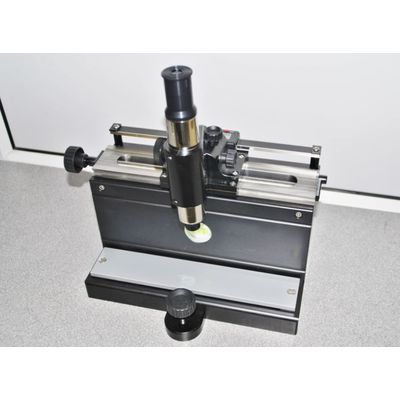

Model 2158D - Measuring Microscope
The 2158D is a dual axis measuring microscope manufactured from anodised aluminium and stainless steel to give a solid base for accurate and repeatable non contact measurements.
