Klinger Finland Oy - KLINGER Group products

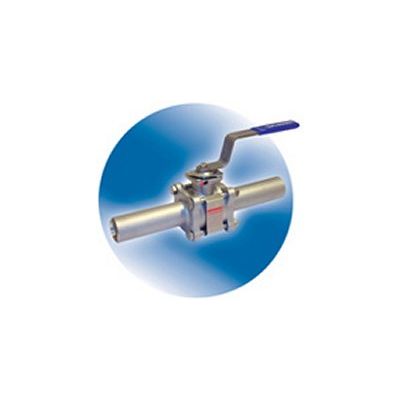

KLINGER Ballostar-A; Material steel or stainless steel, 3-piece ball valve for control and on-off use. Special sealing system developed by Klinger guarantees safe and reliable function even at the most demanding conditions.

Between flanges. Mono-flange with flanges.  Materials cast iron, nodular cast iron, RG10, alubronze, acid resistant steel, PTFE-lined, titanium and hastelloy

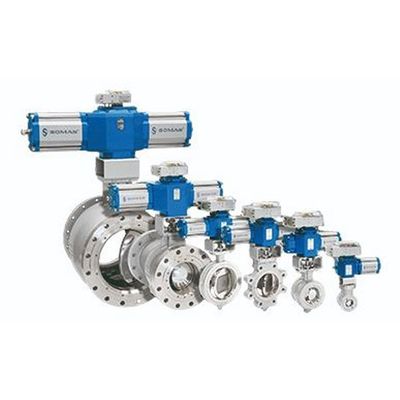

Steel, acid resistant or cast iron Ball and Butterfly Valves for On-Off use equipped with pneumatic or electric actuator with mechanical or inductive limit switch boxes. EX or ATEX acceptance.

General features of globe and piston valves. Materials; cast iron, steel, RG 5, RG 10, acid resistant steel, cold resistant steel.

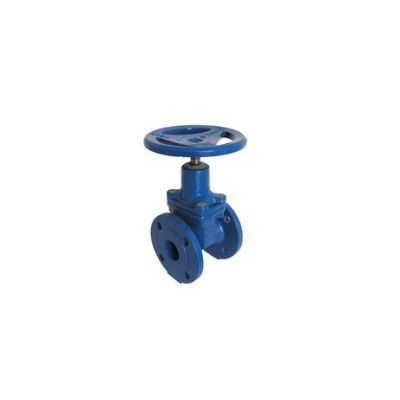

Gate valves are widely used as closing valve for many different processes mainly for liquids and for steam. Gate valves are used in pipelines which sizes are from DN50 to DN1600. As a benefit in gate valves is that those are fully open valves and flow is not resisted or it influence will be very low. Materials for gate valves can chosen from standard carbon and stainless steel, but also with highly alloyed steels for high temperature services or for high corrosion tolerance.

Materials cast iron, steel, acid resistance steel, low and high temperature steel, PTFE lined, titanium and hastelloy.

Pneumatic actuators are often used in applications where clean instrument air is easily available and where several actuators are in same area. Main benefits of pneumatic actuators are low price compared to other types, quick operation times, safety positions (open/closed) in electric or instrument air short cuts. Operation times can be controlled by selecting the right actuator model and controls. Operation ranges for Pneumatic actuator are 90° and 180° and vertical in diaphragm type for globe and piston valves.

Electric actuators are used mainly in applications, where instrument air is not available or where the distances are long. Electric actuators are often used with gear unit, in order to adjust speed or create high torque. Operation ranges for Electric actuator are 90°, multiturn and vertical for globe and piston valves.

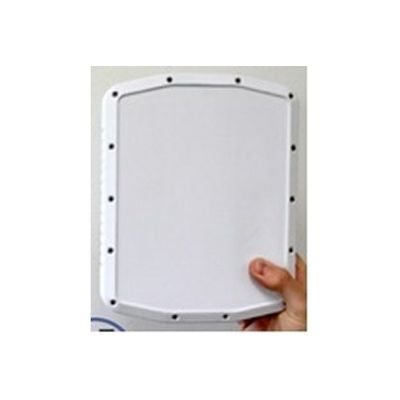

The ground radar effectively monitors your area and immediately reports movements at the site. SpotterRF radars are designed to monitor industrial sites, storage areas, government sites and water bodies. The system displays the movement of the object on the map and forwards the alarm information as well as directs the cameras to turn to the object automatically. The ground radar can be set to several different alarm ranges and alarm characteristics. The radar operates in terrain, city and sea.

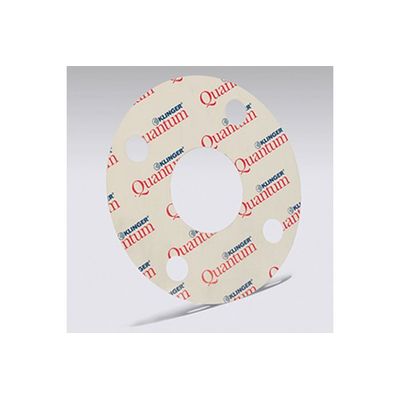

KLINGER Quantum is the first fibre-reinforced gasket material in the world that is exclusively HNBR-bound. Thanks to the unique production process developed especially for the purpose, this material can be used at higher temperatures and with a much wider range of media than any other fibre-reinforced gasket material that is currently available. KLINGER®Quantum gaskets retain their flexibility even at constant high temperatures in a never before seen manner, yet still fulfilling all the modern day requirements for tightness and safety.
