Konvekta Ltd. products

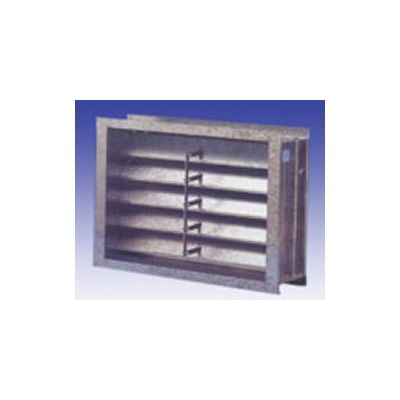

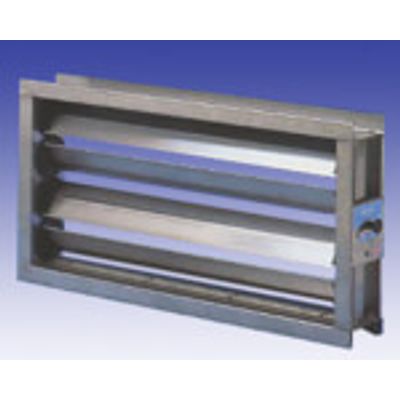

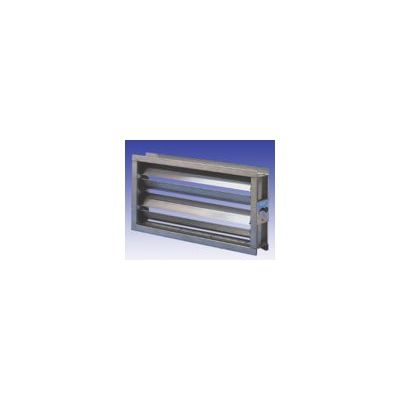

K300 Stainless Steel Control / Balancing volume control dampers.

K400 Galvanised Control / Balancing volume control dampers.

K500-PVC - Plastic corrosive resistant multi-leaf opposed blade volume control damper.

K500-X - Plastic special application multi-leaf opposed blade volume control damper. K500-X - Plastic special application multi-leaf opposed blade volume control damper. The K500-X opposed blade volume control damper is a corrosive resistant product for use in corrosive atmospheres and with aggressive media. These multi-leaf dampers are primarily used in ventilation systems for volume control, pressure control and air balance where there are airborne contaminant present. Coastal installations, Sewage treatment plants, Water treatment works, Fume cupboard extract systems, Variable air volume fume cupboard systems.

B100 – Low velocity (0 – 5m/s). Multi-leaf non-return dampers primarily used as air operated opening or closing dampers for intake, discharge and pressure relief vents in air conditioning systems. Non-return dampers on fan discharge. Suitable for use within systems from low to high velocity.

Size Range: 150mm to 700mm Dia. Blades: 6mm thick blades reducing dirt and dust build up.

Casing: 250 x 50 x 2mm thick mild steel, galvanised or stainless steel material. Folded and fully welded construction. Non standard flanges and 3mm thick casings available.
