Korea Digital Co., Ltd. products

Our CO2 gas sensors get a small deviation unlike NDIR Single type. So they keep long term stability.

Our CO2 gas sensors get a small deviation unlike NDIR Single type. So they keep long term stability.

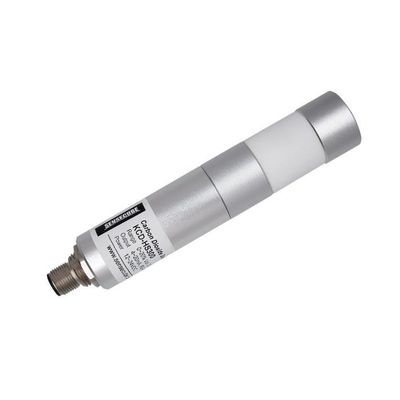

Model: KCD-HS300. Measuring Range: 0~10%, 0~20% (Able to produce for 1% each unit on demand). Operating Environment: 5~45?, ~95%RH Below (Under Non-Condensation). Analog Output: 4~20mA, (0~5VDC, 0~10VDC option). Power: 12~24VDC
Communication: RS-485 (Modbus RTU). Dimensions: 70mm × 44.5mm × 18mm. Weight: About 67g.

Our CO2 gas sensors get a small deviation unlike NDIR Single type. So they keep long term stability.

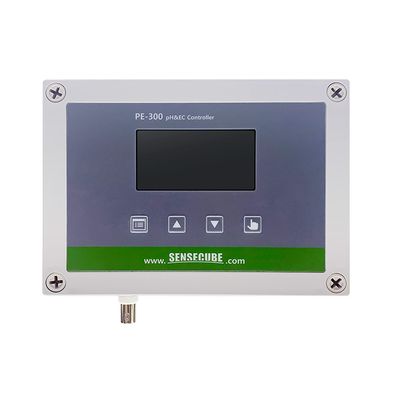

Model: KCD-PE300. Measurement range: pH 0~14, EC 0~5dS/m Temperature 0~50?. Output signal: Relay SPST, RS485 (MODBUS RTU), 4~20mA. Power supply: 24V DC (External Adapter Excluded). Dimensions: 180mm × 130mm × 36mm. Electrode: Sold separately.

Our CO2 gas sensors get a small deviation unlike NDIR Single type. So they keep long term stability.

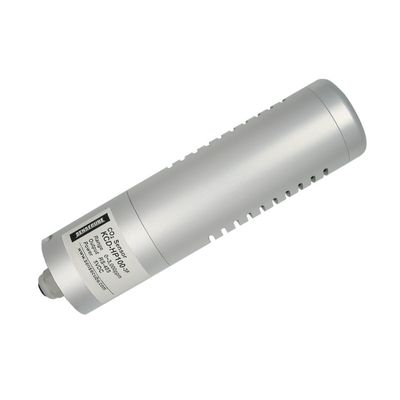

Model: KCD-HP100. Measuring Range: 0~1%(Able to produce for 1000ppm each unit on demand). Operating Environment: 5~45?, ~95%RH Below (Under Non-Condensation). Analog Output: 0~10VDC or 4~20mA. Power: 16~28V DC. Dimensions: ~1% : Φ43 × L161mm(Cable & Fixed Bracket Exclude).

Connection terminal & Cable`s external dimensions is excluded. The standard length of connecting line between sensor and main body is 30cm. Able to replace with new product (Sensor cell is sold separately).

Model: KCD-ON310. Mearsuring method: Solid electrolytes (Zirconia). Measurement range: 0.1~25.0 Vol.%. Output signal: RS485, 0~10Vdc, 4~20mA. Power supply: 24V DC. Dimensions: ?53mm x H53mm. Connection terminal & Cable`s external dimensions is excluded.

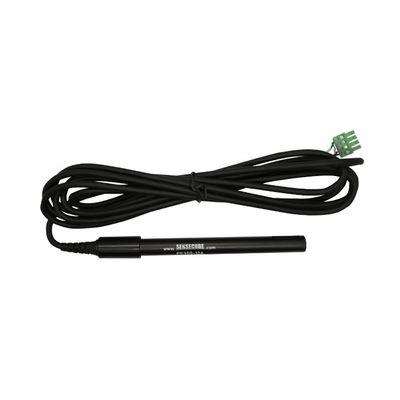

PE300 only, Stripped Wire. Periodic cleaning and maintenance is required. Electrode life may vary depending on the environment.
