KSH GmbH Kleemeier, Schewe & CO. products

Filter nozzles & Accessories

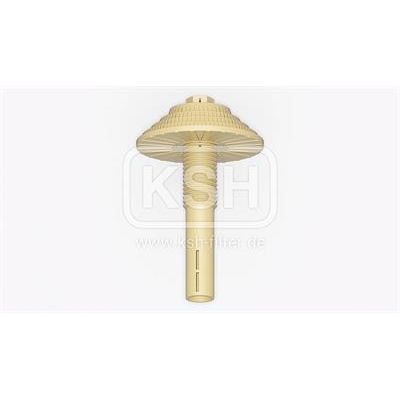

KSH - Model Type K1 / KR2 - Filter Nozzle

Due to it’s conical design, the filter nozzle type K1 are particularly resistant to pressure. The nozzle is equipped with a bottom disc for complete emptying up to the level of the nozzle floor. Alternatively, the type KR1 has a closed bottom disc which prevents the loss of filter media on small contact surfaces (dia.less than 65 mm)

KSH - Model Type KSP - Filter Nozzles

Nozzles based on the K1 type with expansion dowel for easy installation from above the nozzle floor. The dowel allows attachment in nozzle floor with a thickness of up to 45mm. When backwashing with air, we recommend the use of rubber washer type DG70. Should you require any further information or technical advice, please feel free to contact us.

KSH - Model Type DSP - Filter Nozzles

Filter nozzles based on type D with expansion dowels for easy installation from above the nozzle floor. The dowel allows attachment in nozzle floor with a thickness of up to 45mm. When backwashing with air, we recommend the use of rubber washer DG50. Should you require any further information or technical advice, please feel free to contact us.

KSH - Model Type D - Filter Nozzles

Nozzles with cylindrically shaped slots which is often used in large sand filter plants. Through the special emptying, dead areas are avoided at the bottom of the filter tank. The arrangement of the slots ensures a horizontal spray behavior of the backwashing medium.Should you require any further information or technical advice, please feel free to contact us.

KSH - Model Type ADSP - Nozzles for Drainage Systems

Filter nozzle based on type DSP for use with a pipe system. The elastic tube saddle can compensate small irregularities of the drainage pipe. For mounting, the nozzles are inserted through the pipe saddle in the prepared drainage pipe and fixed with the help of the expansion dowel. Should you require any further information or technical advice, please feel free to contact us.

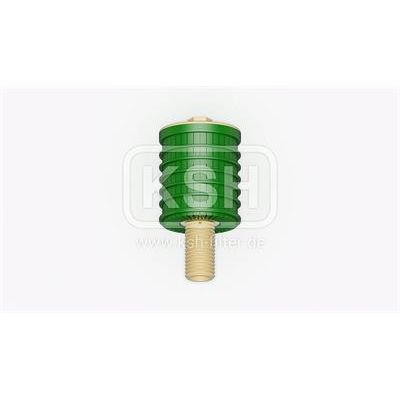

KSH - Model Type C1 - Filter Nozzles

The larger outer diameter results in a higher filtration area. The arrangement of the slots ensures a horizontal distribution of the backwashing medium. The filter nozzles type C1 are often used in ion exchangers or activated carbon filters. Should you require any further information or technical advice, please feel free to contact us.

KSH - Model Type AKSP - Nozzles for Drainage Systems

Filter nozzle based on type KSP for use with a pipe system. The elastic tube saddle can compensate for small irregularities of the drainage pipe. For mounting, the nozzles are inserted through the pipe saddle in the prepared drainage pipe and fixed with the help of the expansion dowel. Should you require any further information or technical advice, please feel free to contact us.
