Kurschat GmbH products

Massive granite O-frame with traversing singlepoint laser sensors. In-Situ calibration. TEMPerformance function with integrated temperature control. Measurement accuracy:< 0.020 mm. Scanning speed up to 300 mm/s

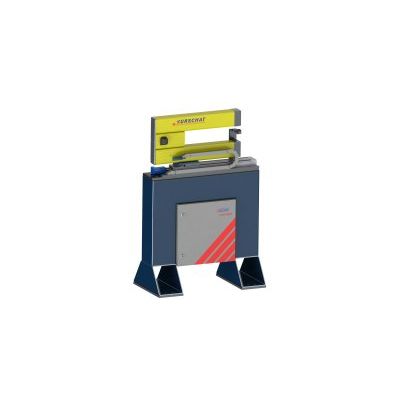

Traversing laser triangulation sensors in C-frame. In-Situ calibration. TEMPerformance function with integrated temperature control. Measurement accuracy:< 0.020 mm. Scanning speed up to 150 mm/s

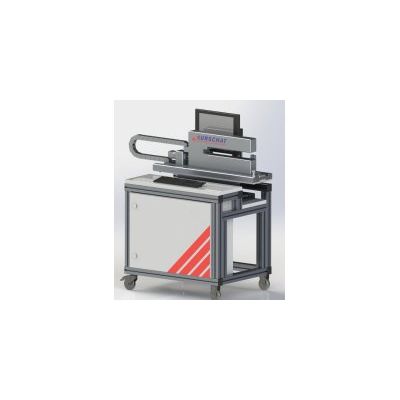

Stand-alone unit with traversing singlepoint laser sensors. Scanning C-frame laser calliper. In-Situ calibration. TEMPerformance function. Measurement accuracy: typical 0,010 mm. Scanning speed up to 150 mm/s

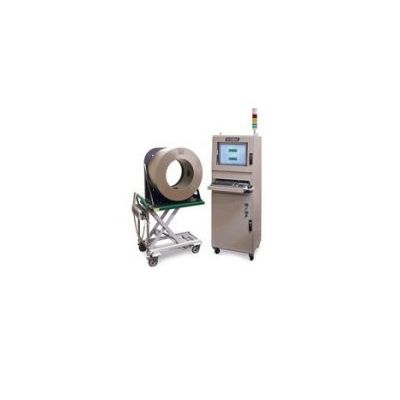

High precision profile measurement in one compact system. Measurement of distance, thickness, radii, angles, deviation, etc. Symmetrical arrangement of the up to 6 laser sensors for a 360° capture. Simple calibration of the entire system with calibration fixture. Variable use in nearly all kind of production lines. Measurement range: 25 / 50 / 75 / 100 and 150 mm. Measurement accuracy: 0,1% relative to the measurement range. Repeatability: 0,03% relative to the measuring range. CAI software incl. comparison to existing CAD (.dxf) data. Extensive logging with min/max, trend analyses, CpK. Available with C-frame or O-frame - Option with O-frame is equipped with embedded industry PC, USV, Touch-Screen monitor and electrical height adjustment

Traversing system with C-frame for high precision, non-contact thickness and profile measurement of flat tubes. Highly robust thanks to thermal stabile granite design with maximum self-damping. Innovative air bearing for maximum smoothness during the traversal. Accuracy starting at 1µm, integrated online calibration. Customized laser sensors adapted to the application, especially for difficult surfaces. Devices for different geometries

Thickness measurement at fixed measurement tracks in punching lines, control of scrap cutters. Ultra-fast, very precise sensors in a rugged housing, purged by compressed air. Integrated, automatic calibration. Up to 5 parallel measurement tracks. Traversing ranges: 20/ 35 / 50 mm

Traversing, compact laser caliper for high-precision thickness and profile measurement in punching lines, roll forming lines, rolling mills and calendering lines. Laser differential measurement with two triangulation sensors. Massive milled aluminium frame, high self-damping. Sensors housings purged by compressed air. In-Situ calbration in reference position. Option with measurement table for flexible use. Measurement range: +/- 3 mm. Repeating accuracy: +/- 1 µm*. Thickness accuracy: +/- 5 µm*. Traversing ranges: 200/ 300/ 450 mm

Sheet-of-light laser width measurement. Automatic edge detection & tracking. Air purging for sensor optic. Measurement accuracy: typical < 0.025 mm. Resolution in width direction: 0.05 mm

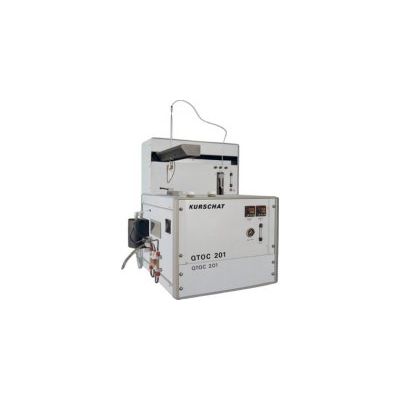

The high-capacity 2-channel-analyser QTOC 201 allows fast and reliable specifictions of soluble and insoluble carbon-impurities of water samples in laboratory as well as in quality insurence. The complete system, which has been on the market for many years, is absolutely reliable.
