KZValve products

Designed to perform operation essential fluid control applications in extreme conditions. Constructed with solid state components for increased durability and maintenance-free performance. UV-modified, glass-filled nylon housing is durable, impact-resistant, provides long life and lower maintenance costs. Waterproof actuator housing meets the IP68 rating of the ISO 60529 standard degree of protection provided by enclosures against water intrusion. Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extends actuator life. Sub-compact design (1 lb.) allows for use in numerous applications. Powerful actuator motor designed to cycle 1⁄2" ball valves in multiple applications. Available in various cycle times to meet specific needs of multiple applications. Actuators available in 12-Volt DC with On/Off and Regulating valve control.

Designed to perform operation essential fluid control applications in extreme conditions. Constructed with solid state components for increased durability and maintenance-free performance. UV-modified, glass-filled nylon housing is durable, impact-resistant, provides long life and lower maintenance costs. Waterproof actuator housing meets the IP68 rating of the ISO 60529 standard degree of protection provided by enclosures against water intrusion. Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extends actuator life.

Designed with extreme precision in mind. Instantaneous On/Off control with a standard port ball valve for unparalleled reliability and peace of mind. 1⁄4" and 3/8" standard port motorized ball valves. Lid Options: Deutsch receptacle or M12 connectors. ZIPVALVE - ¼"-?".

Designed with precision in mind. KZValve’s innovative design allows for the most versatile valve configuration options yet. 1⁄2" full port 2-Way motorized valve. Valve body: Polypropylene, glass-filled. Ball: 316 stainless steel. Stem: 316 stainless steel. Valve seat: PTFE. Stem seal: Viton™.

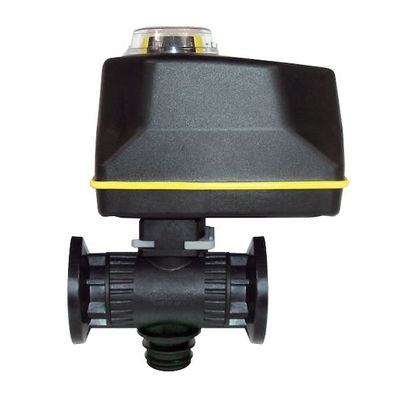

Designed with precision in mind. KZValve’s innovative design allows for the most versatile valve configuration options yet. 1⁄2" full port 3-Way motorized valve. Valve body: Polypropylene, glass-filled. Ball: 316 stainless steel. Stem: 316 stainless steel. Valve seat: PTFE. Stem seal: Viton™. Compact design weighing only 19 ounces, which allows for more options when mounting. 90° and straight hose barbs, FNPT hairpin fittings and flanged connections provide a vast number of plumbing solutions. Valves are made for actuation with a KZValve Waterproof EH7 Actuator providing longer valve and actuator life. EH7 Electric Actuator housing is rated NEMA 6P (waterproof) to protect internal components from corrosion and extends actuator life. EH7 Electric Actuator housing meets the IP68 rating of ISO 60529 standard degree of protection provided by enclosures against water intrusion. Available in various cycle times to meet specific needs of multiple applications.

3⁄4", 1" and 11⁄2" full port valves. Valve body: Polypropylene or nylon. Ball: 316 stainless steel. Stem: 316 stainless steel. Valve seat: Virgin PTFE. Steam Seal: Dual Viton™ O-ring. Body seals: EPDM. Available with FNPT. Quick hairpin outlet available on 1" valve. UV modified, glass-filled nylon housing is durable, impact resistant, provides long life and lower maintenance cost. Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extend actuator life. Actuator housing is ignition safe (Rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection.

Polypropylene 2-way, full port, stainless steel ball, 2-section, 1-piece, Y-manifold, flange clamp, ball valve, 12 volt DC motor. Maximum PSI: 150 psi at 70° F (Polypropylene).

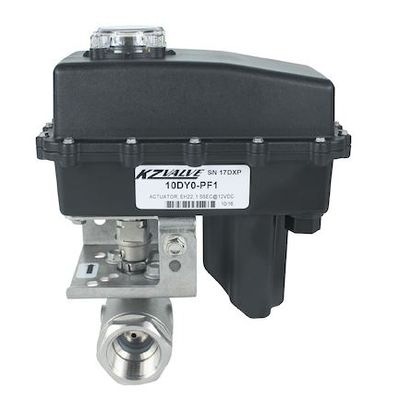

1⁄4"-3⁄4" and to 1 1⁄2"-2" vented 2-Way stainless steel valves. Valve body: CF8M stainless steel. Ball: 316 stainless steel (vented). Stem: 316 stainless steel with EPDM O-ring. Seat: Molecularly Enhanced Virgin Teflon® (ME-PTFE). Stem packing: Adjustable molecularly enhanced virgin Teflon® (ME-PTFE). UV modified, glass-filled nylon housing is durable, impact resistant, provides long life and lower maintenance cost. Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extend actuator life. Actuator housing is ignition safe (Rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection.

Engineered for actuation and designed to work with the KZValve actuators. 2" and 3" cast iron valves. 4" and 5" aluminum valves. Disk: 316 stainless steel. Stem: 316 stainless steel. Valve body: Cast iron or aluminum. Seat: EPDM (BUNA or Viton™ available). UV modified, glass-filled nylon housing is durable, impact resistant, provides long life and lower maintenance cost. Waterproof actuator housing is rated NEMA6Ptoprotectinternalcomponentsfrom corrosion and extend actuator life. Actuator housing is ignition safe(Rated NEMA 7D) and meets the USCG Electrical Systems Standard to support user and environment protection.

Switch membrane is UV-coated to extend the life of the controller. Sealed, waterproof case protects internal components and extends controller life. Glass-filled nylon case is durable and impact-resistant, providing long life and lower maintenance costs. Easy-to-calibrate controller allows the user to make fast control adjustments for multiple applications. Long lasting, flush switch membrane is ergonomically designed and user friendly to increase user efficiency. Compact, lightweight design allows use in space-constrained applications.
