L.A.B. Equipment Inc. products

L.A.B.’s Hydraulic Vibration Test Systems help you design high quality, cost-effective products and shipping containers by accurately measuring sensitivity to sine or random vibrations.  Field-Test Systems are specifically designed to meet a wide range of ASTM, DOT, ISTA, 3A, ISO and federal standards for vibration testing.  Our hydraulic hydraulic vibration test systems are ideal for a wide spectrum of testing applications ranging from sine sweep tests to the most complex data real time simulation, or random reproduction applications.

L.A.B. Equipment, Inc.’s, Transportation Simulators are used to determine the ability of packages and products to withstand shock and vibration encountered during the following course of typical handling and transportation: In-plant handling and warehousing, shipping, distribution warehousing, and final shipping.

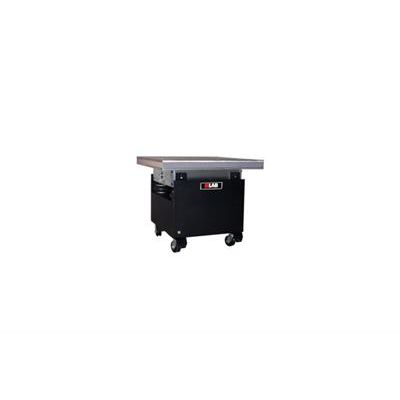

L.A.B. VibraTest™ Series of mechanical shakers with a typical frequency range of 8-60 Hz, provide a low-cost approach for testing electronic products and components for loose solder connections and hardware failures. AMC+ (Advance Machine Control) comes standard with our VibraTest™ Series, this feature expands the capabilities of the machine even further.

The AutoShock-II is a fully automated series of shock test systems used to measure and identify product fragility levels and evaluate protective packaging. With the simulation of real world shock pulses and impact energy levels, manufacturers can systematically test and optimize product design and packaging. L.A.B. Equipment, Inc.’s fully automated computer controlled shock and data analysis test systems are the critical path in accomplishing this optimization.

The need for products to survive various shock levels in an operating environment requires in-house testing of products during the design and evaluation stages. L.A.B. Equipment, Inc.’s SD-series of mechanical free-fall test systems produces accurate and repeatable half sine, square-wave and sawtooth pulses in accordance with military and industry specifications.

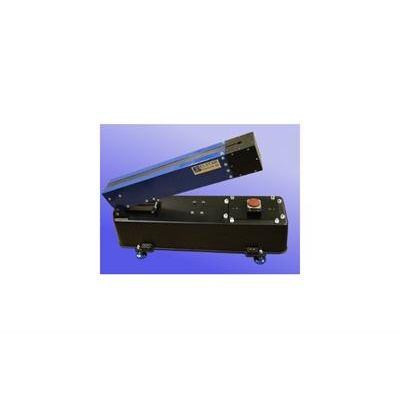

The STM5 has been developed to meet the shock testing requirements of the small components industry. Several machines have been delivered to watch manufacturers in the field of production quality control together with research and development. Test items are mounted on a 150mm cube which allows for testing multiple components to be tested in three axis. This machine is unique in our product line in having a dynamically tuned beam pivoting at one end, this construction allows resonant free testing down to at least 0.3ms. Beam lifting is achieved by a built in pneumatic ram which is then accelerated down allowing the beam to free fall. Through utilisation of timer counters coupled to high precision valves controlled by our IMPALA software, this machine generates highly repeatable shocks at a rate of up to ~60/minute.

The STM10P is the smallest of our flat bed shock machines offering cost effective shock testing up to 1400g. Several machines have been delivered to the watch industry and to automobile component suppliers in the field of production quality control together with research and development. Test items are mounted on a 320x250mm aluminium table which can be adapted to interface with quick release platforms for minimum setup time on the production line. Table lifting is achieved by a built in pneumatic ram which is then accelerated down allowing the table to free fall, or accelerated with flexible bands. Through utilisation of timer counters coupled to high precision valves controlled by our IMPALA software, this machine generates highly repeatable shocks at a rate of up to 60/minute.

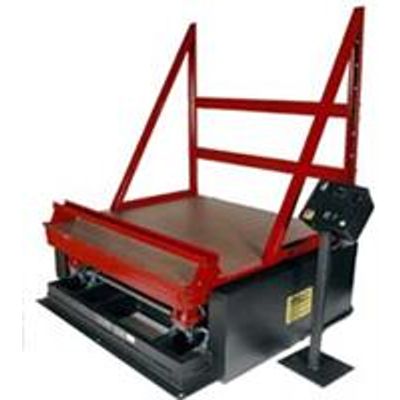

Extra large free-fall drop testing is now available; introducing the MAXDROP SERIES. Designed to provide repeatable drop testing on the largest test products and packages ever.

Precision drop testing at an affordable price. We call it the ACCUDROP 500 drop tester. This drop tester represents the ultimate in product and package performance testing and is designed to meet a wide variety of global testing needs.

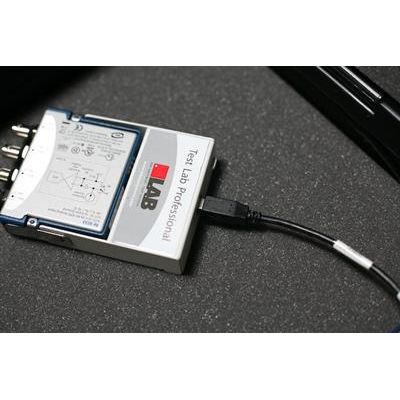

TLP is a Windows 8 based data acquisition system designed to complement any drop, shock, and vibration package test system. TLP provides the ability to accurately capture, analyze, and provide quantitative results of your product and package testing. TLP is critical in assessing your packaged systems performance in the distribution environment.
