Labotect Labor-Technik-Gottingen GmbH products

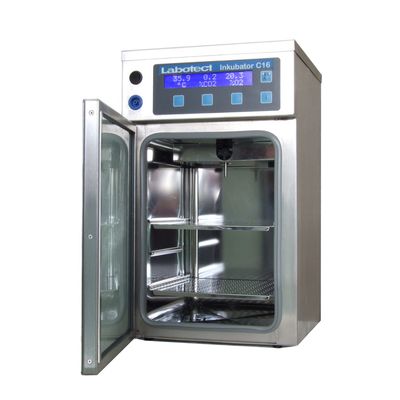

REF 14209 (without O2 control). REF 14452 (with O2 control). Incubator with an inner volume of 16 liters. Advantages of C16: Approved medical device. CO2 sensor: Dual beam infrared sensor. Very precise measurement. Very short recovery times. Long-term stable. Direct Heating: Independent over-all heating of inner walls and door. Homogeneous temperature distribution in the interior. Very short recovery times. Very compact and space saving construction.

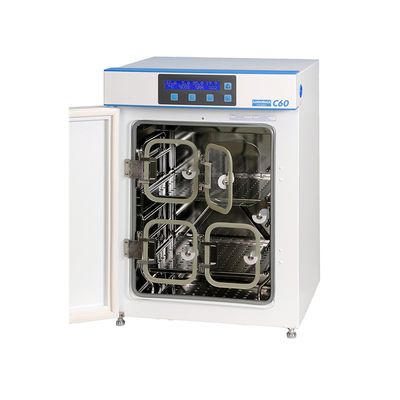

REF 14093, Incubator with an inner volume of 60 liters. Advantages of C60: Approved medical device. Active sterile humidity: External water reservoir, Distilled water is vaporized at 120 °C, Minimized risk of contamination, Humidity sensor (rH), Very fast recovery. CO2 sensor: Dual beam infrared sensor, Very precise measurement, Very fast recovery, Long-term stable. Direct heating: Independent six-sided direct heating, Homogeneous temperature distribution in incubation chamber, Very fast recovery. Optional: O2-control, Subdivided inner glass door with 4 small doors, Lockable front door, Access port, PC software LaboDat+.

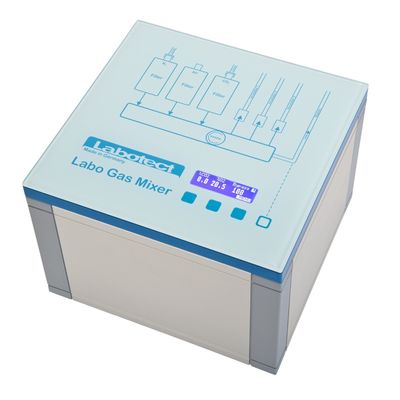

REF 15583. No necessity for purchase of mixed gas bottles any more! Advantages of Labo Gas Mixer: Provides mixed gas (CO2, N2 and atmospheric oxygen) for incubators, Individual setting of CO2 and O2 concentration, Connection for CO2 and N2 gas bottles, O2 will be retrieved from ambient air, Integrated In-Line-Filters (exchangeable), Mixed gas supply for up to 3 Labo C-Tops. Bypass for other external devices: Mixed gas supply of incubation chambers used with microscopes, External control of CO2 concentation by use of Labotect InControl. Anytime adjustable concentration of required mixture of gases. Convenient glass control panel.

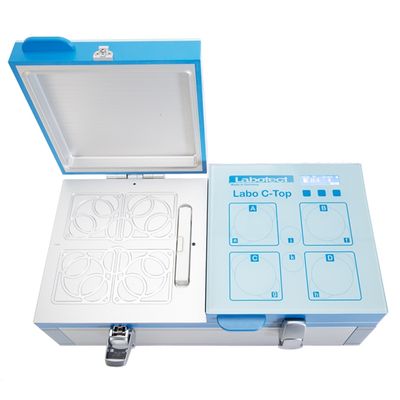

REF 14876. Benchtop incubator for up to date, individual cell cultivation, Advantages of Labo C-Top: Approved medical device, Two independent and separate incubation chambers, Parameters (gas flow, temperature) can be adjusted individually, Optimized gassing with premixed gas, Optimized temperature distribution by double heated chamber from top and bottom; Very fast heating up and recovery times, Reliable humidity system, Current value of relative humidity is displayed (% rH), Convenient glass control panel, Space saving.

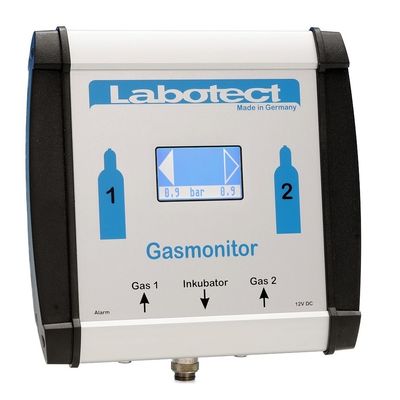

REF 14782. Automatic changeover unit. Gas monitoring for CO2, N2 and mixed gas (max. 21 % O2). Monitors the gas supply and switches over automatically to second cylinder if supply is exhausted. Ensures continuous gas supply without interruption. Monitoring of gas pressures. Optical and acoustical alarm if pressure is too low or too high. Graphic display with touch screen.

REF 15971. For the creation of two different adjustable gas oulets out of one gas source. Neccessary for the fluctuation-free operation of the Labo Gas Mixer (continuous gas consumption) if the same gas source is used to provide gas for CO2 incubators (pulsed gas consumption). Adapted for gas supply by gas bottle with gas pressure reducer or facility installed gas supply. Suitable for operation in various environments where different gas pressures need to be generated from one supply source.

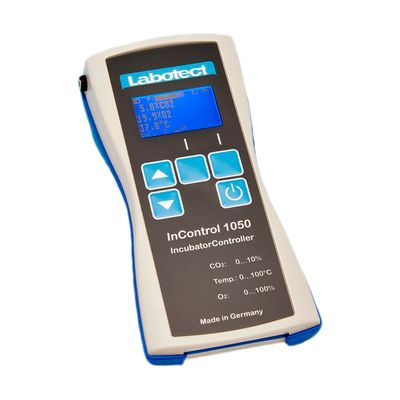

REF 14709. Independent measuring device for control and evaluation of CO2, temperature and O2. Accurate measuring of CO2, temperature and optional O2. Single or continuous measurement in arbitrary intervals. Measurement and documentation of multiple incubators. Documentation of measurements with date, time and incubator number. Easy menu navigation. Data-Download via USB; PC software DataVISUAL`09 incl. Continuous operation by Li-Ion battery or mains adapter possible.
