LAP GmbH products

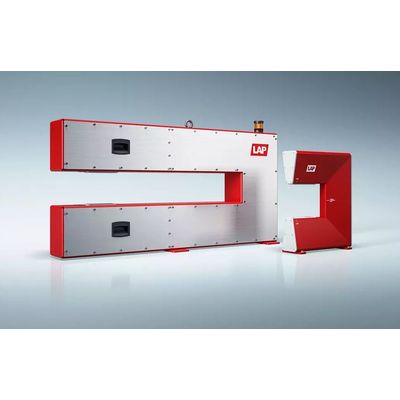

CALIX - our solution for non-contact thickness measurement of flat products. Key figures: 1090 - mm measuring depth. ±2μm - accuracy. >14 - years of service at customer site. 2 - laser class. Your guarantee of quality for the thickness measurement of sheet metal and strip steel. For the manufacturing of a perfect cold strip, many factors are crucial. Our measuring frames specifically check the thickness-related quality parameters of the strip steel or steel sheet. Free of radioactive radiation, laser sensors are used in the cold strip areas that usually do not require protective measures for laser class 2. The installation of our measurement systems is quick and uncomplicated for our customers. The CALIX is integrated into the line with its C-shaped frame across the material flow.

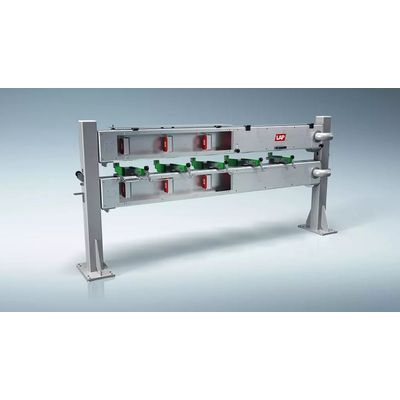

LAP`s laser gauge for straightness measurement of bars and tubes. Key figures: 0.1 - mm per meter accuracy. 140mm - max. material diameter. 8m - max. material length. 800Hz - measuring rate. Precise straightness measurement of round workpieces: With our innovative laser technology, you can check the straightness of a round profile inline and with a single measuring routine. The measuring frame with will be installed directly in your existing line and contains at least three pairs of measuring sensors. The object rolls through the measurement system in the inspection process and is scanned. The measurement result shows the deviation of the straightness in mm related to a reference length of one meter. Optionally, you can determine additional parameters such as diameter and ovality of the object.

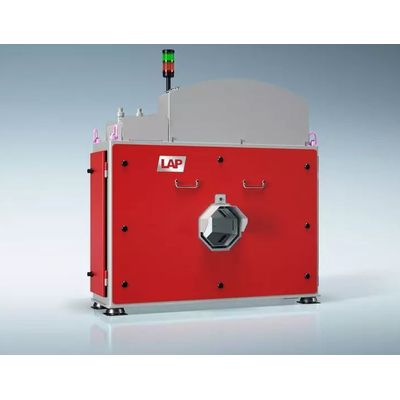

3D measurement of rolled long products by means of laser light section sensors. Key figures: 360° - profile capturing. 4 - cameras. 500mm - max. measuring range. 2000Hz - measuring rate.
