LAP srl products

SMP pumps (SMP MP), powered by renewable energy sources, and is a new range coming from the SMP pumps with built-in inverter. SMP pumps may be powered by AC or DC with a wide range of operating voltage (90 - 265 VAC / 90 - 340 VDC). This means that SMP MP pumps can be connected to solar panels, batteries, wind turbine and diesel generator. A special software algorithm allows for adjusting the hydraulic performance to each source and to the available power while maximizing the pumped water.

The VSP systems are created to meet the widest variety of pumping applications based on photovoltaic energy. The combination of VASCO Solar inverters (protection degree IP65 - NEMA 4) with the complete range of stainless steel submersible pumps from 4" to 10", give birth to a solution of absolute quality, unique for its reliability, variety and performance. Whatever the demand for water, there is always a VSP system that can satisfy it.

Max. contents of solid : 40 g/ m3. Max. working time with closed outlet : 4 minutes. The hydraulic working characteristics have been taken with water at 15° C, at the atmospherical pressure of 1 bar and they are guaranteed according to ISO 9906 Degree 2. Annexed A for product line pumps and for pumps with required power lower than 10 KW. Pumps in standard execution are fitted to vertical installation; horizontal installation on request. Hydraulic characteristics of catalogue do not include the loading losses in non-return valves. On demand we may produce special pumps and with different

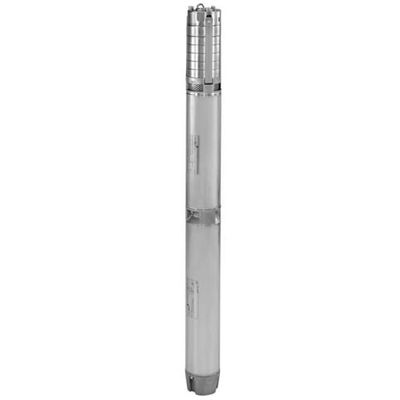

Submersible multistage centrifugal pumps for 4” wells. Check valve built into the delivery outlet. Pump flange for coupling with motors are made according to NEMA standards. Most common applications are civil and agricultural.

Motor range versions: Single Phase: 0.37kW (0.5hp) to 0.75kW (1hp), 220-230V / 50Hz (or 60Hz). Three Phase: 0.37kW (0.5hp) to 1.10kW (1.5hp), 380-415V / 50Hz - 460V / 60Hz. Other voltage and frequencies available upon request.

Motor range versions: Single Phase: 0.37kW (0.5hp) to 0.75kW (1hp), 220-230V / 50Hz (or 60Hz). Other voltage and frequencies available upon request.

Motor range versions: Single Phase: 0.37kW (0.5hp) to 4kW (5.5hp). 220-230V / 50Hz (or 60 Hz). Three Phase: 0.37kW

Motor range versions:  Single Phase: 0.37kW (0.5hp) to 1.1 kW (1.5hp), 220-230V / 50Hz (or 60Hz). Other voltage and frequencies available upon request.
