Lechler Inc. products

Air Nozzles - Flat Air Jet Nozzles

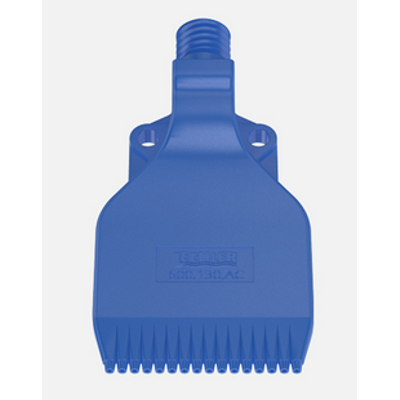

Lechler - Model 600.130.S2/56 Series - Multi-Channel Flat Air Jet Nozzles

The multi-channel flat jet nozzles of the 600.130 series generate a continuous powerful air stream. The noise level and air consumption remain low even at higher air pressures. Since the nozzles are made completely of POM or natural PP, they are also suitable for applications in the food industry or electroplating sector.

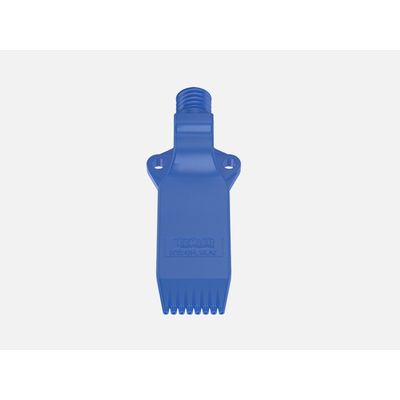

Lechler - Model 600.484.56 Series - Multi-Channel Flat Air Jet Nozzles

The multi-channel flat jet nozzles of the 600.484 series generate a compact, powerful air jet. Thanks to its narrow design, this nozzle out performs with its low air consumption and low noise level. Since they are made completely of POM, these nozzles are also suitable for applications in the food industry.

Air Nozzles - Round Air Jet Nozzles

Lechler - Model 600.326.5K/600.725.5K Series - Multi-Channel Round Air Jet Nozzles

The multi-channel round jet nozzles of the 600.326/600.725 series generate a powerful, circular air jet. The noise level and air consumption remain low even at higher air pressures. The special geometry at the nozzle outlet prevents air penetration into human skin. These nozzles comply with the OSHA standards.

Lechler - Model 600.326.3W Series - Multi-Channel Round Air Jet Nozzles

The multi-channel round jet nozzles of the 600.326 series generate a powerful, circular air jet. The noise level and air consumption remain low even at higher air pressures. The zinc version permits use at increased pressure and temperature. The special geometry at the nozzle outlet prevents air penetration into human skin. These nozzles comply with the OSHA standards.

Flat Fan Nozzles - Low Pressure Flat Fan Nozzles

Lechler - Model 632/633 Series - Low Pressure Flat Fan Nozzle

Standard design with conical, self-sealing thread connection. Stable spray angle. Uniform, parabolical distribution of liquid. Spray headers equiped with these nozzles show an extremely uniform total distribution of liquid. Applications: Spray cleaning, surface treatment, filter cleaning, belt cleaning, lubricating, coating.

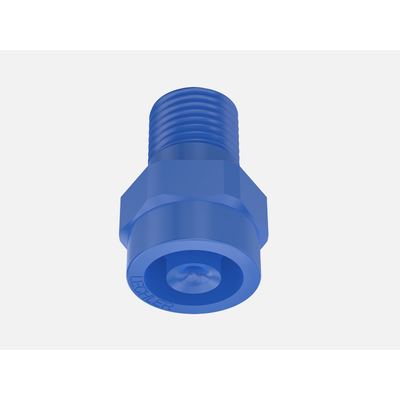

Lechler - Model 610 Series - Low Pressure Flat Fan Nozzle

Compact design, suitable for narrow installation conditions. Stable spray angle. Uniform, parabolic distribution of liquid. Applications: Cleaning installations, cooling headers, spray headers.

Flat Fan Nozzles - High Pressure Flat Fan Nozzles

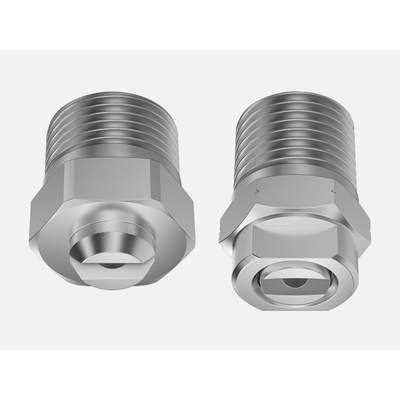

Lechler - Model 602 Series - High Pressure Flat Fan Nozzle

Sharp, uniform flat fan with an extremely narrow spray angle. Applications: High pressure cleaners, steam jet cleaners.

Lechler - Model 608 Series - High Pressure Nozzle

Sharp, uniform flat fan with an extremely narrow spray angle. Applications: High pressure cleaners, steam jet cleaners.

Full Cone Nozzles - Axial-Flow Full Cone Spray Nozzle

Lechler - Model 460/461 Series - Axial-Flow Full Cone Spray Nozzle

Very uniform spray pattern. Large free cross-sections, due to optimized x-style swirl insert. Applications: Cleaning and washing process, cooling of gaseous fluids and solids, surface spraying, spraying onto mats in air washers, improving of chemical reactions.

Full Cone Nozzles - Tangential-Flow Full Cone Spray Nozzles

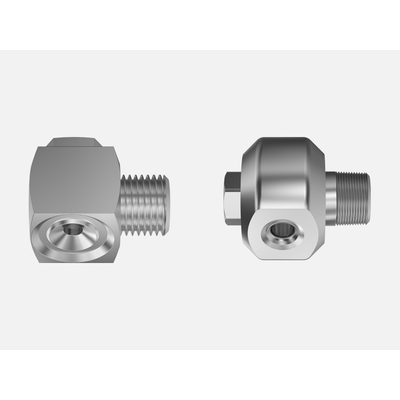

Lechler - Model 422/423 Series - Tangential-Flow Full Cone Spray Nozzle

Tangentially arranged liquid supply. Without swirl inserts. Non-clogging. Stable spray angle. Uniform spray. Applications: Cleaning and washing process, cooling of gaseous fluids and solids, surface spraying, spraying onto mats in air washers, improving on chemical reactions, continuous casting, foam control.
