Lemac Corporation products

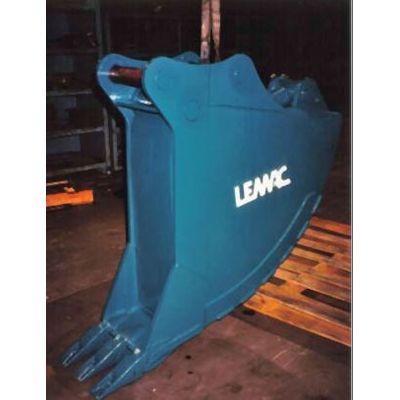

This excavation bucket is available in a wide-range of widths and capacities. The main body is quenched and tempered alloy steel 130,000 psi min yield. Cutting edge, lower sidecutter sections, wear strips, and side wear plates are all constructed of 360-440 BHN. Notice the unique wear strip configuration? The outer wear strips are rolled vertically around the curvature of the bucket and and then center strips are mounted horizontally between them.

This bucket is available in a wide-range of widths and capacities. Inside the wider models, you`ll find a reinforcing web that adds rigidity to the bucket. The heat-treated 400BHN base edge is cleverly drilled and counter-bored to guard the nuts and bolts from wear which, in turn, creates a smooth contour inside. The optional single or triple sectioned bolt-on edge is reversible for twice the life! Also, take a look at the heat-treated 400BHN leading edge guards. Drainage holes are also available, by request.

Lemac Hydraulic Ejector Buckets have a hydraulic driven false wall that, when activated, can cleanly dump the excavated material from inside the bucket. This application is great for digging and trenching, especially when laying pipe or wiring. The most common material excavated with this bucket is clay and mud but can be beneficial for nearly any application.

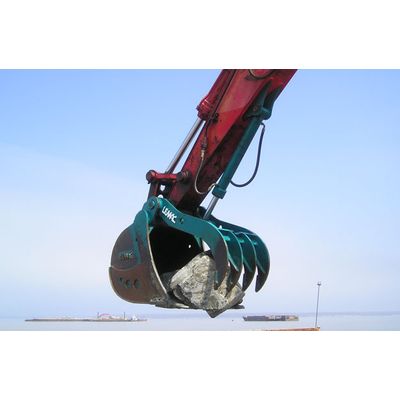

LEMAC BUCKET CLAMPS are available in multiple tine configurations for meshing with any bucket with any number of teeth. Also all LEMAC CLAMPS are available in HYDRAULIC and MECHANICAL versions. The entire structure is manufactured of quenched and tempered alloy steel 130,000 psi min yield and 360-440 BHN. The curved tine design provides greater capacity and promotes better picking ability and load retention, as well. The exclusive double ear design prevents damage to the main pin. Also, included is a heat treated alloy steel pin that replaces the machine`s stick pin. The main pivot is fitted with bearings and seals. The stay arm adjusts to three working locations and allows the clamp to be stored conveniently when not in use. Auxiliary kits are available, by request.

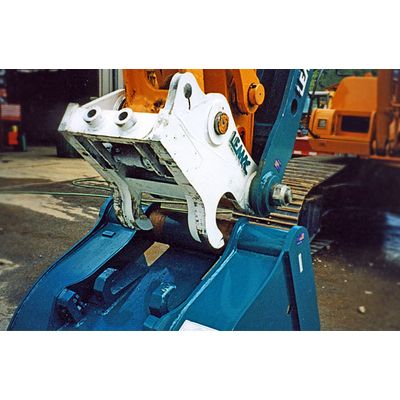

The LEMAC PIN-GRIP QUICK-COUPLER is available in both hydraulic and mechanical versions. The hydraulic version comes complete with all necessary controls for installation and operation without exiting the excavator cab. Average attachment changes only take minutes! Each LEMAC PIN-GRIP will pick up virtually any pin-on attachment designed to the OEM specifications for ear dimensions and clearances.

The LEMAC QUICK-CHANGE QUICK-COUPLER is available in hydraulic and mechanical versions. The hydraulic version comes well equipped with all the essential controls for installation and operation without even leaving the seat of the cab. Make attachment changes without collecting wasteful downtime by making attachment changes in less than a minute. With dedicated attachments and its ultra compact coupler design, machine performance and breakout force is always preserved.

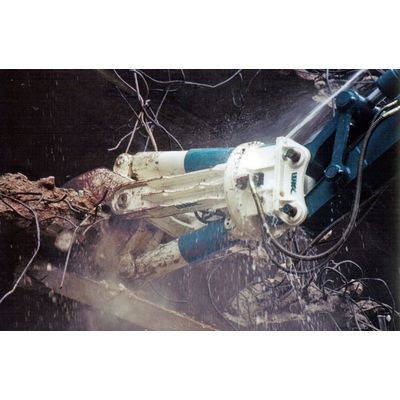

The LEMAC CONCRETE CRUSHER is a rugged attachment that not only crushes concrete but also removes and cuts rebar.

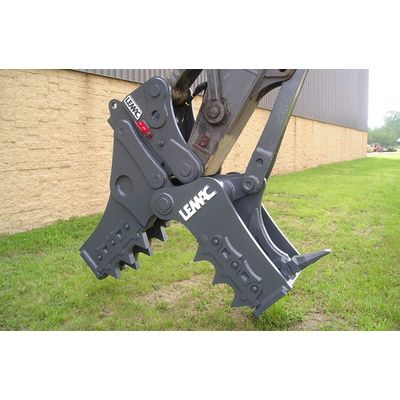

The LEMAC DEMOLITION PROCESSOR combines a powerful twin cylinder design with a unique jaw configuration to deliver both quick demolition and efficient processing of reinforced concrete structures. The exclusive single piercing tooth on one jaw concentrates the crushing force of the processor into one intense point, enabling initial breakage of sections which would otherwise be impossible.

The Multi-Quick Processor for excavators with 18t-25t operating weight is the ideal tool for demolition operations. Depending on the type of mounted jaws the tool can be used for primary and secondary demolition. One attachment, different applications. There are different types of jaws available for easy mounting on the processor: Combi (C)-, pulveriser (P)-, steel (S)-, demolition (D)-, and tank (T)-jaws. Jaws and processors are available individually. Hereby all wear parts such as teeth and cutting blades are exchangeable on site.

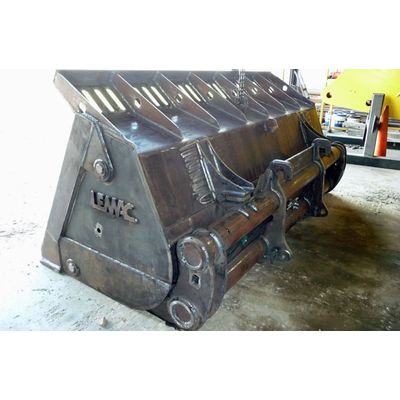

The LEMAC HEAVY DUTY HI-TIP BUCKET can be manufactured from 1.0 cubic meter to 9.0 cubic meter capacities. This useful bucket increases the dump height of your wheel loader. You will no longer need ramps to fill trucks at every single jobsite. The LEMAC HEAVY DUTY HI-TIP BUCKET ships complete with a reversible bolt-on edge and side mounted rams. All LEMAC attachments are custom painted with preferred color requested.
