Li Jin Industrial Co.,Ltd products

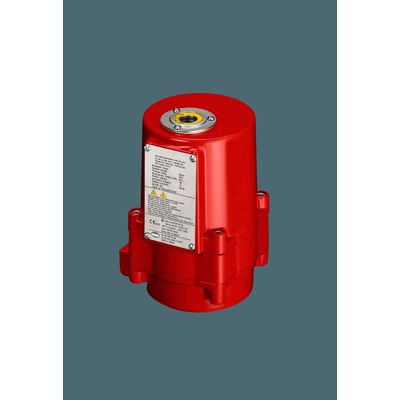

ISO 5211 Flange connection is used for mounting actuators to valves and a raised. The most distinctive design is clutch-less manual override (except BM-2 and OM-A). The clutch-less design enables the actuators to be changed from electrical control to manual operation without clutch or brake to achieve easier. A planetary gearing is utilized with self-locking to prevent valves from being back. Environment temperature:-30? ~ +65? / -22? ~ +149?. Humidity:30% ~ 95%? Series quarter-turn electric control valve actuators are designed to provide torque ranges from 35N?m to 4500N?m. The users determine a proper model per load requirements.

S series spring return electric actuator provide torque from 50N.m to 260N?m. Enclosure meet specifications of IP67 & NEMA 4X ( Water-proof and dust-proof. ) Finished with dry powder coating.

OME Explosion-proof quarter turn electric actuators offer torque ranges from 35 N•m to 1,500 N•m.

SE series spring return electric actuator provide torque from 50N.m to 260N?m. SE series is structured as flame-proof and combustible dust-proof.

Nominal Size 1/2”~ 24”. Class Type JIS, PN, ANSI End Connections. Thread Ends, Wafer Type, Flange Type Body Material SUS304, SC. Seat  PTFE, EPDM. Control Type Pneumatic, Electric, Hand wheel.

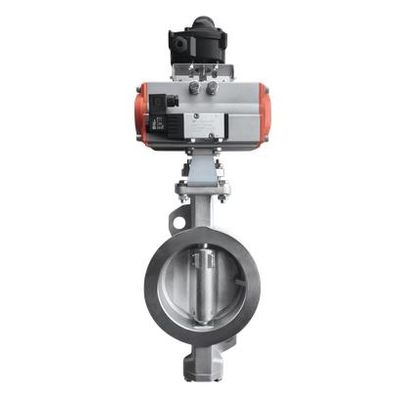

Nominal Size: DN25~ DN1600. Pressure Rating: PN10?PN16?200PSI, 250PSI?300PSI?10K. End Connections: Wafer Type, Flange Type. Body Material: WCB, CF8, CF8M. Seat: EPDM, NBR, VITON, PTFE. Control Type: Pneumatic, Electric, Hand Wheel. Design Standard: ISO 5752, MSS SP-67, API609.

Li Jin provides butterfly damper especially applied in VOC treatment system, boiler, SCR systems...etc. Dampers can be made by casting or customized in various diameters. With its low torque, low leakage ( Class I ) characteristic, it is widely used in different industries.

Customized three way damper, dimension follow existing system. Leakage: CLASS I. Operation Temp.: AMB.~ 800°C. Material: SUS304, SUS316, or special steel. Control type: Electric, Pneumatic, Manual. Mounting: ISO 5211. Sealing Type: a. Metal to Metal ; b. PTFE to Metal.

BFM connector spigot set consists of connector and double spigot, by its patented snap in design, BFM^®connector eliminates the problems associated with traditional hose clamp systems.

It is available for EZ-In (Easy-In) kits for installation to reduce construction costs.
