Liberty Process Equipment, Inc. products

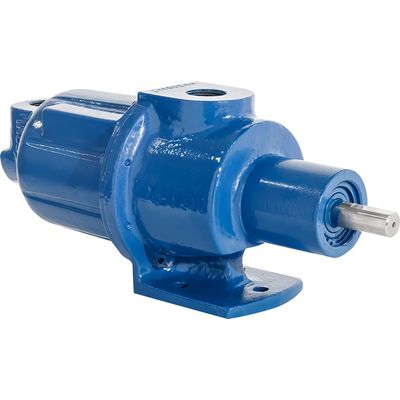

The Liberty Process American AP-15 Series Progressive Cavity Wobble Stator Pump from Liberty Process Equipment offers the best value available on the pump market for a progressive cavity pump for flows up to 1.9 GPM and pressures up to 150 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price. The Long-Coupled version is available in either Cast Iron or 316 Stainless Steel with standard Buna Nitrile Stator with options in Viton and EPDM and Stainless Internals with a hard-chrome plated rotor for long service life. In addition, the pump is available with a standard mechanical seal or can be upgraded to a hard-face mechanical seal for abrasion resistance.

The Liberty Process American AP-22 Series Progressive Cavity Wobble Stator Pump from Liberty Process Equipment offers the best value available on the pump market for a progressive cavity pump for flows up to 4.9 GPM and pressures up to 100 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price. The Long-Coupled version is available in either Cast Iron or 316 Stainless Steel with standard Buna Nitrile Stator with options in Viton and EPDM and Stainless Internals with a hard-chrome plated rotor for long service life. In addition, the pump is available with a standard mechanical seal or can be upgraded to a hard-face mechanical seal for abrasion resistance.

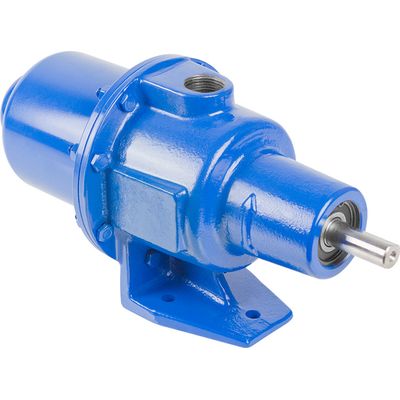

The Liberty Process American APM-15 Series Close Coupled Progressive Cavity Wobble Stator Pump from Liberty Process Equipment offers the best value available on the pump market for a progressive cavity pump for flows up to 1.9 GPM and pressures up to 150 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price.

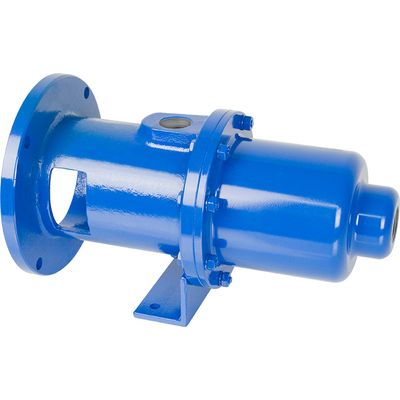

The Liberty Process American APM-22 Series Progressive Cavity Wobble Stator Pump from Liberty Process Equipment offers the best value available on the pump market for a progressive cavity pump for flows up to 4.9 GPM and pressures up to 100 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price. The Close-Coupled Version is available in either Cast Iron or 316 Stainless Steel with standard Buna Nitrile Stator with options in Viton and EPDM and Stainless Internals with a hard-chrome plated rotor for long service life. In addition, the pump is available with a standard mechanical seal or can be upgraded to a hard-face mechanical seal for abrasion resistance.

The Liberty Process American 33101L Series Progressive Cavity Wobble Stator Pump from Liberty Process Equipment offers the best value available on the pump market for a progressive cavity pump for flows up to 1.9 GPM and pressures up to 150 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price. The Long-Coupled version is available in Cast Iron with standard Buna Nitrile Stator with options in Viton and EPDM and Stainless Internals with a hard-chrome plated rotor for long service life. In addition, the pump is available with a standard mechanical seal or can be upgraded to a hard-face mechanical seal for abrasion resistance. The American Pump Series is offered in a Long-Coupled design for mounting on a baseplate with a standard motor. All pumps are offered "off the shelf" from our inventory for immediate shipment.

The Liberty Process American 33201L Series Progressive Cavity Wobble Stator Pump from Liberty Process Equipment offers the best value available on the pump market for a progressive cavity pump for flows up to 4.9 GPM and pressures up to 100 psi. The simple design of the wobble stator and just one universal joint give you the inherent advantages of a progressive cavity pump of low pulsation and shear, solids handling and viscous liquids at an affordable price. The Long-Coupled version is available in Cast Iron with standard Buna Nitrile Stator with options in Viton and EPDM and Stainless Internals with a hard-chrome plated rotor for long service life. In addition, the pump is available with a standard mechanical seal or can be upgraded to a hard-face mechanical seal for abrasion resistance. The American Pump Series is offered in a Long-Coupled design for mounting on a baseplate with a standard motor. All pumps are offered "off the shelf" from our inventory for immediate shipment.

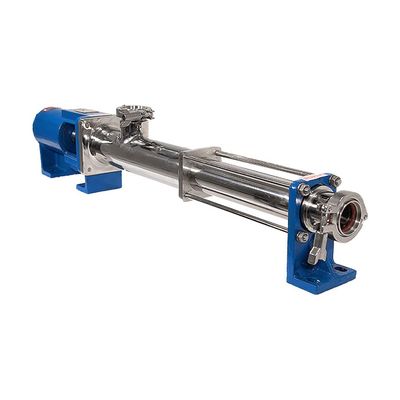

The Liberty Process Freedom 2FFL2.6 and 2FJL2.6 Series is your best choice for Sanitary Progressive Cavity Pump applications. Designed for food-grade installation, these pumps have been designed to handle fluids as thin as alcohol, spirits and soups to viscous icings, ciders such as apple cider, yeast and ice cream. The 2FFL2.6 series is an ideal solution for yeast transfer in the baking industry and comes with a 1-1/2" Tri-clamp connection standard. The Liberty Freedom Series of Sanitary progressive Cavity Pumps offer several important advantages over other types of positive displacement sanitary food grade pumps like Rotary lobe Pumps. Liberty PC Pumps have only one (1) shaft seal to maintain and do not have complicated complicated timing gears. Liberty Freedom Series Pumps are designed for quick disassembly for cleaning and sterilizing by hand. No additional tools for cleaning are required.

The Liberty Process Freedom 2FFL13 and 2FJL13 Series is your best choice for Sanitary Progressive Cavity Pump applications. Designed for food-grade installation,these pumps have been designed to handle fluids as thin as alcohol, spirits and soups to viscous icings, yeast and ice cream. The 2FFL13 series is an ideal solution for yeast transfer in the baking industry and comes with a 2" Tri-clamp connection standard. The Liberty Freedom Series of Sanitary progressive Cavity Pumps offer several important advantages over other types of positive displacement sanitary food grade pumps like Rotary lobe Pumps. Liberty PC Pumps have only one (1) shaft seal to maintain and do not have complicated complicated timing gears. Liberty Freedom Series Pumps are designed for quick disassembly for cleaning and sterilizing by hand. No additional tools for cleaning are required.

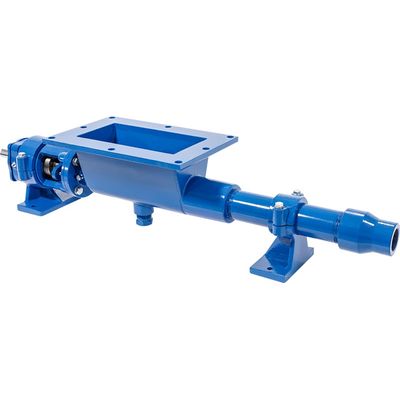

The Liberty Process Justice LJ3 Series Open Hopper Progressive Cavity Pump represents an ideal pumping solution for viscous solutions with high solids contents such as high-viscosity transfer in industrial facilities and other low-flowable, low volume pumping mediums. Flow rates of 0.86 GPM per 100 Revolutions (0.5 GPM to 5 GPM) at up to 225 PSI Oil are standard through the range of the series. The Justice Series offers a design of a heavy-duty auger mated to a rotor and stator for the most difficult pumping applications available today.The large rectangular feed hopper design easily accommodates your pumping medium while the non-pulsating design of the product produces a low-shear flow that conveys your medium along effortlessly. Solids in suspension of up to 50% are accommodated by the Auger design.

The Liberty Process Justice LJ4 Series Open Hopper Progressive Cavity Pump represents an ideal pumping solution for viscous solutions with high solids contents such as high-viscosity chemical transfer of liquids and sludge's in industrial facilities and other low-flowable pumping mediums. Flow rates of 2.02 GPM per 100 Revolutions (2 to 9 GPM) at up to 225 PSI are standard through the range of the series. The Justice Series offers a design of a heavy-duty auger mated to a rotor and stator for the most difficult pumping applications available today. The large rectangular feed hopper design easily accommodates your pumping medium while the non-pulsating design of the product produces a low-shear flow that conveys your medium along effortlessly. Solids in suspension of up to 50% are accommodated by the Auger design.
