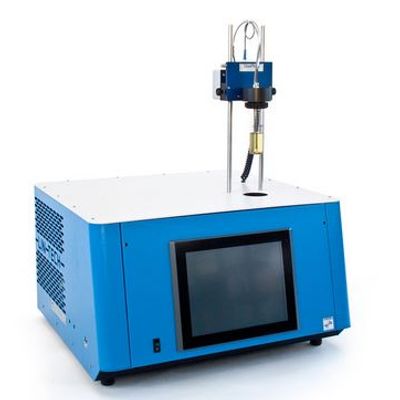

The sample is cooled down according to the methods while the clouds appearance is observed on the silver bottom of the test jar by means of an optical sensor. The measurement is done by reflection on the silver bottom of the test jar via a fast light detector. The signal from light detector is traded by the LabLink software. The dynamic measurement is performed regardless of the sample’s colour.

Metallic case structure painted with anti-acid products with double wall heat insulation.

Heating Device Unit - 600W.

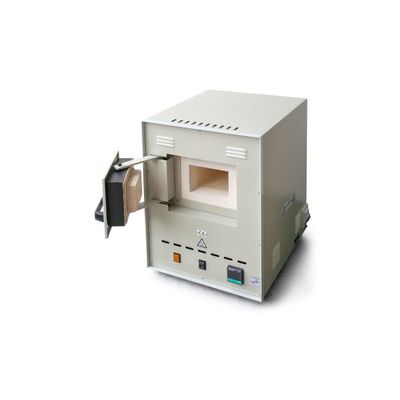

Muffle furnace for laboratory and tempering application; Insulation heat made in ceramics fibre in order to get a speed heating with a limited energetic consumption. Heating muffle unthreaded from the back,in an only cast of refractory cordieletic material to provide for thermal jolts. Resistors in Kanthal. Lateral opening door with pressure wedge and with a stop device for electric feeding when it opens, allowing the worker, during the loading and unloading of the muffle, to act with the utmost safety avoiding the contact with the burning part. Control panel is positioned on the furnace bottom containing a digital visualized thermoregulator and safety switch for system protection – Gefran 1200. Internal chamber made with ceramic fibres with direct-welded posterior exhaust for fume extraction. Max. temperature +1100°C in 40 minutes (heating rate 26-27 °C/min).
