Linux Magnetics products

The Magnetic Roller Separator by Vinayak InfoSoft is engineered to facilitate the separation of para magnetic and weakly magnetic particles from non-magnetic materials. These separators feature a compact dual-roll design, with one roll magnetized to induce a magnetic field. A conveyor belt carries ores through this field, assisted by a motor that controls belt movement. The device's operational efficiency is further enhanced by the vibration feeder which dispenses material at a calibrated rate, and adjustable roll rotation speeds to accommodate various material properties. These separators are equipped with magnets composed of rare-earth element alloys, known for their superior magnetic force. The custom-designed magnetic rolls generate very high magnetic fields and gradients, making this separator ideal for industrial applications where precise separation is essential.

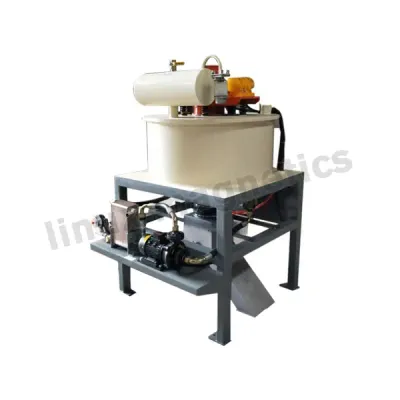

The Dry Powder Magnetic Separator is a specialized device employed to eliminate weakly magnetic iron oxides, crumb iron rust, and other impurities from fine powder substances. This tool is crucial in ensuring the purity of materials used in refractory ceramics, glass, and other non-metallic mineral industries, extending its application to medical, chemical, and food industries as well. The separator features a sophisticated design where its magnetic system comprises high-quality ferrite materials combined with rare earth magnetic steel, forming a ring-shaped chain closed magnetic circuit. Essential components include energizing coils made from copper tubes that are water-cooled internally, and magnetic matrices composed of ridged plates crafted from magnetic conductive stainless steel. These specialized design elements enhance its capability to purify materials effectively, supporting various industrial applications.

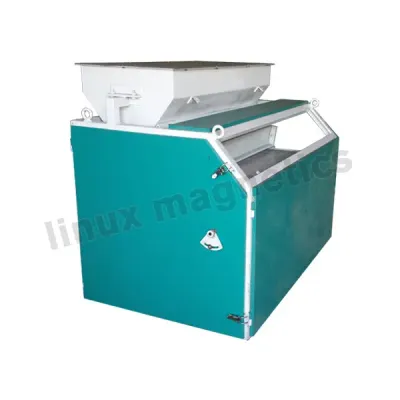

Eddy Current Separators play a crucial role in the efficient sorting of non-ferrous metals from waste materials. Utilizing a dynamic magnetic field, these machines effectively separate metals such as aluminum, copper, and brass from a product stream, including municipal solid waste and scrap residues. The technology operates on the principle that conductors can induce currents when exposed to a high-frequency alternating magnetic field. This technique is particularly useful for recycling applications where non-ferrous metals need to be isolated after the removal of ferrous materials by other magnetic systems. The separator generates a robust, alternating magnetic field on the sorting roller's surface, inducing eddy currents in the conductive non-ferrous materials, thereby enabling their separation. Known for their excellent sorting capabilities, these separators are available in various specifications to meet different industrial requirements.

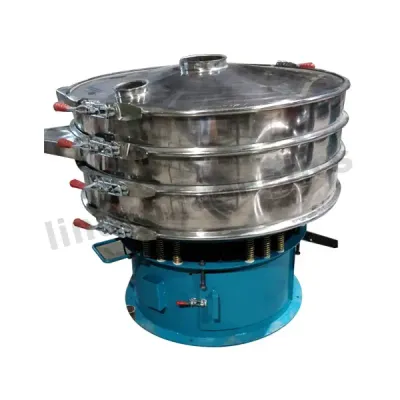

The Gyro Screen is a state-of-the-art circular screen designed to operate with an exceptional vibratory engine that offers multidirectional vibration to the screen assembly. Known for gyratory motion, this method is highly effective for screening applications. The complete setup includes a vibrating generating base that houses the vibratory motor and a screening assembly that can be equipped with either wire mesh or perforated sheets. Designed with multi-directional vibrators, the gyro screens successfully prevent sieve blinding. They operate on the principle of gyratory motion, making them one of the most advanced options for grading fine, wet, and challenging materials. These screens are engineered to handle various types of materials, including those that are heavy, light, dry, wet, or fine. The robust design ensures durability and efficacy, making them suitable for diverse industrial applications.
