Liquid Controls, Inc. - a unit of IDEX Corporation products

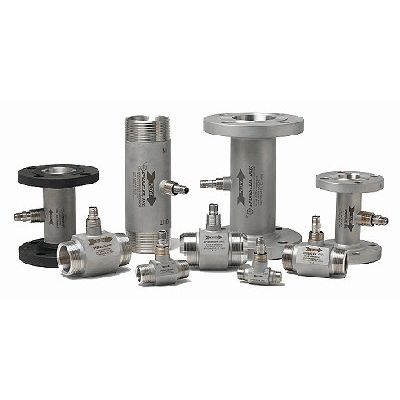

For your complete Liquid and Gas Flow Measurement needs and increased accuracy, efficiency, and  service life, Sponsler provides a complete line of high quality, precision turbine flowmeters to meet virtually all flow measurement applications.   Sponsler flowmeters respond to factors such as viscosity, corrosive media, extreme temperature, and hazardous materials. Sponsler flowmeters are available in stainless steel, corrosive series and feature a hydraulically balanced turbine for rugged, compact construction allows for the most accurate and reliable measurement available.

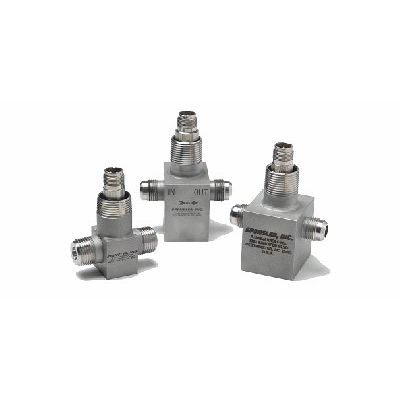

Twelve Overlapping Liquid Flow Ranges from .004 to 3 US GPM (15-100 cc/min). Gaseous Flowrate .003-1.33 ACFM, Repeatable Accuracy of +/-.25%. Custom and Standard Design. Stainless Steel Construction Standard. Variety of End Fittings. 30 mV Minimum Sine Wave Electrical. Signal Output.

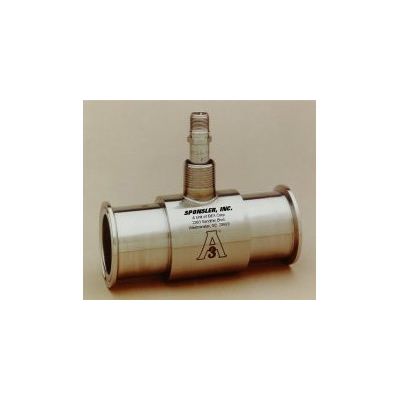

Sponsler`s 3A Sanitary Precision Turbine Flowmeters are constructed of 300 series stainless steel material. The Sponsler 3A Sanitary series Precision Flowmeter range in size from 3/4" to 4" and can be installed either horizontally or vertically with a variety of optional end-fittings to meet your needs.

Liquid Controls M-Series™ rotary motion positive displacement (PD) meters offer the ultimate in measurement accuracy for custody transfer of petroleum products, aviation fuels, LPG, and a broad range of industrial liquids. LC meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. The LC meter consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts

Meters provide exceptionally accurate service when using Liquid Controls` unique positive displacement metering principle, even under variable operating conditions (changes in temperature, pressure and viscosity). Provides the energy efficient and functional performance desired from an economical volumetric measuring instrument. Available with traditional mechanical seal or glandless magnetic driven pulse output device. A wide range of accessories are available to meet almost every metering need.

Liquid Controls steel-case MSA and MSAA-Series rotary motion positive displacement (PD) meters offer the ultimate in flow measurement accuracy for bulk custody transfer of petroleum products, aviation fuels, LPG, crude oil, petrochemicals, and a broad range of industrial liquids. They incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter.

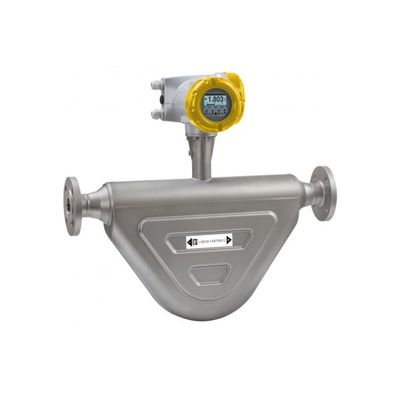

Highly accurate mass flow and density. Compact design . Ease of installation. Mass flow rate. Mass totalizer. Density. Concentration of fluids and gasses. Temperature . Not affected by entrained air.

Liquid Controls set out to develop a product from the ground up that would change the industry forever, but knew they couldn’t do it alone. It took nearly two years of close collaboration with industry leaders, customers, and end users to develop what is now considered the new benchmark in electronic meter registration.  The result is the CENTRILOGiQ® connected technology platform and the LCR.iQ®: the most powerful and scale-able electronic register platform ever produced. It features a bright high-definition display for easy visibility, durable construction to withstand the elements, large configurable smart keys, and requires little to no training to operate.  Further, the LCR.iQ® was awarded the 2019 iF Design Award by the International Design Federation its user-friendly design and demonstrated intelligent features in the Discipline of Product, Industry & Tools category.

Automatically switches to XL 2” display during delivery mode. Standard display mode returns when delivery is paused or completed. Easy to read at a distance. Built in keypad for set-up, calibration and preset deliveries – no lap pad needed!. In the field configuration setup allows simultaneously volume tracking, flow rate, and many other key values during delivery. Quick setup and operation with intuitive navigation screens. Comprehensive diagnostic package. Compatible with a wide selection of positive displacement flowmeters. Build-in keypad for setup, calibration and preset deliveries.

Liquid Controls LCR-II registration delivers consistent, reliable, and accurate metering data. Used in truck-mounted or fixed-site custody transfer applications worldwide.
