Load Cells Inc products

Tension load cell ATO-S-LCST-TJL-7 is the most common type of load cell for crane, crane limiter, hook scale, all the lifting equipment measurement and tension force monitoring. The installation of the tension load cell is very simple. Just tied the wire ropes to the holes at both ends of tension load cell, and keep the wire rope from falling off or breaking. Tension load cell has various capacities for choice, from 2 ton, 3 ton, 5 ton, 10 ton, 20 ton, 50 ton to 100 ton. Other capacities are also can be customized.

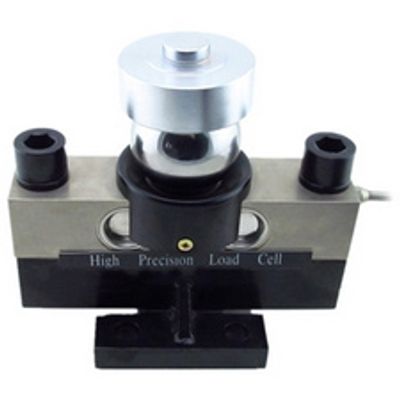

Shear beam load cell is a useful compression load cell for various electronic scales, such as weighbridge, dynamic truck scale, rail weighbridge, etc. Shear beam load cell has a combined indenter for automatic resetting and self-aligning. So customer no need to choose other load cell connections for their weighing system. It is very easy to install at the site.

Column type load cell is a compression load cell with high capacity. It can be widely used in pharmaceutical and chemical, coal metallurgical industry, and electronic truck scale, rail weighbridge, warehouse scale, hopper scale, etc. The elastic element of column type load cell can realize integrated design of elastic elements and swing posts. In other words, elastic elements and double spherical swing posts are integrated into one whole structure. Its elastic elements can also help automatically achieve self-alignment and self-spacing of the double-spherical swing post, decrease the loader height and improve stability.

S type load cell is a tension and compression load cell. There are two thread holes just in both ends of strain gauge load cell for mounting. S type strain gauge load cell 5kg to 7 tonS type load cell is widely used for hopper scale and mechanical scale automation renovation. S type load cell has customizable capacity from 5kg, 30kg, 100kg, 500kg, 1000kg, 2 ton to 7 ton.

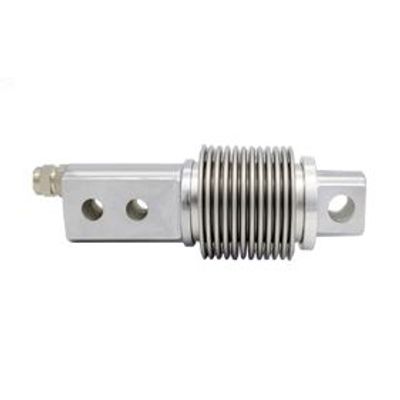

Beam load cell with bellows is a tension and compression load cell. It adopts bellows welding seal structure and cantilever shear beam elastic element. Beam load cell is filled with inert gas to obtain good anti-overload, anti-fatigue and anti-eccentric load capacity. Beam load cells with bellows have capacity range from 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg to 1000kg. Of course, beam oad cell capacity can be customized according to the requirements.

This time we will introduce a small load cell. It is a tension and compression load cell for force measurement, such as automobile braking force detection.

Single Point Load Cell 300g/1kg/20kg/100kg/300kg for Weighing Scale. Single point load cell is the most common load cell for weighing scale in the market. In the early 1980s, in order to cope with the contradiction of requirements (small range, large stiffness and high accuracy) of the electronic price computing scale for commercial use, elastic elements adopt the multibeam structure with a low appearance and a small percentage of materials.

Load cell controller is a digital panel meter for load cell in industrial process control. It can directly provide DC power supply to load cell. Load cell controller can receive mV signal from one load cell and display corresponding weight value in real time, or receive mV signal from load cell junction box, which has multi inlets for multi load cells and 1 outlet. ATO-S-DDC5-CHB is a 5 digit LED load cell controller. It can be used for weighing and force measurment, such as weight, impact force, tension and compression force. Load cell controller has functions like zero tracking, automatic zero clearing and tare measurment.

Load cell amplifier is also known as load cell transmitter. Because the strain gauge load cell can only output mV signal, and this signal is very small and can not be received by common system. So people have designed a dedicated amplifier for the strain gauge load cell, it is the load cell amplifier. The load cell amplifier is suitable for all strain gauge load cells, and can transmit mV signal to standard electrical signal, such as 0-5V/0-10V/4-20mA/0-20mA. Then the signal can be output to PLC, DCS and other systems.
