Load Trail LLC products

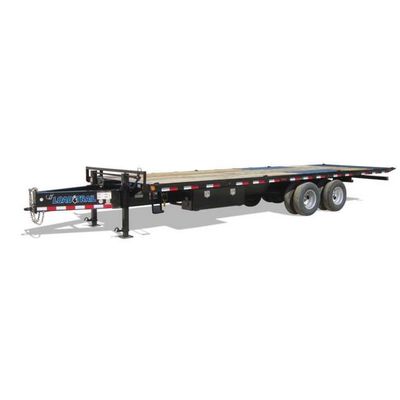

Dexter electric brake axles used are forward, self-adjusting. Axles are also available with hydraulic brakes. The standard tilt-able deck is 26 ft. The 26 ft model does not include a stationary deck. The stationary deck is available on models 28 ft + up. 2’ stationary deck is standard on the 28 ft model. The 4’ stationary deck standard on the 30 ft. model. 6’ stationary deck standard on the 32 ft model. 8’ stationary deck standard on the 34 ft model. All Power Up/Power Down hydraulic units include manual Gravity Down valve.

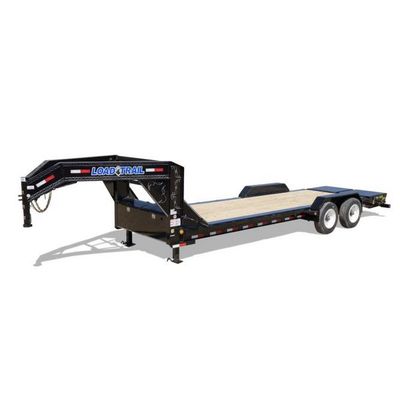

Electric brake axles are forward-self-adjusting. Whether you`re looking for a classic car hauler or an HD equipment hauler, we`re sure you`ll find exactly what you`re looking for in our car & equipment hauler lineup. Choose from tandem or triple axle models with 7,000 - 24,000 lb. G.V.W.R. ratings.

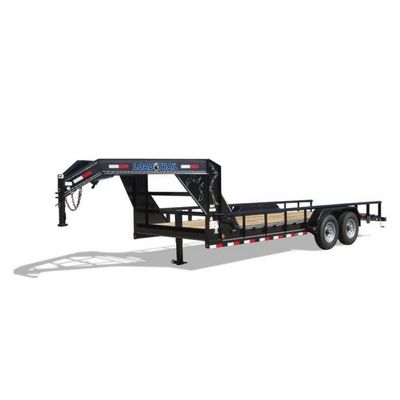

Electric brake axles are forward-self-adjusting. Models 16′ and down come with side slide-in ramps. Models 18′ and up come with rear slide-in ramps. Diamond plate drive-over fenders are standard on 102″ wide models. 16′ – 24′ models are built with a 6″ channel frame. 24′ – 36′ models & up models are built with an 8″ channel frame. 36′ – 40′ models are built with a 10″  I-beam frame. Tandem 10K jacks are standard on 24′ – 40′ models.

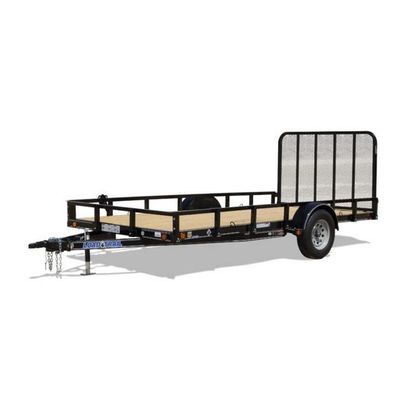

Axle options include straight/spring, drop/spring, or torsion with electric or hydraulic brakes. Drop and Torsion axles are only available on 60”, 77” & 80” wide models. Max deck width is 80” with the drop axle configuration. Overall deck length restrictions apply with dove tail configurations. The rub rail option is not available with removable side rail options.
