Loadcraft Industries, Ltd. products

Drive Train: Cat or Detroit (230 to 325 HP) Allison five speed transmission, Engine and transmission mounted in rubber on carrier for easy above-deck access, Engine cover for weather protection

Drive Train: Cat or Detroit Ser 60 (400 to 450 HP) Allison CLT 5961 six speed transmission (engine and transmission mounted in rubber on carrier for easy above-deck access). Engine cover for weather protection

Drive Train: Cat C15 or Ser 60 Detroit (475 to 540 HP), Allison CLT 6061 six speed automatic transmission, Optional 5610 Allison or equal (engine and transmission mounted in rubber on carrier for easy above-deck access), Engine cover for weather protection

Drive Train: Twin C15 or Ser 60 Detroit (475 to 540 HP Twin engine), Allison CLT6061 transmission (gear driven compound behind the transmissions), Engine, transmission, and compound mounted in rubber above deck for easy access, Pressure lubricated combination right-angle box/drop box for drive to drawworks, rotary drive, and rear bogies

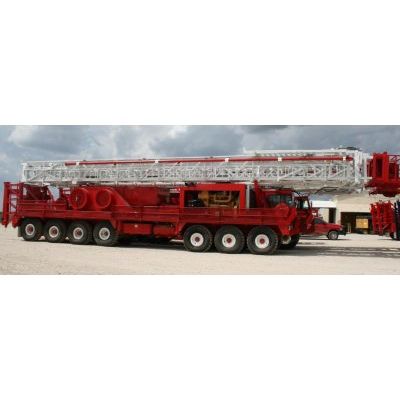

Carrier - Seven axle: Three front steering axles (rated at 22,000 lbs. each) have spring suspension, Rear tandem driving axles (rated at 50,000 lbs. total) have walking beam suspension, Third driver rear axle with air bag lift suspension is rated at 25,000 lbs. capacity, Pusher axles with air lift suspension is rated at 25,000 lbs. capacity

Demountable, forged steel brake rims are 42` diameter x 12` wide, Brakes are cooled by circulating water, Drum shaft diameter is 7`, Single line pull is 51,800 lbs., Outboard P0230 clutch, Wichita 325 Auxiliary brake standard

Two Tank Mud System (12` W x 8` H x 50` L): , 500 BBL suction tank - round bottom, 500 BBL solids tank - round bottom, 100 BBL pill tankTrip Tank/Gas Buster: One 8` W x 40` L Skid with: One 2 1/16` x 4 1/16` 5,000 lbs. choke (four 2 1/16` 5,000 lbs. valves, four 4 1/16` 5,000 lbs. valves, one cross, one 2 1/16` manual chokes) on one end of skid. One end of skid plumbed for 2` hydraulic super choke, One 50 BBL twin trip tank, Two 2` x 3` centrifugal pumps with 20 HP electric motors with 30` OD poorboy gasbuster in center that lays over on choke to transport Water Tank (10` W x 8` H x 40` L), 500 BBL water tank, Two 2` x 3` centrifugal pumps 20 HP, Water tank support dog house frame.

Drawworks: LCI-1500 Single Drum Electric, Drum Size 27 x 50, Brakes 54 x 12 Water Circulating. Auxillary Brake: Disc Model 336. Rotary Drive: 752 Independent Electric Drive. Mast: 147` x 1.0 mK (3 Section Free Standing), Crown – 10 or 12 Line String for 1 3/8” Wire Line, Adjustable Racking Board, 15,000` x 5` DP, Top Head Drive Rails Included, Mast Hydraulically Raised. Sub Structure: Parallelogram 30` SUB, Independent Rotary Drive for 37 1/2” Table, Rotary Beam for 25` Clear Height (2 ea. x 25T), 1,000,000 lbs. Rotary Capacity. Available Options: Traveling Frame, Substructure, Top Drive, Rotary Drive, Rotary Table, 500 Ton Block.

Drawworks: LCI-2000 Single Drum Electric, Drum Size 27 x 50, Brakes 54 x 12 Water Circulating. Auxillary Brake: Disc Model 336. Rotary Drive: 752 Independent Electric Drive. Mast: 147` x 1.2 mK (3 Section Free Standing), Crown - 12 Line String for 1 3/8” Wire Line, Adjustable Racking Board, 15,000` x 5` DP, Top Head Drive Rails Included, Mast Hydraulically Raised. Sub Structure: Parallelogram 30` SUB, Independent Rotary Drive for 37 1/2” Table, Rotary Beam for 25` Clear Height (2 ea. x 25T), 1,200,000 lbs. Rotary Capacity. Available Options: Traveling Frame, Substructure, Top Drive, Rotary Drive, Rotary Table, 500 or 650 Ton Block.
