LÖMI GmbH products

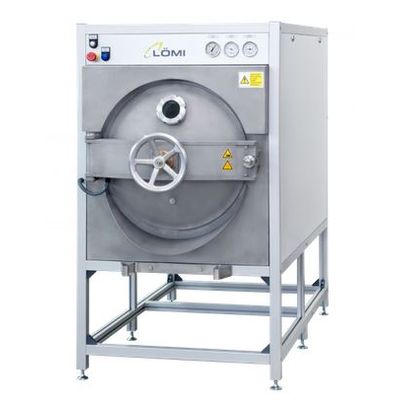

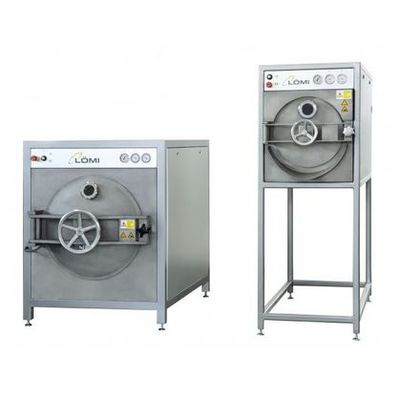

These systems are characterized by extensive standardization and low investment costs with short delivery times. The VDA model series for small distillation rates comes with a horizontal chamber in a compact frame. Systems are available in a volume range from 30 to 250 liters. The VRA model series is designed for medium and large distillation rates. The systems feature a vertical chamber with a stirring device. They are available with volumes from 250 to 4,000 liters.

Profitable from 100 l/day, low investment costs. Short lead time. 250 to 4,000 litres of volume. Fully automatic operation, 24/7.
Advanced clean technology, closed system. Integrated heating and vacuum unit. Water-cooled vapour condenser. Explosion-proof according to ATEX Directive 2014/34/EU. Made in Germany

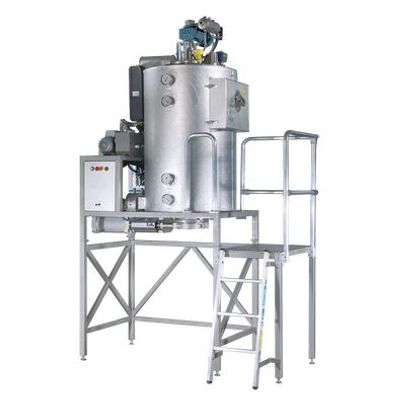

Tailor-made high-end systems that are individually adapted to your process. With comprehensive configuration variations, we can meet any of your requirements. The LRA model series for small distillation rates comes with a horizontal vessel in a compact frame. Systems are available in a volume range from 50 to 250 liters. The RWA model series is designed for medium and large distillation rates. The plants feature a vertical chamber with an agitator. They are available with volumes from 300 to 4,000 liters.

Individually adapted to your process. Comprehensive configuration variations. 300 to 4,000 litres of volume. Fully automatic operation, 24/7. Advanced clean technology, closed system. Integrated heating and vacuum unit. Water-cooled vapour condenser. Explosion-proof according to ATEX Directive 2014/34/EU. Made in Germany.

For small numbers of injection moulded parts, the EDA model series combine debinding, vacuum drying and solvent recovery in one single unit. Powder Injection Moulding (PIM) technologies offer the possibility to produce net shape parts and are recommended for large series of small parts. Additive Manufacturing (AM) is more suitable for the production of small or medium series of parts, while the parts can be larger - up to several kilograms. The process offers improved capacity to produce complex metal parts thanks to greater design freedom.

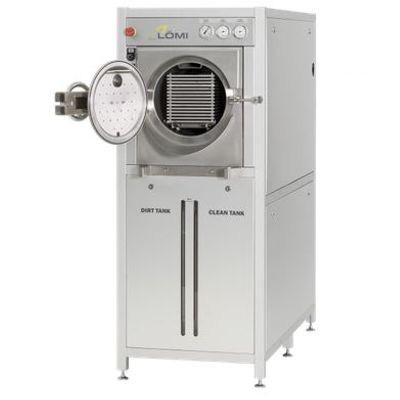

Solvent Tabletop Unit EDA-30 for research, prototyping and small batch production. For small numbers of injection moulded parts, the EDA model series combine debinding, vacuum drying and solvent recovery in one single unit

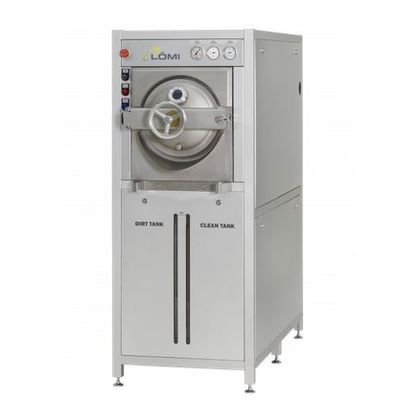

For medium and large numbers of injection moulded parts: EBA model series with a parallelly operated solvent recovery system of MDA model series. Powder Injection Moulding (PIM) technologies offer the possibility to produce net shape parts and are recommended for large series of small parts. Additive Manufacturing (AM) is more suitable for the production of small or medium scries of parts, while the parts can be larger - up to several kilograms. The process offers improved capacity to produce complex metal parts thanks to greater design freedom.

Debinding systems with special process chamber geometry and adapted loading trays, compatible with the sinter furnace series MIM 3000 of Elnik Systems.

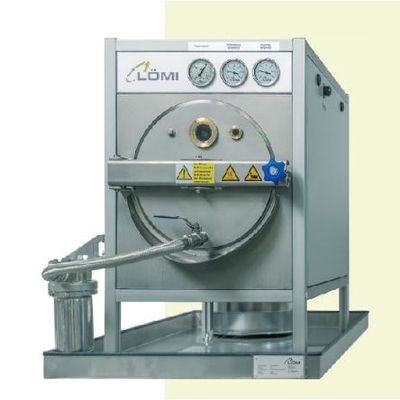

Debinding systems with water extraction process for special feedstocks. They feature a horizontal vessel in a compact housing.

Solvent Debinding EDA-AM model series for Additive Manufacturing AM / Industrial 3D Printing.
