Logiball Inc. products

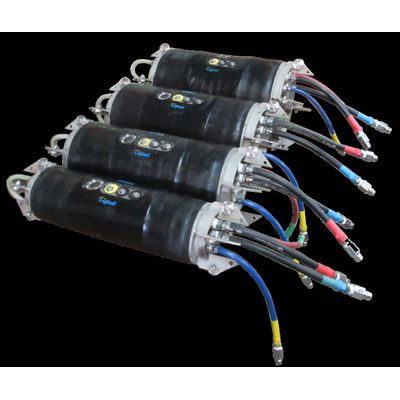

Logiball - Mainline Sewer Packer

Logiball 2001J Mainline Packers are engineered to meet the highest standards for testing and sealing mainline sewer pipe joints using acrylamide, acrylate, or urethane gels. A thick, reinforced SBR rubber sleeve is bonded to the stainless-steel core, with an additional layer of softer rubber applied over the seating area to ensure superior contact and sealing, even against rough surfaces. The smooth exterior finish also helps reduce grout adherence, making post-grouting cleanup easier. Each Logiball 2001J Mainline Packer is equipped with two grout ports and a third dedicated port for the test medium, whether air or water.

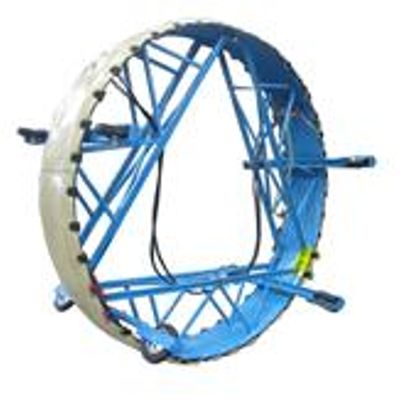

Logiball - Collapsible Mainline Sewer Packers for Injection Grouting

Collapsible Mainline Packers are designed for testing and sealing pipe joints 24 inches and larger. These injection grout packers can be fully dismantled to pass through openings as small as 21 inches in diameter, then quickly reassembled once inside the pipe. A soft natural-rubber sleeve is securely fixed to the support shell, covering both end bladders to ensure optimal seating and sealing, even against rough or irregular surfaces.

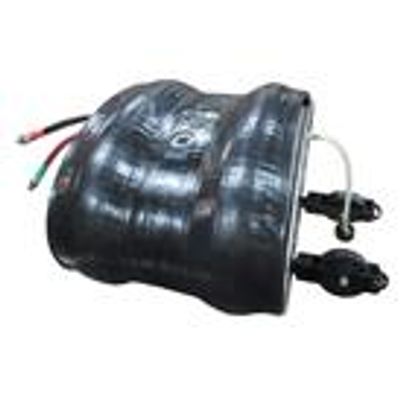

Logiball - Elliptical Mainline Grouting Packers

Logiball Elliptical Mainline test and seal injection packers are custom-made for the exact pipe dimensions and the available access to the storm sewer lines.

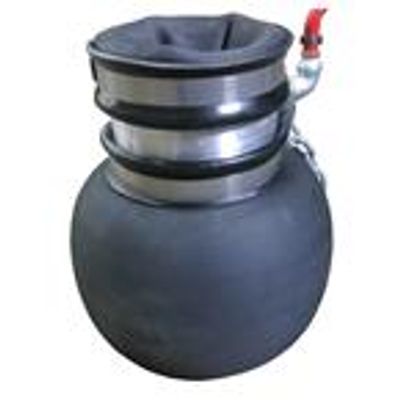

Logiball - Lateral Test and Seal Packers

Logiball 2001L packers are used to test and seal off infiltration in sewer laterals, from the mainline, without any access to cleanouts.

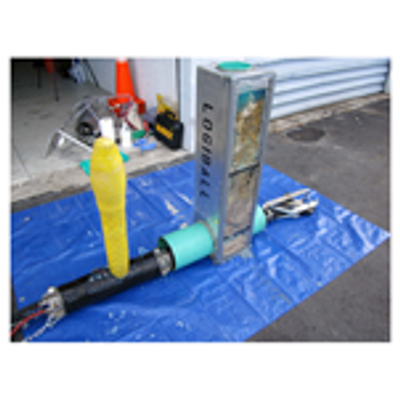

Logiball - Man Entry Pipe Lateral Grouter

Design allows to seal laterals connected to manholes. Injections have been done up to 30 feet. Logiball Man Entry Pipe Lateral Grouter is an inflatable bladder with threaded adapter used to install our standard lateral grouting plugs to seal laterals from a man entry pipe or a manhole. It includes one inflation port for the lateral bladder, one inflation port for the 4″-6″ bladder, two ports for the chemical grout and one void liquid filled pressure sensor line.

Multisize Inflatable Pipe Plugs

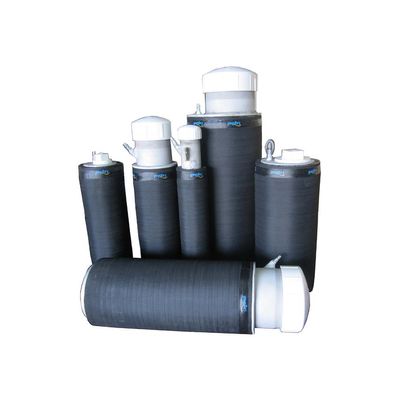

Logiball - Inflatable Pipe Plugs

The Logiball Securimax inflatable pipe plugs are designed with high safety factors such as a two ply cross-biased reinforced SBR rubber sleeve, anchoring device and end plate retaining device for a maximum strength.

Logiball - Inflatable Sewer Plugs

Logiplug inflatable sewer plugs can be used in a wide variety of applications such as by-pass pumping, flow control and flow diversion. Logiplug pneumatic plugs can be used for completely stopping water flow when the flow-thru is plugged off.

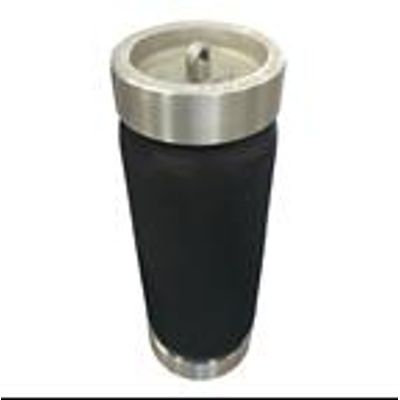

Logiball - Push-Type Cleanout Plugs

Logiball push-type inflatable rubber plugs are available with or without flow-through capability for pipe diameters ranging from 3 to 6 inches. These flexible plugs can be inflated and pushed from the cleanout using the optional semi-rigid hose assembly, allowing for quick and efficient placement.

Logiball - Lightweight Inflatable Plug

Logiball lightweight inflatable type E plugs are your best option for submerged pipes and short sections of pipes. Each plug is factory-tested at the factory at twice the recommended inflation pressure.

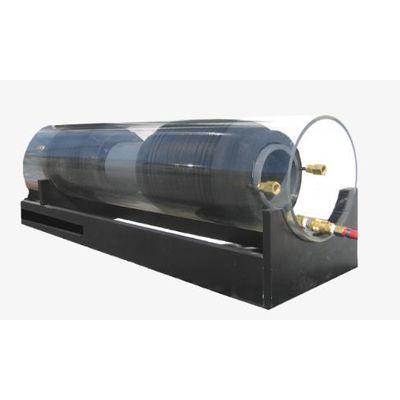

Logiball - Dual Seal Inflatable Plug

Logiball multisize dual-seal inflatable plugs are designed to isolate and test the annular space of dual-containment piping systems. Their donut-shaped profile allows them to easily slide between the carrier pipe and the containment pipe, making them the fastest and most cost-effective solution for low-pressure air testing. Once positioned between the two pipes, the plugs are inflated. This inflation causes the inner rubber wall to press firmly against the outer surface of the carrier pipe, while the outer rubber wall expands to create a tight seal against the inside of the containment pipe. Each unit includes two flow-through ports to insert and monitor the test medium (air) within the isolated annular space between the inflated plugs.
