Logic Beach Inc products

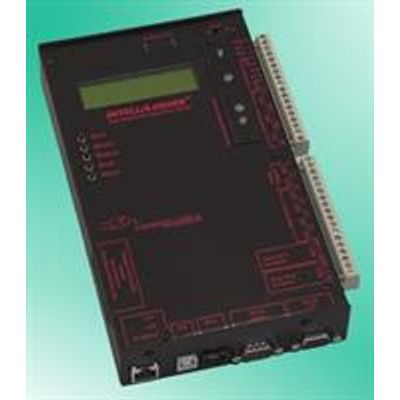

The IntelliLogger IL-10 data logger is a perfect solution for low cost, reduced channel count data acquisition and reporting applications.  The IL-10 data logger is provided with a suite of hardware I/O to meet many basic data logging applications and offers the same  full network communication, reporting and alarming capabilities of the other IntelliLogger models.   The IL-10 differs from the other IntelliLogger data logger models in that it does not have channel expansion capabilities via the addition of hardware Analog or Digital expansion modules… however it can be provided with the Modbus RTU option which allows for data collection from Modbus connected Slave devices.

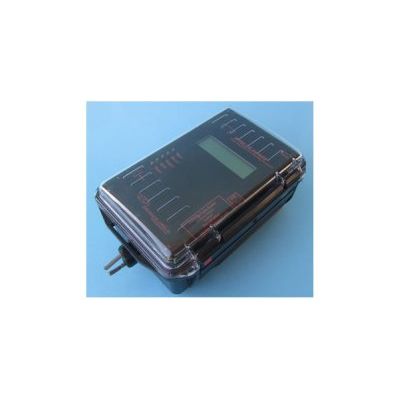

Derived from the powerful industry proven IntelliLogger™ Network Enabled data acquisition, alarming and reporting instrument line, the IntelliLogger IL-Mini™ family offers much of the same capability (excludes Network capability)… for a budget sensitive price.  The IL-Mini is offered two main models… one in a deeper enclosure that includes an internal battery pack for total portability and another model in a shallow enclosure designed to accept external power.

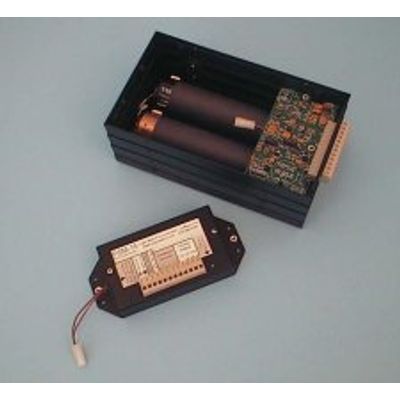

Additional analog (thermocouple, voltage, current) and digital (Event, Frequency, Counter and output) channels can readily be added to IntelliLogger models with the connection of ILIM-7 or ILIM-2 Expansion Modules. Intelliloggers equipped with the BBus port capability (IL-20, IL-80, IL-90) are expanded by simply daisy-chain connecting one or more Expansion Modules. A CAT-5 Ethernet cable is used (provided with the module) for the interconnection and up to 100’ can separate the IntelliLogger and a module.

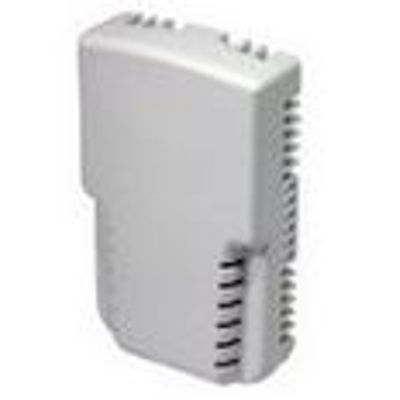

The SRH low profile wall mount humidity sensor offers both humidity and temperature with multiple options for accuracy, temperature and outputs. It features a removable sensor tip, NIST traceability and a durable capacitive sensor that is capable of a 0 to 99% full scale RH measurement and recovery from 100% saturation. The SRH offers accuracies of 2%, 3% and 5% to meet the most stringent HVAC applications. The SRH can be ordered with either a passive (RTD Thermistor) or Active (Analog) temperature output, enabling 2 measurements from the same device.

SRH duct mount humidity sensor offers optional active temperature with choice of 4 to 20 mA or user-selectable 0 to 5 and 0 to 10 VDC output and passive temperature with choice of thermistor or RTD output. The sensor is housed in a polycarbonate 94 V-0, NEMA 4 enclosure making it suitable for harsh environments. The SRH duct mount sensor gives the user the choice of 2%, 3% or 5% RH accurate to meet the requirements of typical HVAC applications. It features a removable sensor tip, NIST tracability and a durable capacitive sensor capable of a 0 to 99% full scale RH measurement and recovery of 100% saturation.

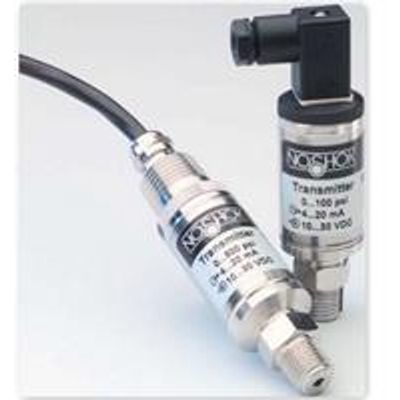

Low cost, rugged pressure transmitter with Vdc or mA output. Multiple Process media fittings and mulitple electrical connection options. Note: This part does not offer Zero and Span calibration adjustment.

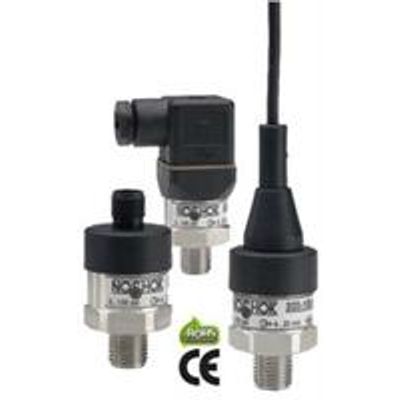

Medium cost, rugged pressure transmitter with loop-powered 4-20mA output. Offers Zero and Span calibration adjustment. Multiple Process media fittings and multiple electrical connection options.
