Lorivan NV products

Execution: Steel pressure vessels for filtration of water and non-corrosive liquids. Carbon steel according EN 10025 or EN 10028. Standard execution as well as made-to-mesure. Standard design pressure 7 bar. Standard temperature -10°C / +50°C. Accessible due to handholes: easy and fast mounting of internals, filling of filtermedia and service.

Execution: Steel pressure vessels for filtration of water and non-corrosive liquids. Carbon steel according EN 10025 or EN 10028. Standard execution as well as made-to-mesure. Standard design pressure 7 bar. Standard temperature -10°C / +50°C. Accessible due to hand- and headholes: easy and fast mounting of internals, filling of filtermedia and service.

Execution :. Steel pressure vessels for filtration of water and non-corrosive liquids. Carbon steel according EN 10025 or EN 10028. Standard execution as well as made-to-mesure. Standard design pressure 6 bar. Standard temperature -10°C / +50°C. Accessible due to big manholes: easy and fast mounting of internals, filling of filtermedia and service. Side Flange-connection : EN1092-1. Pressure calculation code : AD-2000. Conform PED 2014-68-EU-art.4§3, not for pneumatic applications. Standard control : hydrostatic tested + manufacturers certification. Finishing : hot dip- galvanized according EN 1461.

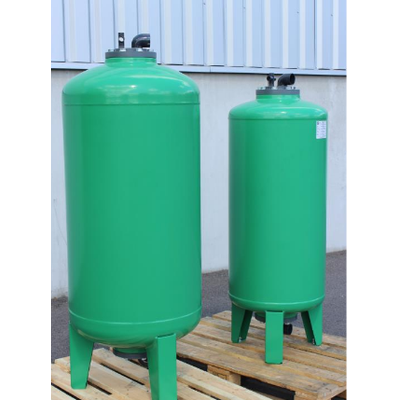

Pressure vessels made of carbon steel with in- and outside a nonporous poly-ethylene lining. Design pressure: 7 bar. Design temperature: 60°C: On demand 100°C. Flangeconnections: DIN28117. Standard color : Green RAL6024, Bleu RAL5015, Conform PED 2014-68-EU-art.4§3. Foodstuff and drinkingwater Approved. Easy and fast mounting of internals.

Execution : Epoxy-coated steel pressure filters : Sandfilters, multi-media-filters, activated carbon filters, ion-exchange.

Execution : Steel tank for water and air. Horizontal or vertical pressure vessel. Design Pressure 6 bar-Test Pressure 8.6 bar. Design Pressure up to 15 bars upon request. Temperature : -10°C / +50°C. Conformity with Pressure Equipment Directive 2014-68-EU (PED). Hot dip galvanized according EN ISO 1461. Horizontal execution : with (universal) pump support or made to mesure.

Execution : Steel tank for water and air GALVA + PE-lining. Approved for potable water. Horizontal or vertical pressure vessel. Design Pressure 8 bar-Test Pressure 12 bar. Temperature : -10°C / +50°C. Conformity with Pressure Equipment Directive 2014-68-EU (PED). Hot dip galvanized according EN ISO 1461 + internally plasticized PE. Horizontal execution : with (universal) pump support.

Execution : Steel tank for hydrophore COMPLETELY PLASTICI1ED - PE-UNING. Approved for pofable water, UV, corrosion and chemical resistant. Vertical pressure vessel for fresh water. Design Pressure 9 bar-Test Pressure 13 bar. Temperature : -10°C / +60°C. Conformity with Pressure Equipment Directive 2014-68-EU (PED).

Execution : Steel pressure tank 110 litres for water. Horizontal execution standard. Standard pressure 4 bar.  Pre-set pressure with air or N ; 1.5 bar. Conformity with PED2014-68-EU Internally and externally Epoxy-coated. Food-grade removable bladder.
