Lothar Becker Agrartechnik GmbH products

The submersible agitators „Turbomix“ are particularly suitable for the homogenization of liquid manure, sewage sludge and biogas substrates.

The submersible agitators are particularly suitable for the homogenization of liquid manure, sewage sludge and biogas substrates.

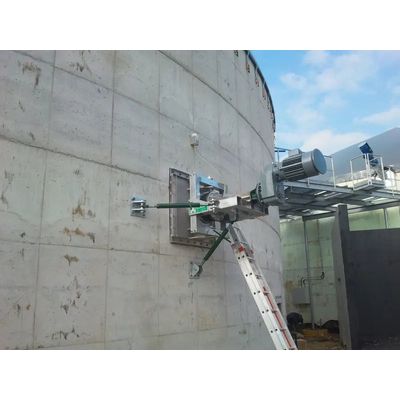

The built-in agitator Fermix is submersible to a depth of up to 25 meters, as a special construction up to 100 meters. Thus it can be installed in any container. Attachment parts for concrete and steel tanks are available.The agitator can be adjusted at an angle of 20°, to the right and the left and as well up and down.This agitator is as well very suitable in combination with large wing mixers. Installation and dismantling can be carried out from the outside without having a person climb into the tank. Fermix is available with a geared motor from 7.5 kW up to 22 kW or with a hydraulic motor. The rotary frequency of the wings is about 300 to 400 RPM, depending on the model.The wetted parts are zinc-coated or made of stainless steel (V2A or V4A).

Insulated steel vessels with installed mixing gearmotor. The wings of the stirrer have bores through which air is blowed into the container. This way the solids in the tank are heated an homogenized.

This gate valve was developed especially for liquids which contain floating substances, e.g. maize remains. These materials may lead to clogging in the ports of brass valves.This does not happen with the valves of the series ‘Gladio’.The gate valve can be applied with rectangular brass valves and circular flanges, thus making them suitable for modification solutions. The gate valve can be operated using a hand lever, a hand wheel or a hydraulic or pneumatic cylinder. Position sensors are available.

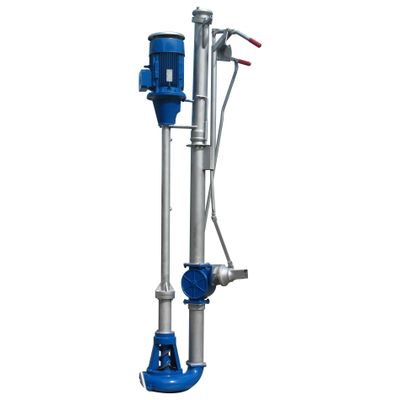

The comminuting pumps for horizontal installation (type ETO) and for vertical installation (type ETV) are intended to chop up solid material sufficiently so that blocking can be prevented for the following operation sequences. The comminuting pumps ETO and ETV are equipped with a cutting device. They are also going under the name ‘chopper pump’.Both types are rotary pumps, featuring a multi-channel impeller which allows to achieve pressures of up to 5 bar.The pumps are set up outside the tank or container and are connected with an inlet pipe.The external installation allows easy access for maintenance.

The pumps are available with or without stirring nozzle. At a pit depth of 3.50 meters , an additional stirring nozzle is advisable. Universal applications; option for a second oil chamber at a pump length of 5 meters. Pumps are as well available in stainless steel (V2A, material no. 1.4301 AISI) at additional charge.
