LTB Lasertechnik Berlin GmbH products

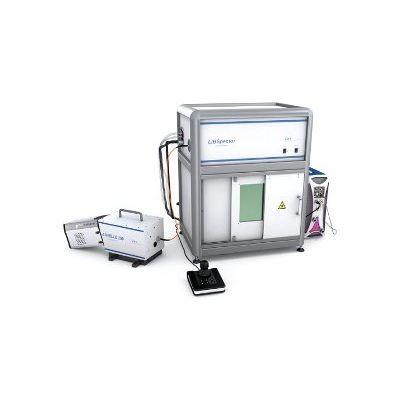

The LIBSlab is a compact and easy to use measuring instrument for the qualitative and quantitative multi-elemental analysis by means of laserinduced breakdown spectroscopy (LIBS). Due to its modular design, the LIBSlab provides individual confi guration options to meet your requirements for a fl exible use of LIBS technology in the scientifi c and industrial sectors.

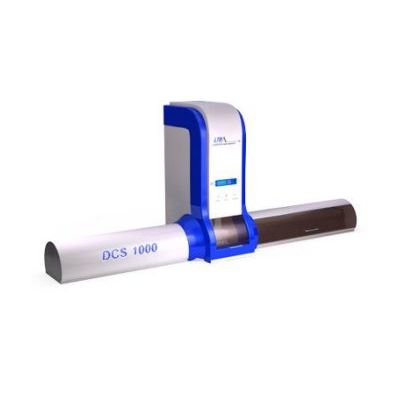

The drilling core scanner DCS 1000 is a module which provides the opportunity of fast elemental analyzing to a large field of users working in mineralogy, exploration and construction engineering. The system consists of a high power Nd:YAG laser, a high-resolution echelle spectrometer, a laser-safe housing with core holder, linear stages, pilot laser and optional video  monitoring. The analyzing approach is laser-induced breakdown spectroscopy. LIBS is an analytical method utilizing laser ablation and the subsequent atomic emission from the plasma for elemental analysis. Laser ablation is at present the only elementanalytical method that offers direct sampling from any kind of material without sample preparation. So LIBS allows a multi-elemental analysis of virtually all types of materials (solids, liquids, gases) through atomic emission spectroscopy.

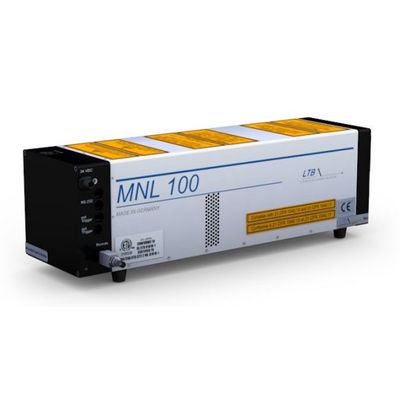

The MNL 100 nitrogen laser from LTB is representing the cutting edge in small compact UV lasers. It does not need an external gas supply. With a total volume of less than 3 litres, it weigths approx. 3.5 kg. Wavelength 337.1 nm. MNL 100High Power up to 225 µJ pulse energy. Extremely long operating life through a sealed discharge cartridge in metal-ceramic technology. High precision through a directly switching solid state power switch. Warranty 60 million pulses (Long Life Version: 120 million pulses). Patented. Certifications: CE, ETL-Report No. 05KFI005386 (UL, CSA, VDE, Semco), ROHS, FDA. Compatible with VSL337i OEM, VSL-337-ND.

The most compact and cost-efficient UV-VIS-NIR echelle spectrometer of LTB’s ARYELLE series with a focal length of 150 mm and 2 kg weight without detector – suitable for reliable and portable LIBS and Raman applications.

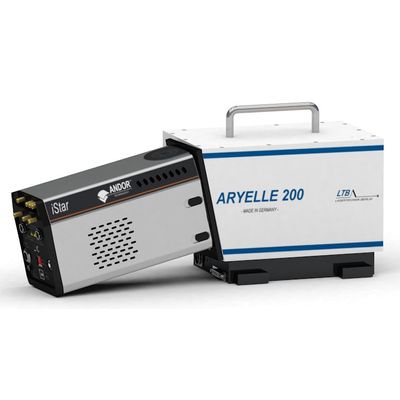

The perfect compromise between high spectral resolution, size and price – the UV-VIS-NIR wide-range echelle spectrometer ARYELLE 200 with 200 mm focal length for LIBS and Raman spectroscopy.

The flagship of ARYELLE echelle spectrometer series with very high spectral resolution in the VUV or UV-VIS-NIR wide-range with 400 mm focal length – for precise elemental analysis with LIBS and Raman spectroscopy.

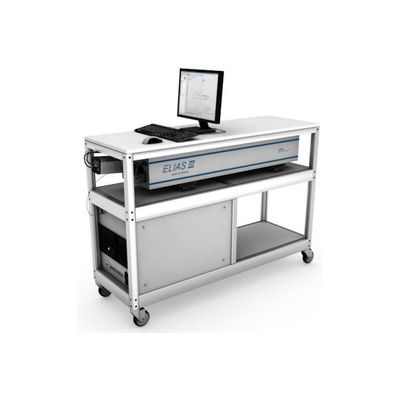

High spectral resolution Double Echelle Monochromator series in Littrow configuration for the measurement of emission and absorption lines from the UV up to the NIR range.

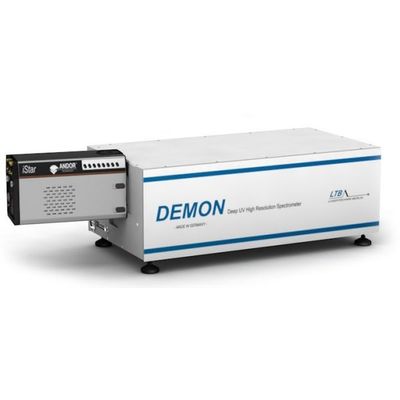

World’s leading commercial echelle spectrometer series in Littrow configuration with highest spectral resolution – for highly resolving spectral characterization of emission and absorption lines in particular for excimer laser lithography.

Fully automated LIBS analyzer for the fast classification of pure fractions in industrial recycling of scrap metals.

The CORALIS system unites the two high complementary techniques LIBS and RAMAN. By means of a high-quality sample image, pre-selected measurement positions are analysed either with Raman or LIBS or with both methods sequentially. The unique two-wing echelle spectrometer as core part is able to provide high resolution, large range and high light-throughput on an unbeatable level. The laser-safe housing and the integrated interlocking circuit ensure user-friendly handling of the device and
protection of the installed components.
