The VF series can operate at 24 to 240 V AC or 12 to 240 V DC, which makes it suitable for supply voltages all over the world.

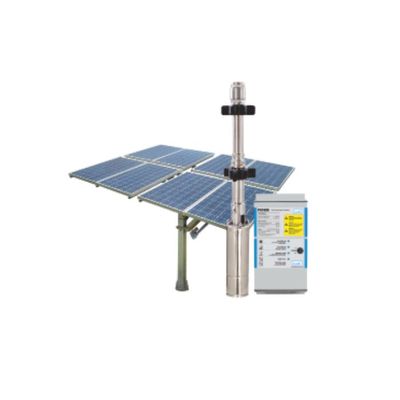

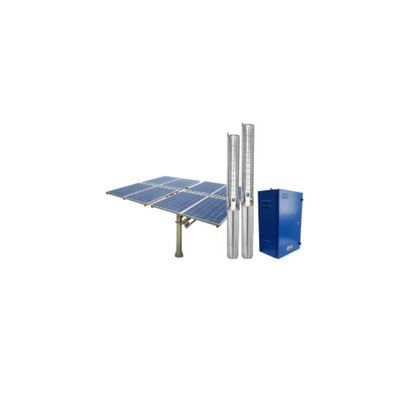

RANGE OF PERFORMANCE: Maximum flow : 540m3/day, Maximum head : 463 mtr, Rating : 0.5Hp to 20Hp(0.37kW to 15kW). OPERATING CONDITIONS: Ambient temperature : +50°C, Liquid temperature : 0°C to +80°C, Water pH : 6.5 – 8, Sand content : 25g/m3. FEATURES & BENEFITS: Highly energy efficient submersible solar water pump with energy efficient inverter duty motor, High efficiency solar photovoltaic panels with a service life of minimum 20 years, Robust design Galvanized steel mounting structure for long life, High technology automatic controller with dynamic MPPT(maximum power point tracking) control method., The controller offers complete protection against under and over voltage and dry run protection for the pump, Highly efficient controller with a conversion efficiency of 98%, The controller is tropicalized to operate satisfactorily with an ambient temperature of up to 50°C

RANGE OF PERFORMANCE: Maximum flow : 265 m3/day, Maximum head : 463 metres. Rating : 0.5 hp to 5.0 hp (0.37 kW to 3.7 kW), OPERATING CONDITIONS : Ambient Temperature : +50°C , Liquid Temperature Range : 0°C to +80°C, Water pH : 6.5 - 8 , Sand Content : 25 g/m3. FEATURES & BENEFITS: State-of-the art design, Highly energy efficient submersible solar water pump with energy efficient inverter duty motor, High efficiency solar photovoltaic panels with a service life of minimum 20 years, Robust design Galvanized steel mounting structure for long life, High technology automatic controller with  dynamic MPPT (Maximum  Power Point Tracking) control method, The Controller offers complete protection against under and over voltage and dry run protection for the pump, Highly efficient controller with a conversion efficiency of 98%, The controller is tropicalized to operate satisfactorily with an ambient temperature of up to 50°C

RANGE OF PERFORMANCE: Max. total dynamic head (TDH) [m] : 150, Max. flow rate [m3/h] : 1.2, OPERATING CONDITIONS: Max. power voltage (Vmp)* : >102, Open circuit voltage (Voc) : 200, Pump end, motor: water temperature up to +40°C (+104°F), Specify temperature range on order, Controller: ambient temperature -30°C to +55°C (-22°F to +131°F). FEATURES & BENEFITS: State-of-the art design, Material : Stainless Steel (AISI 304, 316, Rubber) pump construction., ECDRIVE brushless DC motors, designed for solar, with over 90% efficiency., High technology automatic controller with dynamic MPPT, (Maximum Power Point Tracking) control method to maximize power use from PV modules., High reliability and life expectancy, Designed for use in remote and harsh conditions, Simple and easy installation, Cost efficient pumping, Easy and cost effective serviceability, Very strong ROI against diesel powered pumping systems which reduces production costs and carbon foot print

RANGE OF PERFORMANCE:- Power range : 0.75~190kW, Output frequency : 0~300Hz. Input voltage range : DC 150V~380V, lPhase AC220V, DC 200V~380V, 3Phase AC220V, DC 350V~750V, 3Phase AC380V. FEATURES & BENEFITS: Suitable for 3 phase PMSM(DC) high efficient motor, Built-in high precision PV array maximum power point tracking MPPT algorithms, Dry running mode monitoring, treatment, Tank water level control, LED displays the real time situation and the parameters like Output Frequency, DC voltage, kW, kWh & Output Current, Built in automatic sleep-wake up function, Based on RS485 real time remote control system, Fast installation design, no need extra maintenance, Built-in full protection and diagnostic mechanism, Overload capability : 150% of rated current for 60 sec., IP54 Controller, MNRE approved,

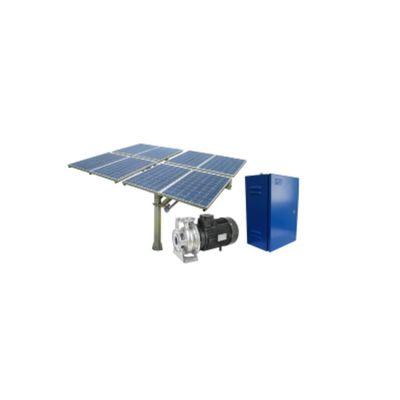

RANGE OF PERFORMANCE:- Maximum flow : 780 m3/day, Maximum head : 57 metres. Rating : up to 30 HP. OPERATING CONDITIONS :- Ambient temperature : +50°C, Liquid temperature range : 0°C to +80°C, Water pH : 6.5 - 8, Sand content : 25 g/m3. FEATURES & BENEFITS: Highly durable Stainless Steel construction of pump end, Highly energy efficient centrifugal water pump with energy efficient inverter duty motor, High efficiency solar photovoltaic panels with a service life of minimum 20 years, Robust design Galvanized steel mounting structure for long life, High technology automatic controller with  dynamic MPPT (Maximum  Power Point Tracking) control method, The controller offers complete protection against under and over voltage and dry run protection for the pump, Highly efficient controller with a conversion efficiency of 98%, The controller is tropicalized to operate satisfactorily with an ambient temperature of up to 50°C

RANGE OF PERFORMANCE: Maximum flow : 780 m3/day, Maximum head : 57 metres, Rating : up to 5 HP. OPERATING CONDITIONS: Ambient temperature : +50°C, Liquid temperature range : 0°C to +80°C, Water pH : 6.5 - 8, Sand content : 25 g/m3. FEATURES & BENEFITS: Highly durable Stainless Steel construction of pump end, The high efficient DC motor is designed According to the permanent magnet principal with separate electronics unit, The permanent magnet motor featuring a consistent higher efficiency within power range compared to a conventional asynchronous motor, High efficiency solar photovoltaic panels with a service life of minimum 20 years, Robust design Galvanized steel mounting structure for long life, High technology automatic controller with  dynamic MPPT (Maximum  Power Point Tracking) control method, The controller offers complete protection against under and over voltage and dry run protection for the pump.

FZ-10 incorporates red, green and blue LEDs as its beam sources, which promise longer lifetime and greater immunity against extraneous light than incandescent lamps and are also maintenance free.
