LUMINOR Environmental Inc. products

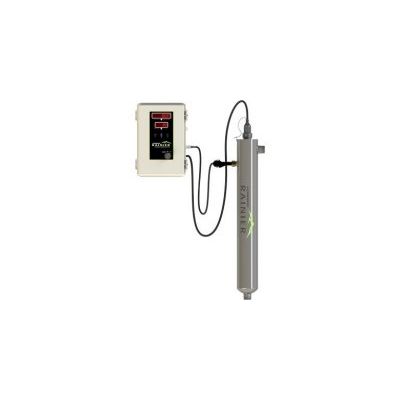

LUMINOR"s RAINIER6.0 model is feature laden and includes a discrete 254nm Teflon™-based UV sensor and integral 4-20mA output and solenoid ready capabilities. Manufactured from 316L stainless steel, these pressure vessels are designed & manufactured to ASME standards and are axial flow for optimal fluid flow. Without the need to drain the UV reactors, sleeve servicing is a simple operation. A bayonet style lamp connector allows for easy lamp change without the need for additional tools. For increased power density, RAINIER incorporates high quality low pressure, high-output (LP-HO) coated UV lamps offering a consistent output over their 10,000 hour life. Monitoring is provided through an integral LED display which in addition to the UV output, displays remaining lamp life, total running hours, audible & visual lamp failure and remote-on. Packaged with constant current electronic ballasts and housed in a splash-proof case, flow rates of 100 & 160 lpm (25 & 40 gpm), in both 120V or 230V applications, are offered in this product line.

LUMINOR`s RAINIER^5.0 model is designed with upgradeability in mind. The reactor comes with an integral UV sensor port that will accept the addition of an optional UV sensor module at a future date. If a monitor is not required, an integral visual glow plug is provided as an extra way to ensure that your UV lamp is illuminated. Manufactured from 316L stainless steel, these pressure vessels are designed & manufactured to ASME standards.

LUMINOR"s K25.0 model is designed with upgradeability in mind. The reactor comes with an integral UV sensor port that will accept the addition of an optional UV sensor module at a future date.

For the ultimate in higher flow rates, then LUMINOR`s BLACKCOMB-HO<sup>6.0</sup> line of `Residential Crossover` UV systems should be your choice. Installed in a large residence or in a light commercial application, continuous UV monitoring is provided by the inclusion of a true 254nm discrete UV monitor. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging. A colour user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up.

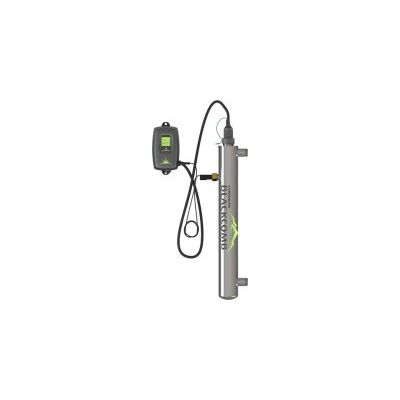

Looking for a feature-laden premium UV system, then LUMINOR`s Blackcomb<sup>5.0</sup> line of residential UV systems should be your choice. In looking at this line, one easily sees how this product is truly different from everything else in the market. Blackcomb`s state-of-the-art 5.0 series controller is a constant current electronic power source housed in a splash-proof case and comes standard with a `future-proof` expandability port for future upgrades or options. A colour user interface allows for easy visual identification of remaining lamp life and any error or fault codes.

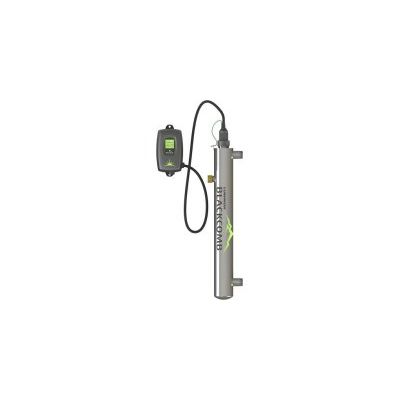

For the ultimate in residential UV disinfection, LUMINOR`s Blackcomb6.0 line should be your choice. Incorporating a true 254nm discrete UV monitor, this Blackcomb series offers the ultimate in continuous monitoring for 24 hour peace-of-mind. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging. A colour user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The system even incorporates QR codes to access lamp change information and videos via web access. The controller is a constant current electronic power source and is housed in a splash-proof case that comes standard with a “future-proof” expandability port for future upgrades or options.

With system flow rates of 5, 10, 15, 25 and 40 gpm (15, 38, 53, 95 & 151 lpm), LUMINOR`s BLACKCOMB-HO<sup>4.0</sup> is classified as a `Residential Crossover` product. Not only would this product bode well in a large custom home or lodge, but it could also be used in many of those same applications as is outlined in the light commercial market segment. Simplicity and ease of operation were the fundamental design criteria in the creation of Blackcomb-HO.

Looking for a feature-laden premium UV system in higher flow rates, then LUMINOR`s BLACKCOMB-HO<sup>5.0</sup> line of `Residential Crossover` UV systems should be your choice. Equally comfortable installed in a large custom residence or a light commercial application such as a campground, this product is truly different from everything else in the market. Blackcomb-HO`s state-of-the-art 5.0 series controller is a universal input, constant current electronic power source housed in a splash-proof case and comes standard with a `future-proof` expandability port for future upgrades or options. A colour user interface allows for easy visual identification of remaining lamp life and any error or fault codes.

LUMINOR"s K25.0 model is designed with upgradeability in mind. The reactor comes with an integral UV sensor port that will accept the addition of an optional UV sensor module at a future date.

LUMINOR"s K26.0 model includes a discrete 254nm Teflon™-based UV sensor and integral 4-20mA output and solenoid ready capabilities.
